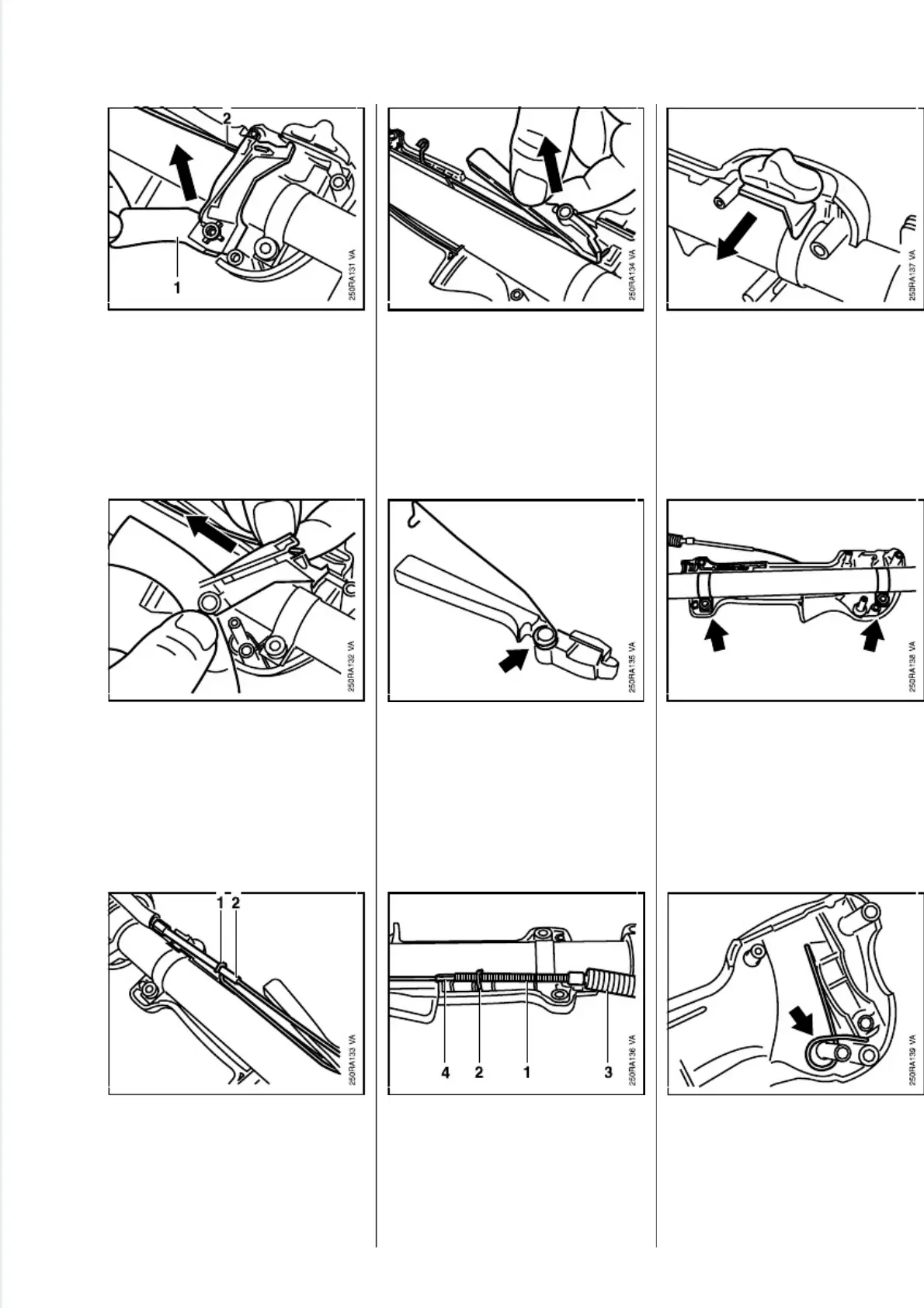

Pull throttle trigger (1) with
throttle cable (2) off the peg.
•
Disconnect throttle cable from
trigger.
•
Lift contact spring (1) a little and
remove the throttle cable (2).
•
Pull interlock lever with contact
spring off the peg.
•
Remove contact spring from
interlock lever.
Assemble in the reverse
sequence.
•
Check positions of throttle cable
(1), contact spring (2), protective
tube (3) and insulator (4).
- Tighten screws to 1.0 Nm
(0.75 lbf.ft).
- Remove the interlock lever -see
7.3.
•
Pull slide control off the handle
molding.
•
Remove screws from clamps.
- Take handle molding off the dri-
ve tube.
•
Remove torsion spring from peg.
7.4 Slide Control
(Loop Handle)
FS 120, 200, 300, 350, 400, 450, FR 350, 450 35

Stihl FS 120 Specifications

General

Power source	Gasoline
Type	Brush cutter
Cordless	Yes
Head type	Nylon line
Handle type	U-type handle
Engine power	1.8 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Sound power level	110 dB
Fuel tank capacity	0.64 L
Vibration emission	4.9 m/s²
Engine displacement	30.8 cm³
Sound pressure level	98 dB
Cutting diameter (max)	- mm

Weight and Dimensions

Length	1760 mm
Weight	6300 g
