English 10 LED Diagnostics and Acoustic Signals
Operate the charger only indoors, in dry rooms and within an
ambient temperature range of 41 °F to 104 °F (5 °C to
40 °C).
The battery heats up during operation of the power tool. If a
hot battery is connected to the charger, it may be necessary
for it to cool down before charging starts. The charging
process begins only after the battery has cooled down
sufficiently.
Charging time depends on a number of factors, including
battery condition and the ambient temperature. For a
complete list of approximate charging times, see
www.stihl.com/charging-times.

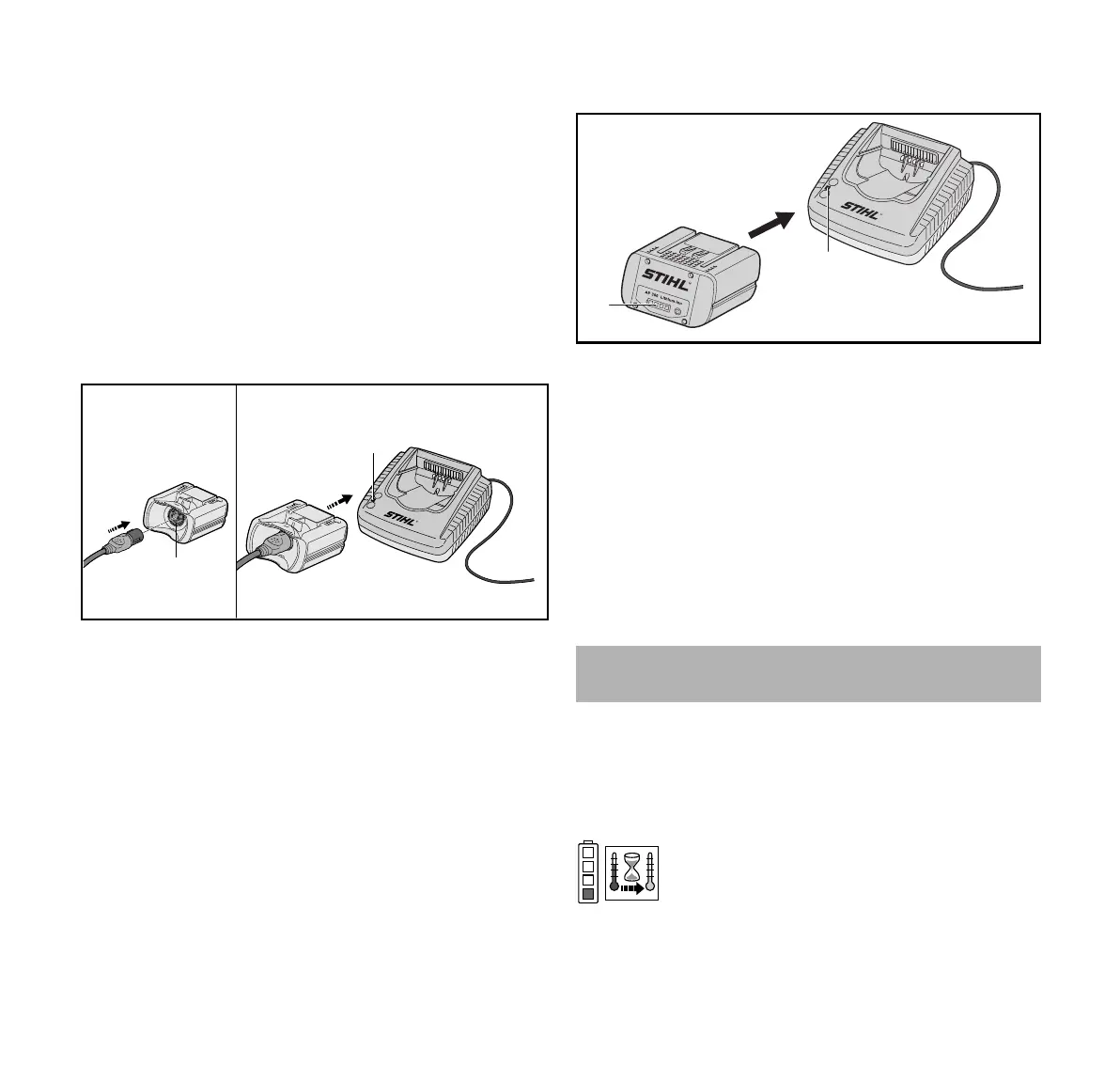

To charge an AR battery:
► Push the plug of the connecting cord (1) into the
socket (2) of the AP Adapter (3) until it stops.
► Push the AP Adapter into the charger (5) until it stops.
The LED on the charger (4) glows green when the battery
is charging.
The LEDs on the AR battery glow green and show the
state of charge.
When the LEDs on the battery turn off, the charging
process is complete and the charger will shut itself off. The
AP Adapter can be removed from the charger.
► Disconnect the power supply cord from the electrical
outlet when the charger is not in use.
► Charge STIHL AR backpack batteries only with genuine
STIHL AL 300 or AL 500 series chargers.
To charge an AP battery:
► Push the battery (2) into the charger (3) until it stops.
The LED on the charger glows green when the battery is
charging.
The LEDs (1) on the AP battery glow green and show the
state of charge.
When the LEDs on the battery go out, the charging
process is complete and the charger will shut itself off. The
AP battery can be removed from the charger.
► Disconnect the power supply cord from the electrical
outlet when the charger is not in use.
► Charge STIHL AP series batteries only with genuine
STIHL AL 101, AL 300 or AL 500 series chargers.
10.1 STIHL AP Battery
10.1.1 Battery Status
Four LEDs show the status of the battery. These LEDs can
glow or flash green or red.
3
2
1
0000-GXX-2680-A0
3
45
10 LED Diagnostics and Acoustic Signals
If one LED glows red continuously: the battery is
either too hot or too cold. Allow the battery to
warm up or cool down gradually at an ambient
temperature of about 50 °F to 68 °F (10 °C to
20 °C).
1
2
3
4
0000-GXX-3918-A0

Stihl FSA 86 R Specifications

General

Type	String trimmer
Cordless	Yes
Head type	Nylon line
Handle type	D-loop handle
Product color	Black, Orange, White
Uncertainty K	2 m/s²
Sound power level	91 dB
Vibration emission	3.7 m/s²
Sound pressure level	77 dB
Cutting diameter (max)	350 mm
Power source	Battery
Battery voltage	36 V

Weight and Dimensions

Length	1720 mm
Weight	3200 g
