Stihl FSA 86 R User Manual

0458-833-8221-A
21
English 11 Assembling the Trimmer

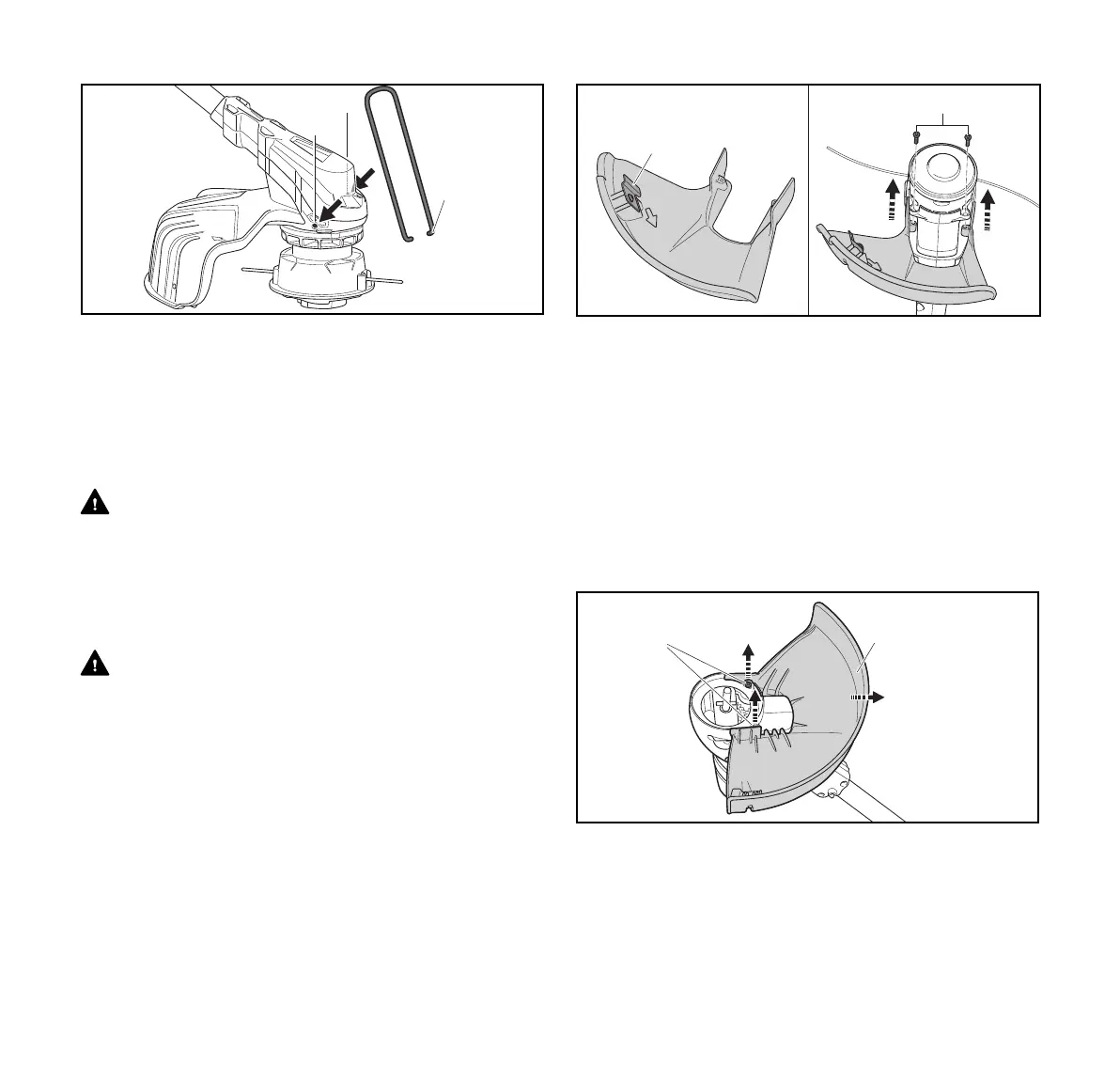

► Insert the ends of the bump guard (1) into the holes (2) in
the housing.
The bump guard does not have to be removed again.
11.3 Mounting and Removing a Deflector
11.3.1 Mounting the Deflector
WARNING
To reduce the risk of injury from thrown objects or contact
with the cutting attachment, never operate the trimmer
without a properly mounted deflector. Keep bystanders at
least 50 ft. (15 m) away. When using a deflector designed
for use with a PolyCut mowing head, you must change the
deflector before mounting the mowing head.
WARNING
The cutting attachment and deflector must be an approved
combination. Use only an approved combination of cutting
attachment and deflector to maximize cutting performance
and reduce the risk of serious personal injury from thrown
objects or contact with the cutting attachment, @ 24.1.
To mount the deflector:
► Switch off the trimmer, @ 14.2.
► Remove the battery, @ 13.2.
► Push the deflector (2) into the guides on the housing until
it stops.
The deflector must be tight against the housing.
► Insert and tighten the screws (3).
The line limiting blade (1) comes mounted in the deflector
and may not be removed.
11.3.2 Removing a Deflector
To remove a deflector:
► Switch off the power tool, @ 14.2.
► Remove the battery, @ 13.2.
► Remove the screws (2).
► Remove the deflector (1)
1
2
2
0000097550_001
1
3
2 2
0000-GXX-1486-A1
2
1
0000-GXX-9914-A0

Stihl FSA 86 R Specifications

General

Type	String trimmer
Cordless	Yes
Head type	Nylon line
Handle type	D-loop handle
Product color	Black, Orange, White
Uncertainty K	2 m/s²
Sound power level	91 dB
Vibration emission	3.7 m/s²
Sound pressure level	77 dB
Cutting diameter (max)	350 mm
Power source	Battery
Battery voltage	36 V

Weight and Dimensions

Length	1720 mm
Weight	3200 g
