0458-833-8221-A
20
English
11 Assembling the Trimmer
10.2.2 Power Tool Status
When the battery is connected to the power tool, the same
LEDs on the battery will indicate the status of the power tool.
If three LEDs glow red continuously: the power tool motor is
too hot. Allow the motor to cool down.
If three LEDs flash red when you activate the trigger switch:
the power tool has an electrical malfunction. Do not operate
the power tool. Have it checked by an authorized STIHL
servicing dealer before use or storage.
For troubleshooting information, @ 22.
10.2.3 Charge Status
The LEDs and acoustic signals on the battery also indicate
the battery's state of charge.

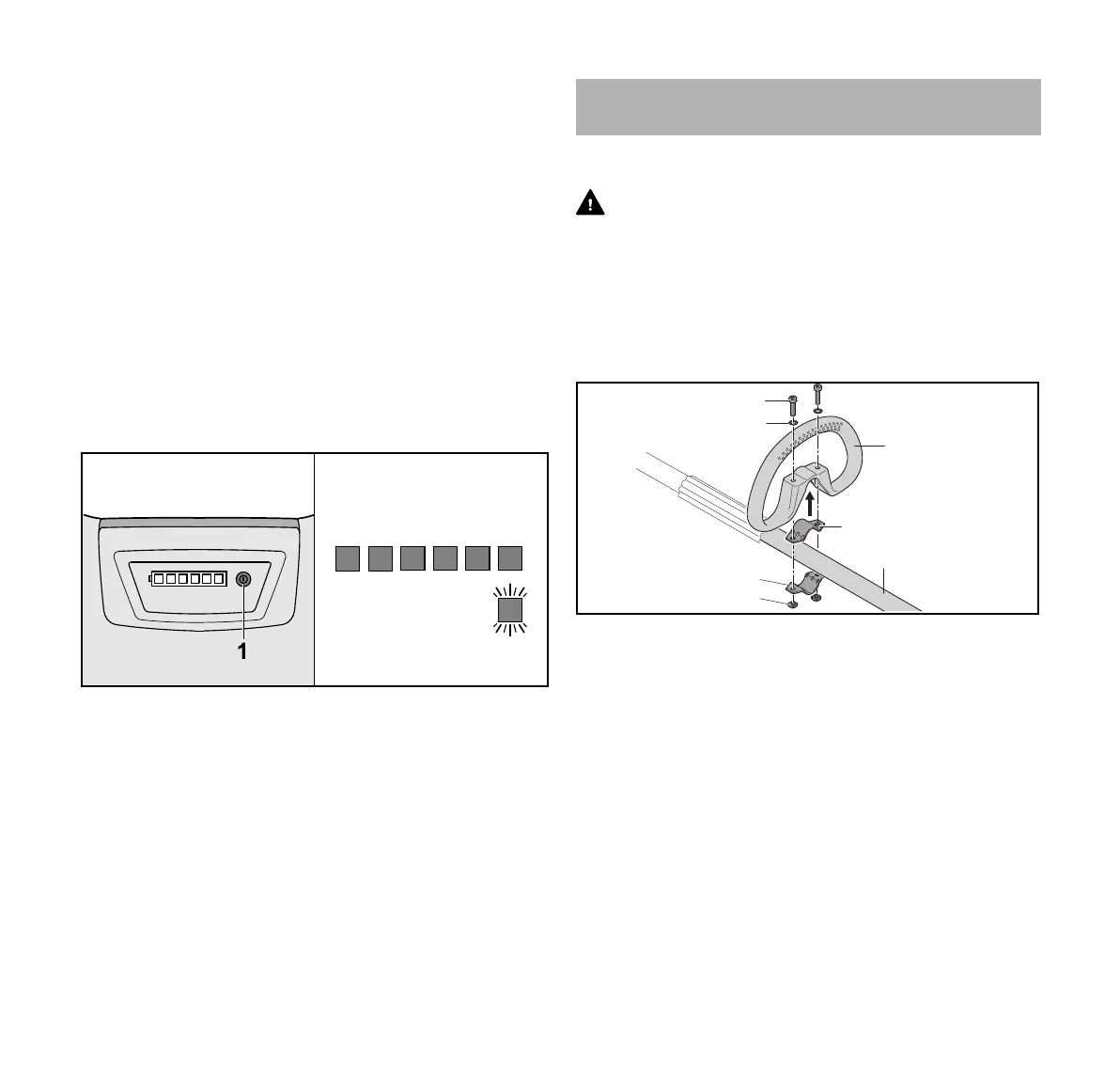

To determine the battery's state of charge:
► Press the button (1) on the backpack battery.
A single short beep will be emitted. The LEDs on the battery
will glow or flash green for about 5 seconds and indicate the
state of charge (see illustration).
For example:
If six green LEDs glow continuously: full charge.
If one green LED is flashing and four long beeps are emitted:
less than 20 % charge.
11.1 Mounting the Loop Handle
WARNING
To reduce the risk of injury from loss of control, ensure that
the loop handle is properly and securely mounted before
starting work.
To mount the loop handle:
► Switch off the power tool, @ 14.2.
► Remove the battery, @ 13.2.
► Position one clamp (4) in the loop handle (3).
► Position the other clamp (6) against the underside of the
drive tube (5) and line up the holes in the loop handle and
clamps.
► Put washers (2) on the screws (1) and insert the screws
through the holes in the loop handle and clamps.
► Attach the square nuts (7) and tighten securely. Ensure
that the handle is tight and will not move during operation.
11.2 Mounting the Bump Guard
To mount the bump guard:
► Switch off the power tool, @ 14.2.
► Remove the battery, @ 13.2.
0000-GXX-2673-A0
100 % 0 %
11 Assembling the Trimmer
5
4
6
7
1
2
3
0000097536_001
