Stihl FSA 86 R User Manual

0458-833-8221-A
23
English 12 Adjusting the Trimmer
► Position the unit so that you are facing the underside of
the deflector and the drive shaft is pointed upwards.

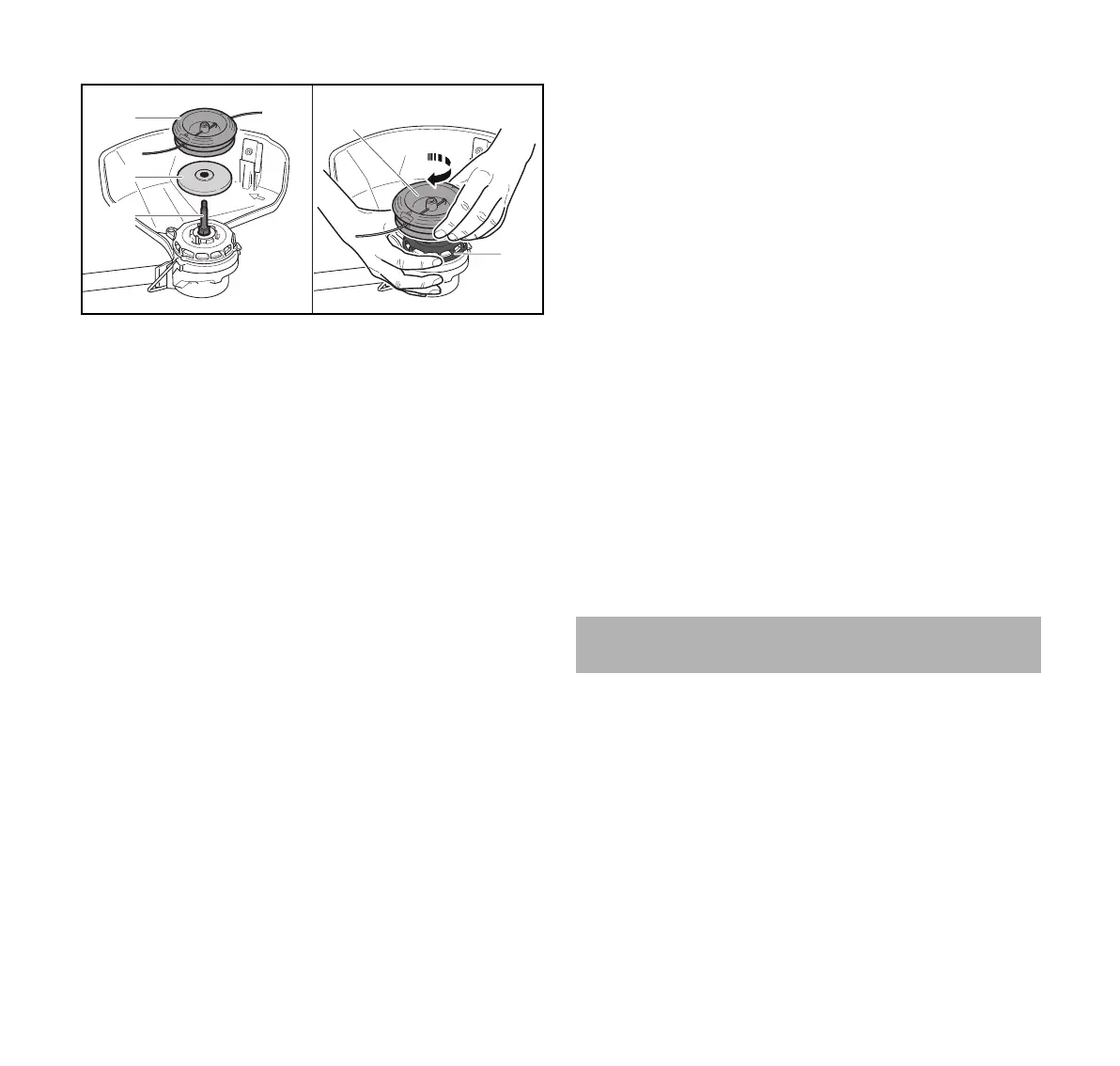

► Slip the thrust plate (2) onto the drive shaft (3), keeping
the side of the thrust plate with the smaller diameter facing
upwards toward the mowing head (1).
► By hand, screw the mowing head (1) clockwise onto the
drive shaft while holding the fan wheel (4) with your other
hand.
► Continue screwing down the mowing head until it is
securely attached.
NOTICE
Using the trimmer with overly long trimmer line increases the
load on the motor and reduces its operating speed. This may
result in overheating and damage to important components.
11.4.2 Removing a Mowing Head
Mowing head AutoCut C 6-2
To remove a AutoCut C 6-2 mowing head:
► Switch off the power tool, @ 14.2.
► Remove the battery, @ 13.2
► Position the unit so that you are facing the underside of
the deflector and the drive shaft is facing upwards.
► Block the rotation of the drive shaft by holding the mowing
head with your hand.
► Unscrew the mowing head by turning the cap
counterclockwise.
Mowing head PolyCut 6-2
To remove a PolyCut 6-2 mowing head:
► Switch off the power tool, @ 14.2.
► Remove the battery, @ 13.2
► Position the unit so that you are facing the underside of
the deflector and the drive shaft is facing upwards.
► Block the rotation of the drive shaft by holding the mowing
head with your hand.
► Unscrew the mowing head by turning the upper part
counterclockwise.
Mowing head DuroCut 5-2
To remove a DuroCut 5-2 mowing head:
► Switch off the power tool, @ 14.2.
► Remove the battery, @ 13.2
► Position the unit so that you are facing the underside of
the deflector and the drive shaft is facing upwards.
► Block the rotation of the drive shaft by holding the fan
wheel with your hand.
► Unscrew the mowing head by turning it counterclockwise.
► Remove the thrust plate.
12.1 Adjusting the Loop Handle
The loop handle can be mounted to suit the height and reach
of the operator.
To adjust the position of the loop handle:
► Switch off the power tool, @ 14.2.
► Remove the battery, @ 13.2.
1
4
1
2
3
0000097552_001
12 Adjusting the Trimmer

Stihl FSA 86 R Specifications

General

Type	String trimmer
Cordless	Yes
Head type	Nylon line
Handle type	D-loop handle
Product color	Black, Orange, White
Uncertainty K	2 m/s²
Sound power level	91 dB
Vibration emission	3.7 m/s²
Sound pressure level	77 dB
Cutting diameter (max)	350 mm
Power source	Battery
Battery voltage	36 V

Weight and Dimensions

Length	1720 mm
Weight	3200 g
