Stihl FSA 86 R User Manual

0458-833-8221-A
22
English 11 Assembling the Trimmer
11.4 Mounting and Removing a Mowing Head
11.4.1 Mounting a Mowing Head
WARNING
Use of wire or metal-reinforced line is not authorized and
could be extremely dangerous. Use only the cutting
attachments recommended in this manual, in combination
with the recommended deflector, @ 5.6.4.
WARNING
A damaged or loose cutting attachment or mowing head may
vibrate, crack, break or come off the trimmer which may
result in serious or fatal injury or property damage. Make
sure the mowing head and cutting attachment are properly
tightened and in good condition before starting work,
@ 5.6.4.

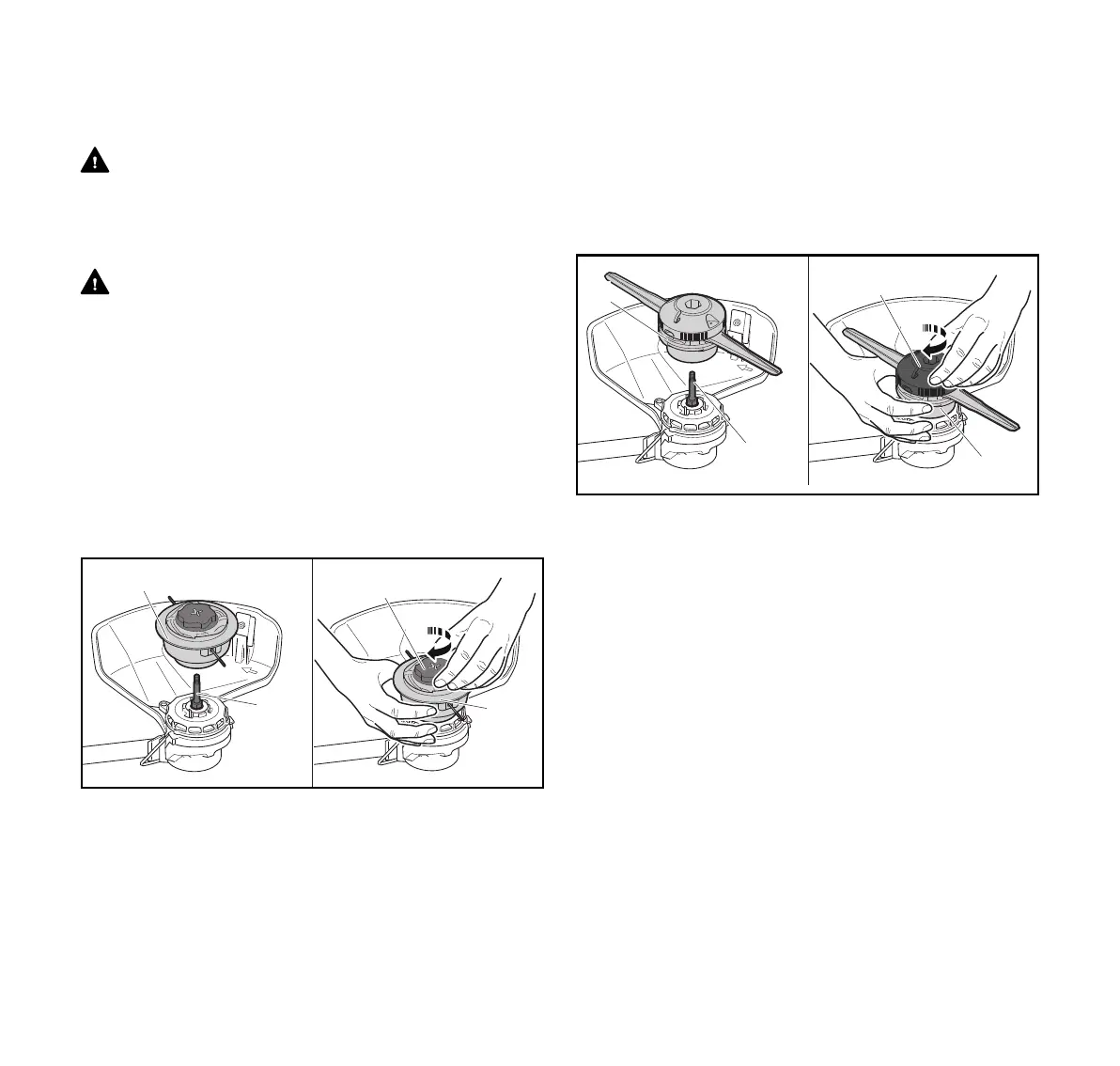

Mowing head AutoCut C 6-2
To mount a AutoCut C 6-2 mowing head:
► Switch off the trimmer, @ 14.2.
► Remove the battery, @ 13.2.
► Position the unit so that you are facing the underside of
the deflector and the drive shaft is pointed upwards.
► Slip the mowing head (1) onto the drive shaft (2).
► By hand, screw the cap (3) clockwise onto the drive
shaft (2) while holding the mowing head (1) with your
other hand.
► Continue screwing down the cap until it is securely
attached.
Mowing head PolyCut 6-2
To mount a PolyCut 6-2 mowing head:
► Switch off the trimmer, @ 14.2.
► Remove the battery, @ 13.2.
► Position the unit so that you are facing the underside of
the deflector and the drive shaft is pointed upwards.
► Slip the mowing head (1) onto the drive shaft (2).
► By hand, screw the upper part (3) clockwise onto the drive
shaft while holding the mowing head (1) with your other
hand.
► Continue screwing down the upper part until it is securely
attached.
Mowing head DuroCut 5-2
To mount a DuroCut 5-2 mowing head:
► Switch off the trimmer, @ 14.2.
► Remove the battery, @ 13.2.
3
1
2
1
0000097534_001
3
1
2
1
0000097546_001

Stihl FSA 86 R Specifications

General

Type	String trimmer
Cordless	Yes
Head type	Nylon line
Handle type	D-loop handle
Product color	Black, Orange, White
Uncertainty K	2 m/s²
Sound power level	91 dB
Vibration emission	3.7 m/s²
Sound pressure level	77 dB
Cutting diameter (max)	350 mm
Power source	Battery
Battery voltage	36 V

Weight and Dimensions

Length	1720 mm
Weight	3200 g
