4 Safety Symbols on the Products
6 Retaining Latch
Locks/unlocks the trigger switch.
7 Loop Handle
Handle for the operator's front hand.
8Drive Tube
Trimmer shaft.
9 Bump Guard
Limits the cutting range of the mowing line.
10 Battery LEDs
Indicate the battery's state of charge and display error
messages regarding potential malfunctions in the battery
or power tool.
11 Push Button
Activates the battery's LEDs.
12 Battery
Supplies electrical power to the motor.
# Rating Plate
Contains electrical information and the product's serial
number.

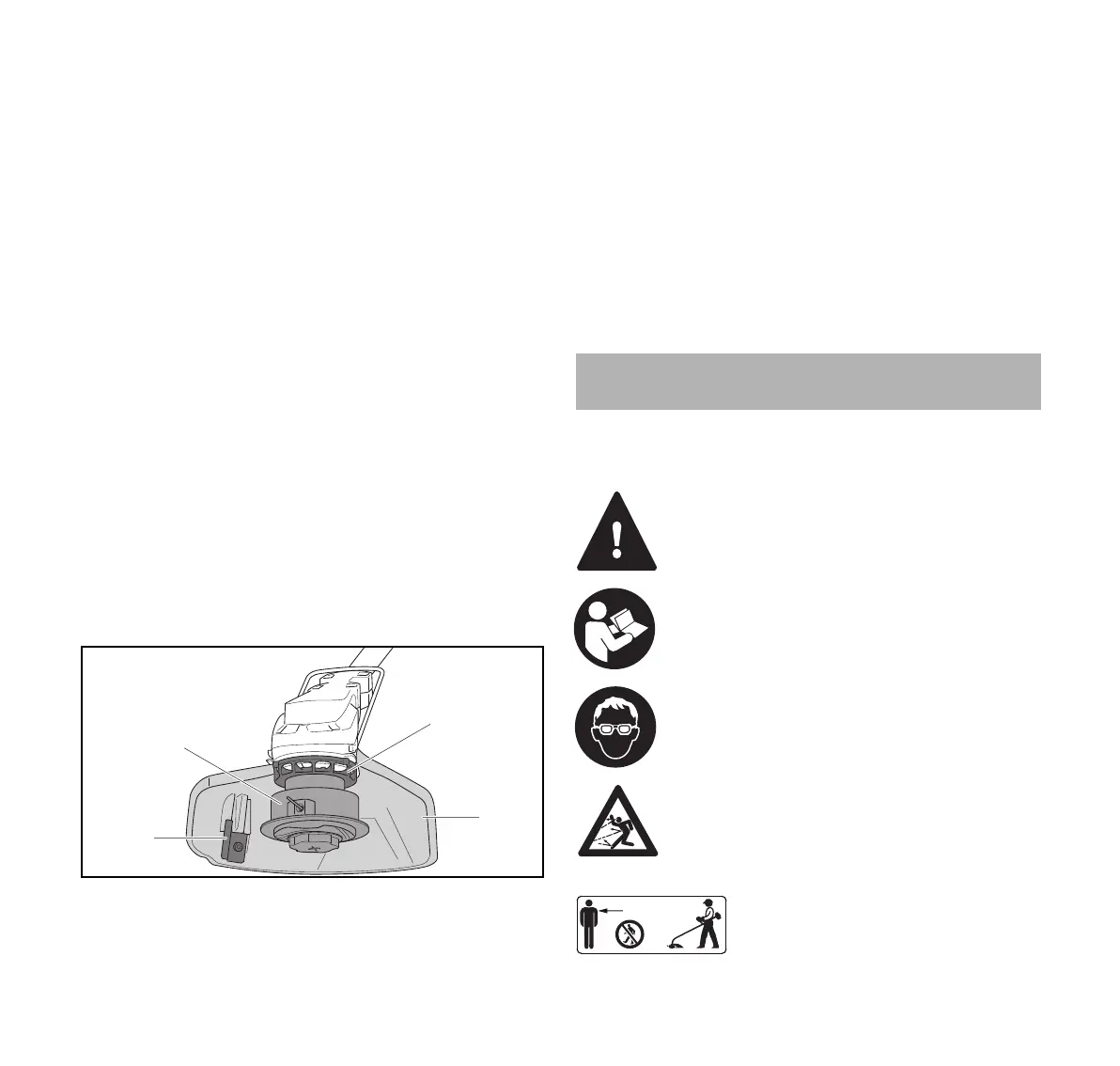

3.2 Mowing Head, Cutting Attachments and
Deflector
1 Line Limiting Blade
Metal blade on the deflector that trims the nylon mowing
line to the proper length.
2 Mowing Head
Mowing head for mounting cutting attachment.
3 Fan Wheel
Designed to cool the electric motor.
4 Deflector
Designed to reduce the risk of injury from thrown objects
and contact with the cutting attachment.
The FSA 86 R is sold with an AutoCut mowing head and
appropriate deflector. Other items are available as
accessories.
4.1 Trimmer
The following safety symbols are found on the trimmer.
3
2
1
4
0000097535_001
4 Safety Symbols on the Products
To reduce the risk of injury, follow the specified
safety precautions.
Read and follow all safety precautions in the
instruction manual. Improper use can lead to
serious or fatal personal injury or property
damage.
To reduce the risk of eye injury, always wear
proper eye protection, @ 5.4.
To reduce the risk of personal injury from thrown
objects, inspect the work area and remove
stones, glass, pieces of metal and other objects
that could be thrown by the cutting attachment.
@ 5.6.4.
To reduce the risk of personal injury
from thrown objects, keep bystanders
at least 50 ft. (15 m) away, @ 5.6.4.
15m (50ft)
