22 MS 210, MS 230, MS 250

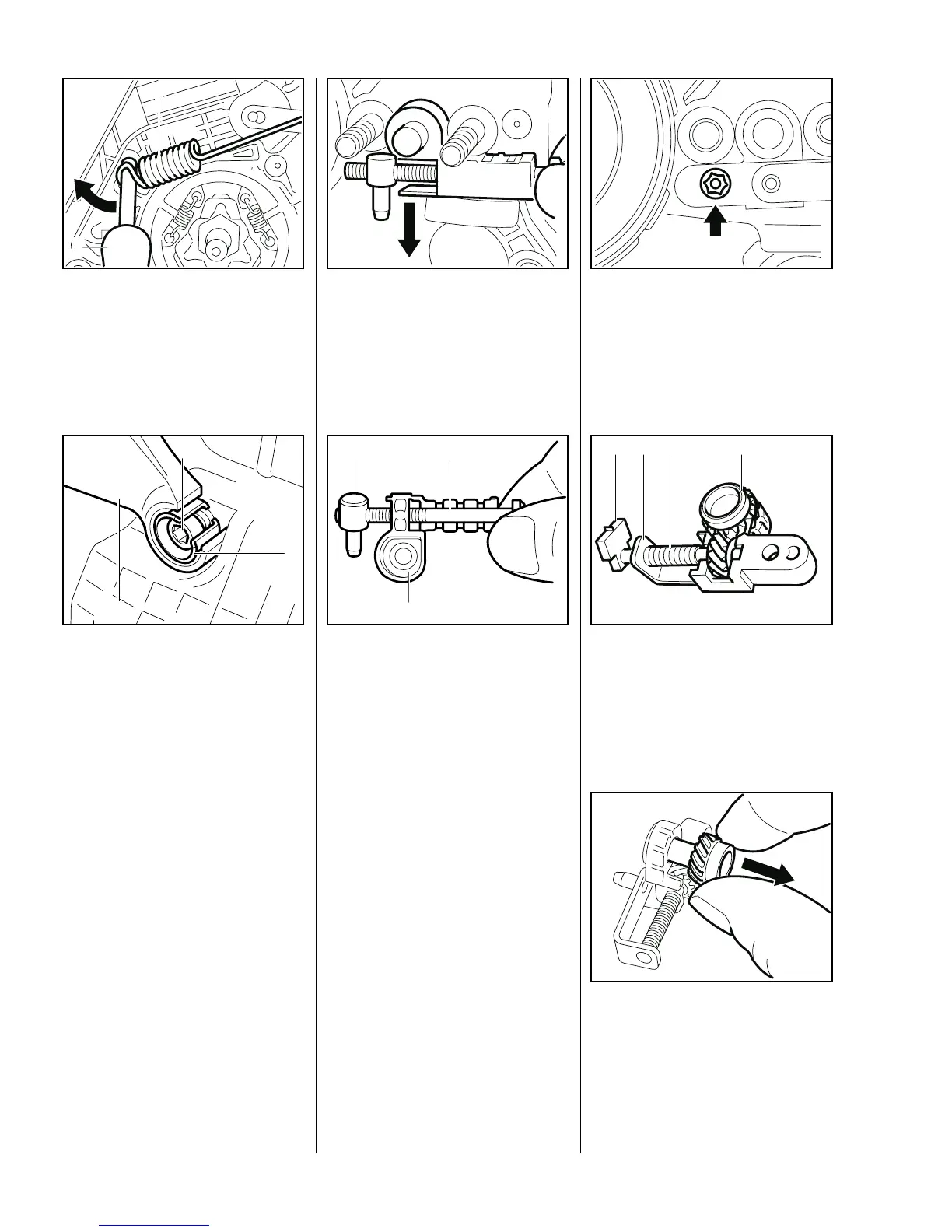

: Use the hook (2) 1117 890 0900
to attach the brake spring (1) to
the anchor pin.
VA
135RA041
1
2
– Fit the bushing (1) in the hand
guard (2).
: Insert M5x24 screw (3) and
tighten down to 3.5 Nm
(2.6 lbf.ft).
– Fit the cover.
VA
208RA004
3
1
2
– Tighten screws to 2.0 Nm
(1.5 lbf.ft).
– Fit upper bumper strip on
tensioner.
– Install clutch drum/chain sprocket
– b 5.1.
– Check operation of chain brake –
b 5.4.1.
– Remove the chain sprocket
cover.
: Pull the cover out of the housing.
VA
135RA043
: Unscrew the nut (1) from the
adjusting screw (2).
: Take the adjusting screw out of
the cover (3).
Reverse the above sequence to
install the chain tensioner.
143RA052
VA
1
2
3
– Remove the chain sprocket
cover.
: Take out the screw.
– Pull tensioner assembly out of
the engine housing.
VA
135RA044
: Take the thrust pad (1) off the
adjusting screw (2).
: Rotate the spur gear (3) until the
adjusting screw comes out of the
tensioner slide (4).
VA
135RA045
1 4 2 3
: Pull the spur gear out of the
cover.
VA
135RA046
5.5 Front Chain Tensioner 5.6 Side Chain Tensioner
