Stihl MS 230 Service Manual

53MS 210, MS 230, MS 250

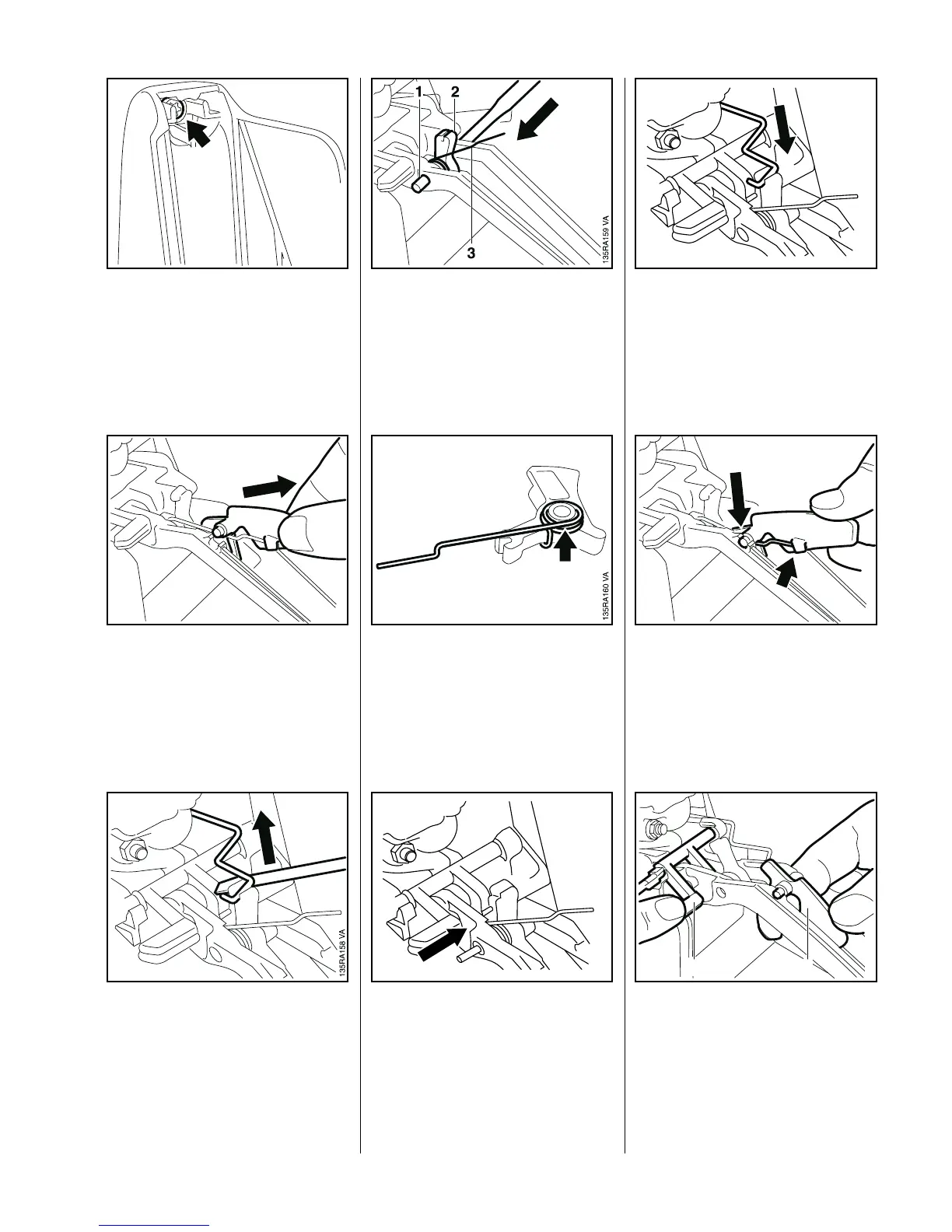

– Remove the carburetor box cover
– b 11.1.
: Take out the screw.
– Swing the handle molding up and
lift it away.
VA
135RA156
– Move the Master Control lever to
the normal "RUN" position.
: Pull the interlock lever out of its
seat.
VA
135RA157
: Remove the throttle rod from the
throttle trigger.
: Use a 4 mm (5/32") drift to drive
out the cylindrical pin (1).
: Remove the throttle trigger (2)
and torsion spring (3).
: Take the torsion spring off the
throttle trigger.
: Fit the throttle trigger so that the
seat for the throttle rod points
upward.
: Use a 4 mm (5/32") drift to push
home the cylindrical pin.
VA
208RA047
: Push the throttle rod into the
throttle trigger.
VA
208RA048
: Press the interlock lever into the
slots. The torsion spring must be
under the interlock lever and
engage the notch.
VA
135RA161
: Press the interlock lever (1)
downward.
: Push the throttle trigger upward
and move the Master Control
lever (2) to the "Choke" position.
2 1
VA
135RA162
9.6 Throttle Trigger/
Interlock Lever
