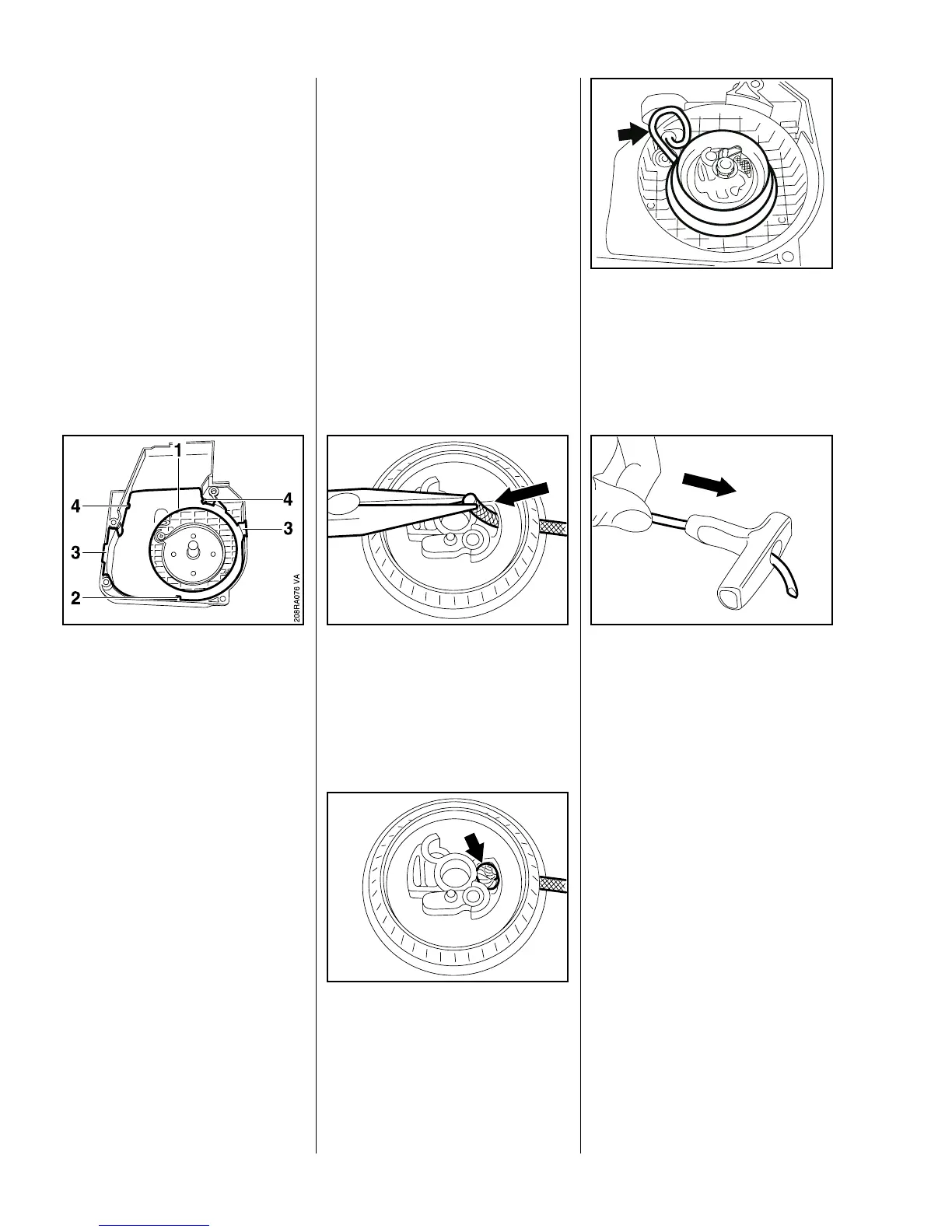

44 MS 210, MS 230, MS 250
– Remove the rope rotor – b 8.3.
: Use a screwdriver to pry the
segment (1) out of the upper
retainers (4).
– Pull the segment upwards and
remove.
Reassemble in the following
sequence.
: Place the segment (1) in position
and push it under the retainer (2).
: Engage lugs (3) flush with
housing.
: Push segment into retainers (4).
Reassemble all other parts in the
reverse sequence.
Remove the rope rotor – b 8.3.
– Remove the remaining rope from
the rope rotor and the starter grip.
: Thread end of new rope through
the hole in the side of the rotor,
pull it out.
VA
208RA038
– Secure the rope with a simple
overhand knot.
: Pull the rope back until the knot
locates in the recess (arrow) in
the rope rotor.
VA
208RA040
: Thread the other end of the rope
through the guide bush from
inside.
VA
135RA119
: Then through the underside of
the starter grip and pull it out.
VA
