Ice Bucket (611-2, 611G-2, 650-2, 650G-2)
Remove ice bucket by lifting out of left rear corner of
upper freezer basket (not shown).
Freezer Light Bulb (611-2, 611G-2, 650-2, 650G-2)
There is no light diffuser in the freezer of these models.
The light bulbs are located in front of evaporator cover.
Turn bulb counterclockwise to remove, clockwise to
install (See Figure 7-71).
IF BULB SHOULD SEPARATE FROM BASE, DIS-
CONNECT POWER TO UNIT BEFORE ATTEMPTING
TO REMOVE BASE.

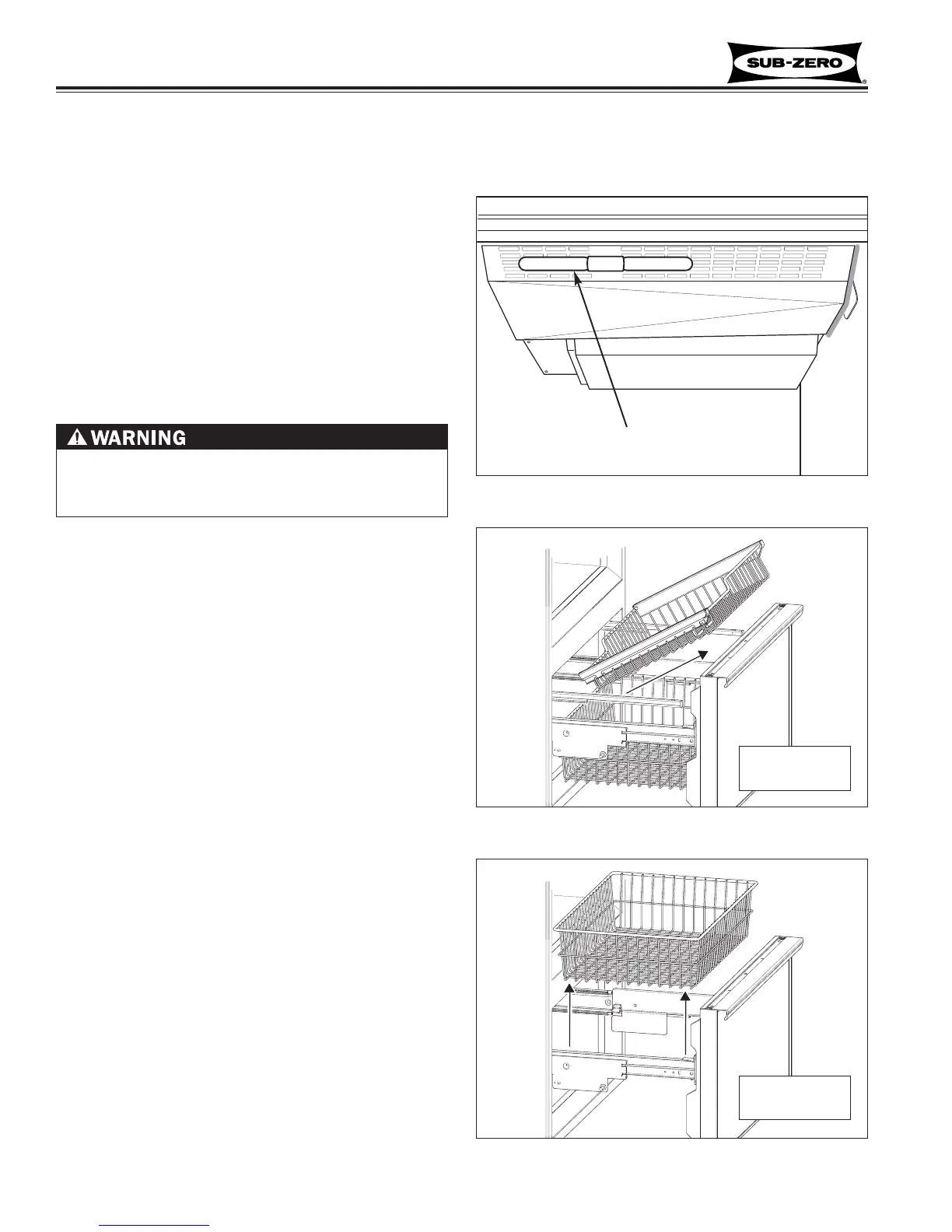

Figure 7-71. Freezer Light Bulbs
Light Bulbs
FREEZER INTERIOR COSMETIC / MECHANICAL (MODELS 611-2, 611G-2, 650-2, 650G-2)
Freezer Upper Basket Assembly
(611-2/611G-2,650-2/650G-2 Start w/Serial #2354455)
NOTE: To remove the upper freezer basket prior to
serial #2354455, see Freezer Drawer Assembly
removal instructions in the Exterior Cosmetic /
Mechanical section, as the upper basket is part of the
drawer assembly.
To remove upper basket assembly (See Figure 7-72):
1. Pull upper basket fully forward.
2. Lift front of basket up slightly, then push upper bas-
ket slides back to disengage slide hooks from the
slots at rear of basket assembly.
3. Continue pulling basket forward while lifting it up off
of the slides.
Freezer Lower Basket Assembly
(611-2/611G-2,650-2/650G-2 Start w/Serial #2354455)
NOTE: To remove the lower freezer basket prior to
serial #2354455, see Freezer Drawer Assembly
removal instructions in the Exterior Cosmetic /
Mechanical section, as the lower basket is part of the
drawer assembly.
To remove a lower basket assembly, start with the
freezer drawer fully open, and upper basket fully in, or
removed. Then, lift the lower freezer basket up, off of
the basket retainers, and out of the freezer compart-
ment. (See Figure 7-73)
Figure 7-72. Freezer Upper Basket Assembly
Figure 7-73. Freezer Lower Basket Assembly
Starting w/Serial
#2354455
Starting w/Serial
#2354455
