Condenser Fan (All Models except 601’s)
The condenser fan is mounted to the condenser fan
shroud with three fan mounting brackets that are
hooked into grommeted holes in the fan shroud.
Screws passing through these brackets secure the fan
motor to the brackets. The condenser fan blade is held
onto the fan motor shaft with a nut.
To remove the condenser fan, first remove the grille,
then (See Figure 7-147):
1. Extract screws securing motor to brackets.
NOTE: Brackets will unhook from grommeted
holes in condenser fan shroud after screws are
removed.
2. To remove fan blade from fan motor:
a. Grab blade and motor while turning nut coun-
terclockwise.
b. Then pull the blade from the motor shaft.
Dual Water Valve
(685-2 Prior to Serial #2271174)
(695-2 Prior to Serial #2269189)
NOTE: The water valve on these models is at top of
the unit. The water line inlet connection is under the
unit.
To remove the dual water valve, first remove the grille,
then (See Figure 7-148):
1. Disconnect wire leads from both solenoids.
2. Slide spray cover off of inlet compression fitting.
3. Disconnect inlet water line from dual water valve.
4. Disconnect outlet water lines.
5. Extract screw which holds valve to bracket and lift
valve up and out.
UPPER COMPRESSOR AREA MECHANICAL (ALL MODELS EXCEPT 601’S)

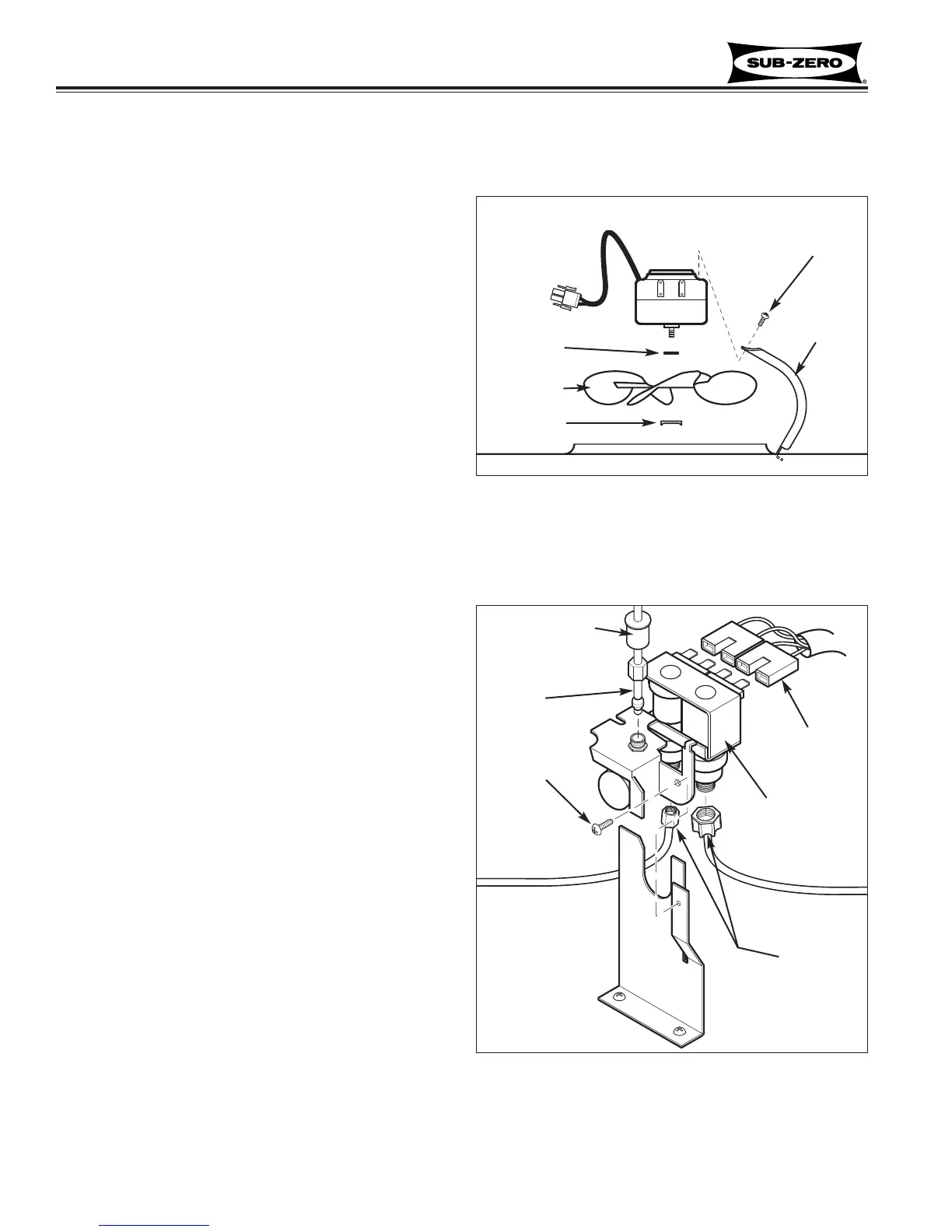

Figure 7-147. Condense Fan
Condenser Fan Shroud
Fan Blade
Nut
Silencer
Motor
Bracket (3)
Screws (3)
Figure 7-148. Dual Water Valve
Spray Cover
Inlet
Water
Line
Screw
Bracket
Dual Water
Valve
Wire Leads
Outlet
Water
Line
