7-48
Component Access / Removal
Built-In
Built-In
(600-
(600-
2
2
)
)
Series
Series
#3758407 - Revision B - August, 2006
Figure 7-126 . Juice Can Rack
Lift
up.
Pull
out.
FREEZER INTERIOR COSMETIC / MECHANICAL (MODELS 685-2 - starting with serial #2271174, 695-2 -
starting with serial #2269189)
NOTE: Also see “FREEZER INTERIOR COSMETIC / MECHANICAL (MODELS 685-2 - prior to serial
#2271174, 695-2 - prior to serial #2269189), earlier this section.
Freezer Door Shelf Assembly Removal / Adjustment
(685-2, 695-2)
Removal and adjustment of door shelf assemblies is
achieved by sliding the grooves in the end caps over
the molded retaining ribs of the door liner.
Lift up and out to remove, push in and down to install
(See Figure 7-124).
Freezer Compartment Shelf Removal / Adjustment
(685-2, 695-2)
Remove and adjust shelf by tilting up at front while lift-
ing the back up and out of the shelf ladders (See Figure
7-125).
To reinstall, tilt front of shelf up and align hooks at back
corners with slots in shelf ladders, then insert hooks
into slots and lower front of shelf.
Juice Can Rack Assembly (685-2, 695-2)
Hooks at the back of the juice can rack assembly fit into
slots in the evaporator front cover.
To remove juice can rack assembly (See Figure 7-126):
1. Lift rack up.
2. Pull rack forward.

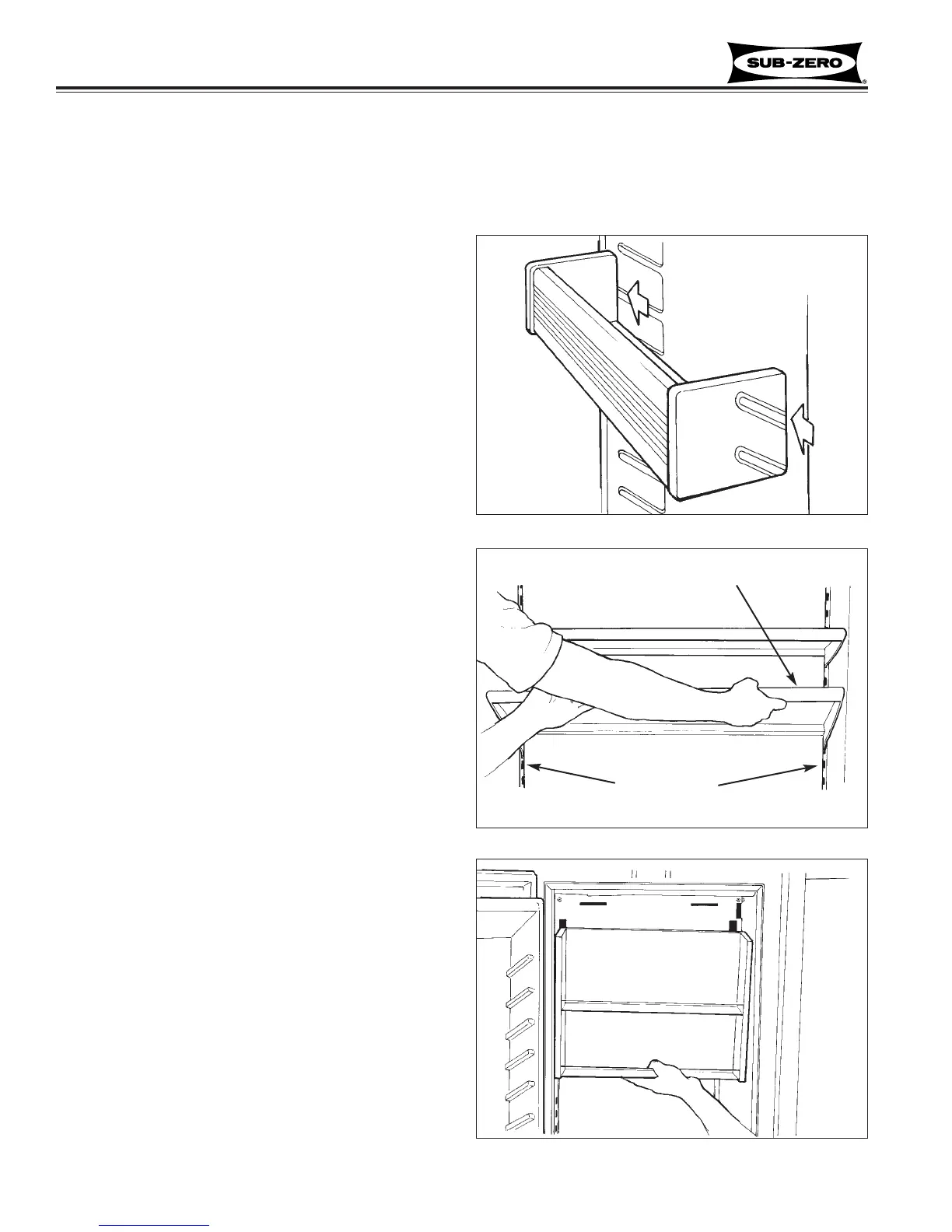

Figure 7-124. Door Shelf
Figure 7-125. Compartment Shelf
Shelf Ladders
Shelf
