Sub-Zero 642-2 - Freezer Drawer Adjustment

Installation Information
Built-In
Built-In
(600-
(600-
2
2
)
)
Series
Series
2-6
#3758407 - Revision B - August, 2006

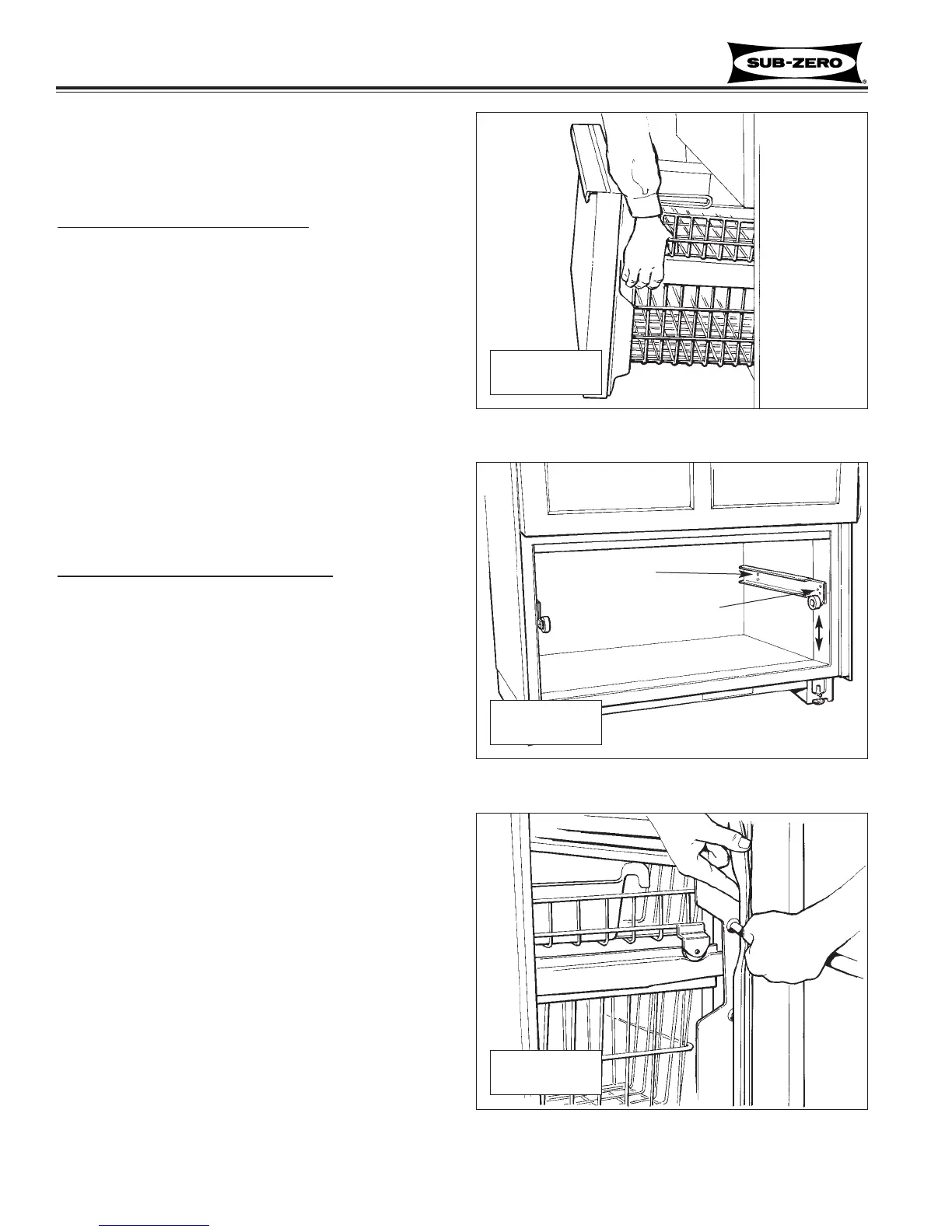

Figure 2-8. Drawer Assembly Removal
Figure 2-9. Vertical Freezer Drawer Adjustment
Rear Screws
Front Screw
Adjust slide front up
or down as required
Figure 2-10. Drawer Front Pitch Adjustment
Freezer Drawer Adjustments
(611-2/611G-2,650-2/650G-2 Prior to Serial #2354455)
NOTE: After serial #2354455, the freezer drawer is
non-adjustable.
V
ertical Freezer Drawer Adjustment:
NOTE: Before attempting freezer drawer adjustment,
remove freezer drawer assembly. Pull drawer assem-
bly out, then lift at front while holding upper freezer bas-
ket in place. (See Figure 2-8)
1. Loosen two screws towards rear of each cabinet
drawer slide, and extract screw at slide front. (See
Figure 2-9)
2. Relocate front screw to desired position in drawer
slide insulator grommet (See Figure 2-9).
3. After adjustment, tighten all screws, reinstall drawer
assembly, then check door seal for proper gasket
seating.
NOTE: If freezer drawer assembly has too much play
from side-to-side, freezer drawer slide shims (part #
0232300 - front, part # 0232310 - rear) are available.
Freezer Drawer Front Pitch
Adjustment:
1. Remove two 3/4” white plastic plugs from each side
of plastic drawer liner. (See Figure 2-10)
2. With 3/8” socket, loosen bolts, then adjust drawer
front pitch accordingly. (See Figure 2-10).
3. After adjustment, tighten bolts and check door seal
for proper gasket seating.
Prior to Serial
#2354455
Prior to Serial
#2354455
Prior to Serial
#2354455
