Component Access / Removal
#3758407 - Revision B - August, 2006
Bottom Mount Standard Louvered Grille (601R-2, 601RG-2, 601F-2)

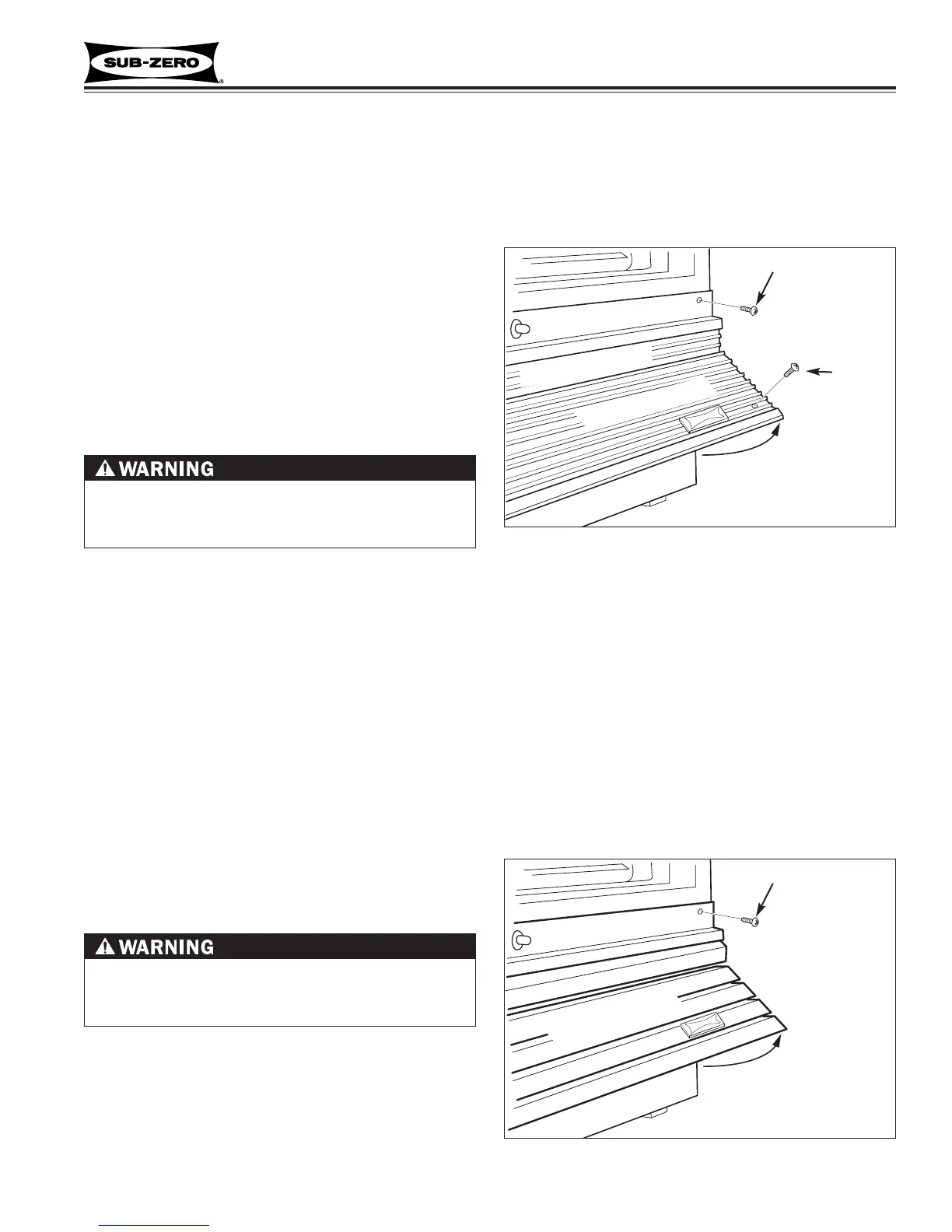

The bottom mount standard louvered grille consists of a
lower and upper grille section.
Lower Grill Section Removal - To remove lower grille
section (See Figure 7-1):
1. Extract screws at bottom left and right corners of
lower grille section.
2. Pull bottom of lower grille section out and up to
release it from upper grille section.
Upper Grill Section Removal - To remove upper grille
section (See Figure 7-1):
EXTERIOR COSMETIC / MECHANICAL (ALL MODELS)
UPPER GRILLE SECTION HOLDS FAN AND LIGHT
SWITCHES. DISCONNECT POWER TO UNIT
BEFORE REMOVING UPPER GRILLE SECTION.
1. Remove lower grille section first.
2. Open cabinet door and extract screws at top left and right corners of upper grille section.
3. Pull upper grille section forward slightly and disconnect electrical leads from fan and light switches.
Bottom Mount Stainless Steel Grille (601R-2, 601RG-2, 601F-2)
The bottom mount stainless steel grille consists of a lower and upper grille section. The lower grill section uses a
“catch and strike” retention system.
Lower Grill Section Removal - To remove lower grille section (See Figure 7-2):
1. Grasp bottom of grille and pull out and up to release strike from catch at bottom.
2. Continue to pull bottom out and up to release it from
upper grille section.
Upper Grill Section Removal - To remove upper grille
section (See Figure 7-2):
Figure 7-2. Stainless Steel Grille
UPPER GRILLE SECTION HOLDS FAN AND LIGHT
SWITCHES. DISCONNECT POWER TO UNIT
BEFORE REMOVING UPPER GRILLE SECTION.
1. Remove lower grille section first.
2. Open cabinet door and extract screws at top left
and right corners of upper grille section.
3. Pull upper grille section forward slightly and discon-
nect electrical leads from fan and light switches.
Upper Grille
Screw
Pull out and up
Lower Grille Section
Upper Grille Section
Figure 7-1. Louvered Grille
Upper Grille
Screw
Pull out and up
Lower Grille Section
Upper Grille Section
Lower
Grille
Screw
