Suzuki DF 60 Service Manual

ELECTRICAL 4-3

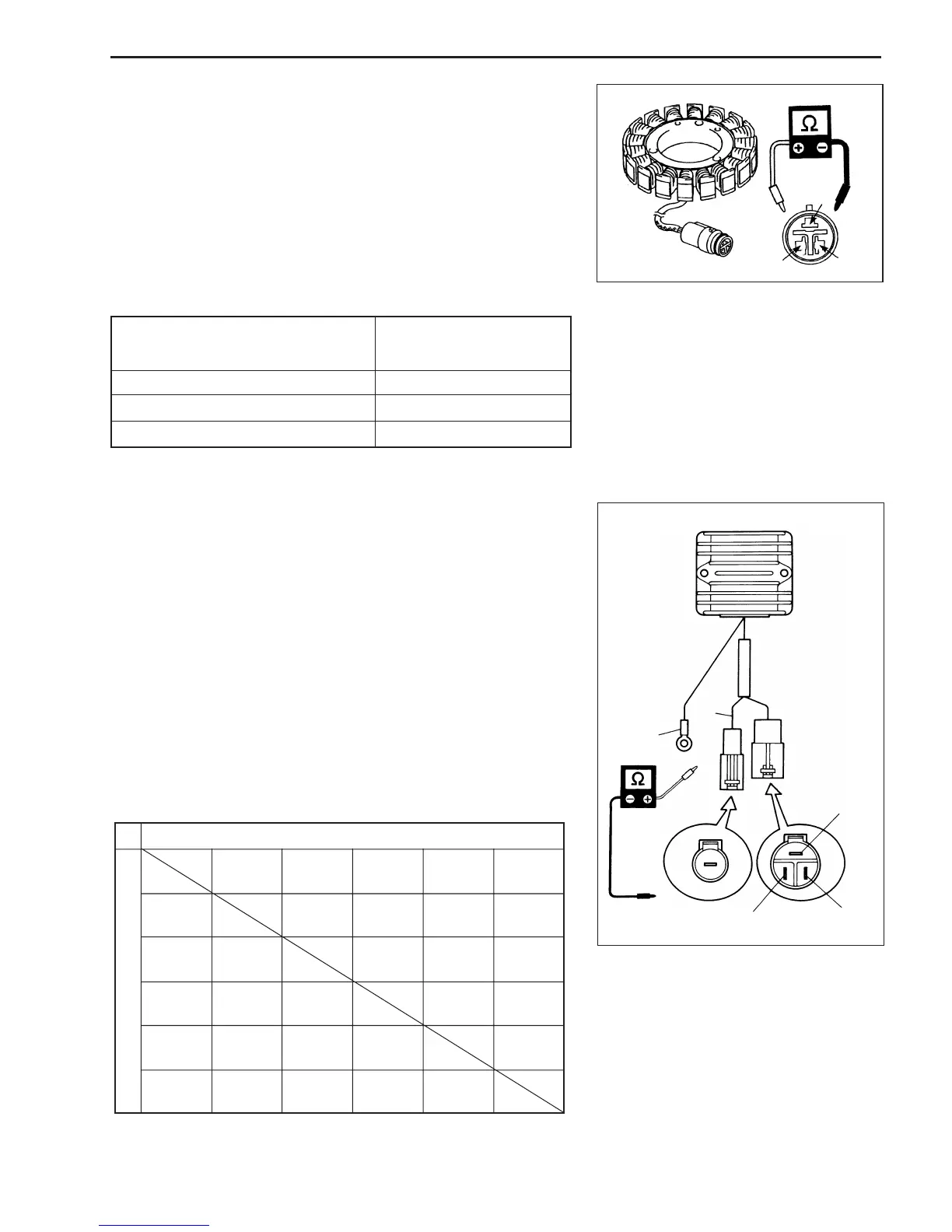

INSPECTION
BATTERY CHARGE COIL
! 09930-99320: Digital tester
"
##
##
#Tester range:
ΩΩ
ΩΩ
Ω (Resistance)
1. Disconnect the battery charge coil wire from the rectifier &
regulator.
2. Measure resistance between the terminals for all combina-
tions.
Battery charge coil resistance:
If the measurement is out of the specification, replace the bat-
tery charge coil.
Terminal for tester
probe connection
Resistance
Yellow
1 to Yellow2
Yellow1 to Yellow3
Yellow2 to Yellow3
Y
1
Y
2
Y
3
0.3 – 0.5 Ω
0.3 – 0.5 Ω
0.3 – 0.5 Ω
RECTIFIER & REGULATOR
! 09930-99320: Digital tester
" Tester range:
ΩΩ
ΩΩ
Ω (Resistance)
1. Disconnect all wires of the rectifier & regulator.
2. Measure resistance between the terminals for all combina-
tions.
NOTE:
The values given below are for the SUZUKI digital tester.
As thyristors, diodes, etc. are used inside this rectifier & regula-
tor, the resistance values will differ when an ohmmeter other than
the SUZUKI digital tester is used.
Rectifier & regulator resistance:
If the mesurement is out of the specification, replace the rectifier
& regulator.
Tester probe + (Red)
Tester probe - (Black)
Black White Yellow1 Yellow2 Yellow3
Black
White
Yellow
1
Yellow2
Yellow3
B
W
Y
1
Y
3
Y
2
Approx.
5 MΩ
Approx.
0.8 MΩ
Approx.
0.8 MΩ
Approx.
0.8 MΩ
Approx.
0.8 MΩ
Approx.
0.8 MΩ
Approx.
0.8 MΩ
20 – 50
MΩ
20 – 50
MΩ
20 – 50
MΩ
20 – 50
MΩ
20 – 50
MΩ
20 – 50
MΩ
20 – 50
MΩ
20 – 50
MΩ
20 – 50
MΩ
20 – 50
MΩ
20 – 50
MΩ
20 – 50
MΩ
20 – 50
MΩ
