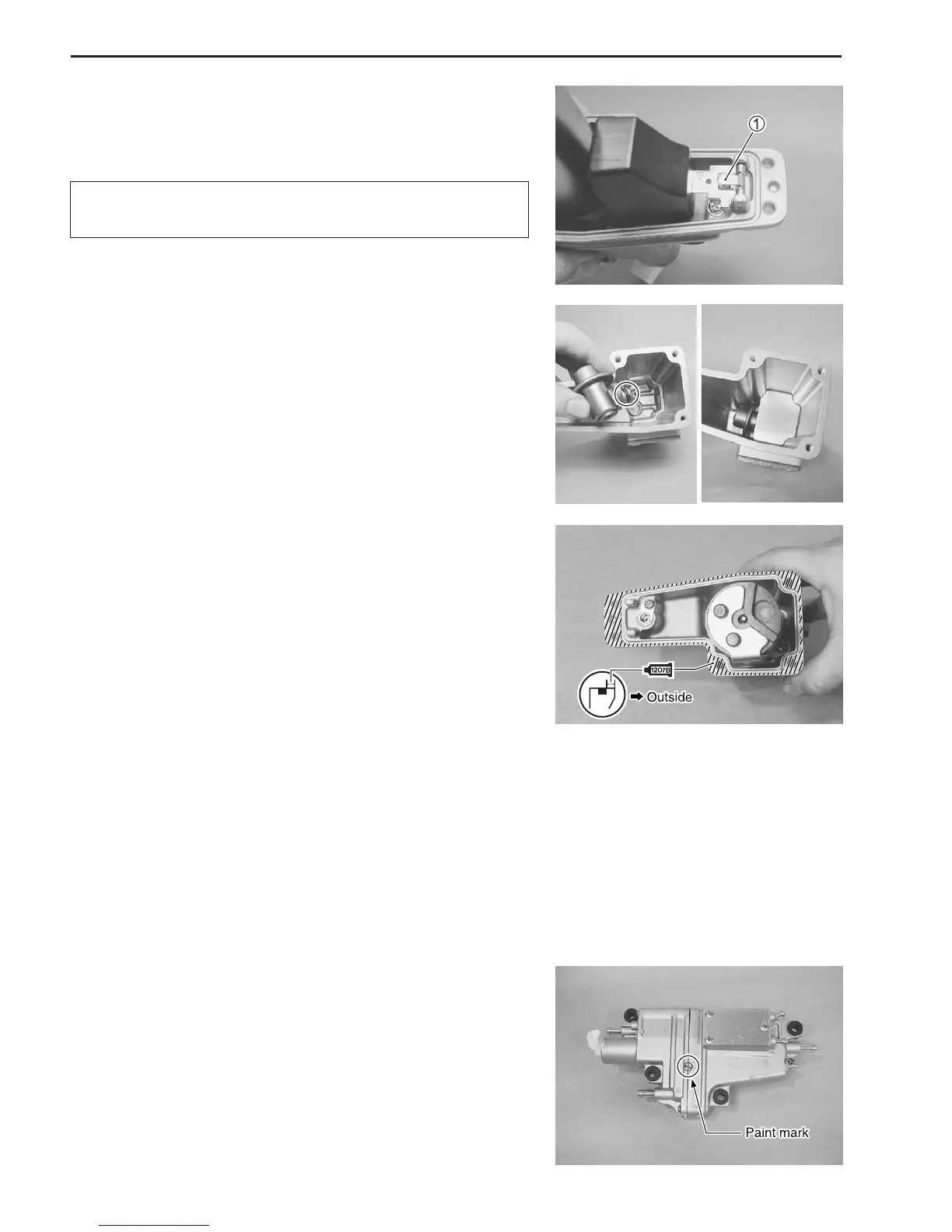

5-10 FUEL SYSTEM
Setting float height
To correct specification, bend only the adjustment tab 1 .
#
When adjusting tab, do not bend to the point that it ap-
plies pressure to the needle and seat.
Fuel pressure regulator
1. Install the fuel pressure regulator and tighten the screw se-
curely.
NOTE:
Apply fuel to the O-ring before installing the regulator.
2. Install the plate.
Separator cover / Separator case
1. Install the seal ring, then apply the Suzuki Bond evenly to
only the outside mating surface of the separator case as
shown in the figure.
%
&&
&&
&99000-31140 : Suzuki Bond 1207B
NOTE:
•
Clean the mating surfaces before applying the bond.
•
Do not apply the bond to the seal ring, the groove and the in-
side mating surface.
2. Install the separator case, then tighten the screws securely.
NOTE:
The separator cover and the case are a set.
Make sure the paint marks on both items are matched when as-
sembling.
