DRIVE TRAIN 4-19

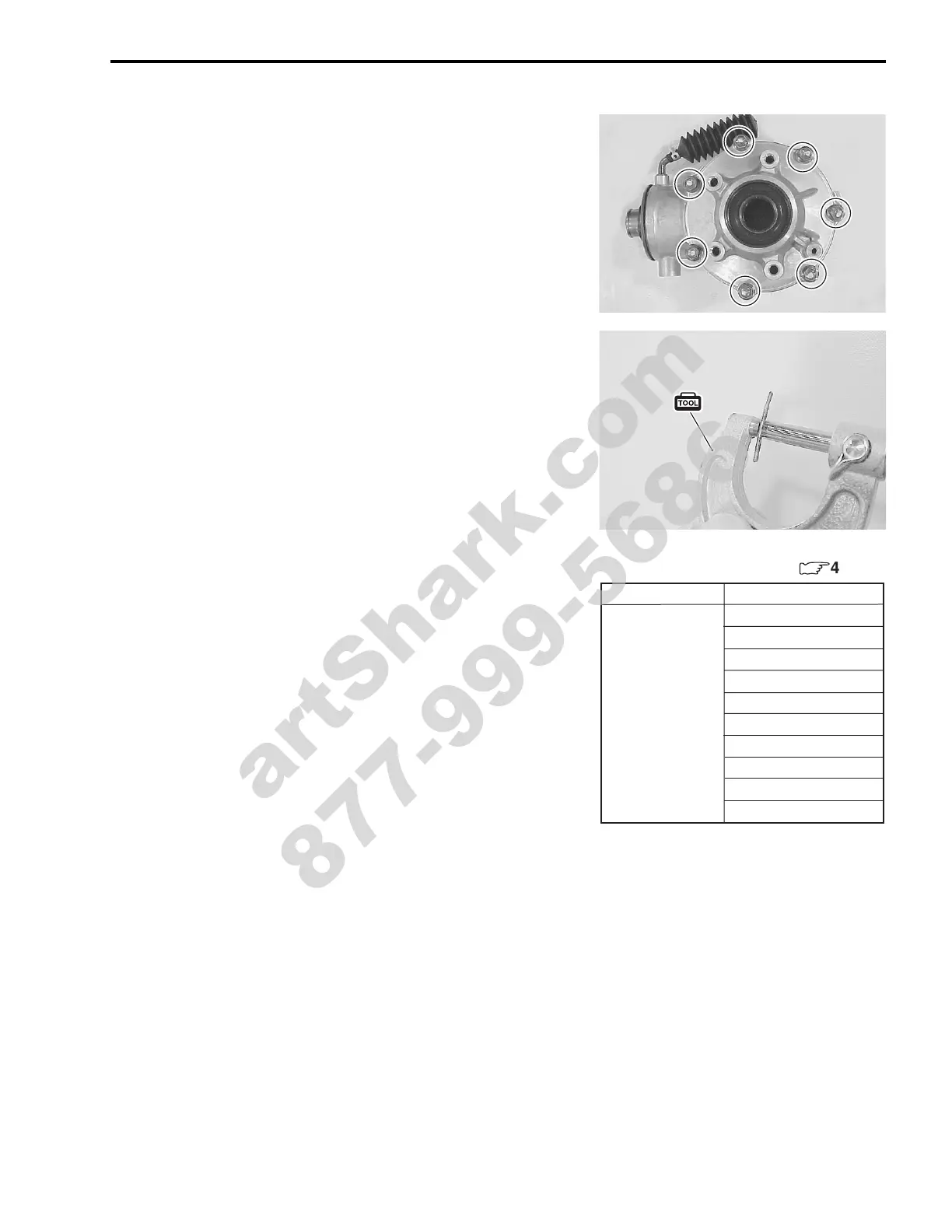

 Install the final gear case cover and tighten its bolts to the
specified torque in a crisscross pattern. (!4-15)
NOTE:
* It is not necessary to install the O-ring to the final gear case
cover at this time.
* Do not apply THREAD LOCK SUPER to the final gase cover
bolts at this time.
% Final gear case cover bolt: 26 N•m (2.6 kgf-m, 19.0 lb-ft)
 Remove the final gear case cover. (!4-4)
 Measure the thickness of compressed solder with the
micrometer.
" 09900-20205: Micrometer
 Select the proper size of shim from the right chart, according
as the compressed solder thickness.
 After selecting the proper size of shim, install it on the ring
gear back side.
1.26 mm (0.0496 in)
1.32 mm (0.0520 in)
1.38 mm (0.0543 in)
1.44 mm (0.0567 in)
1.50 mm (0.0591 in)
1.56 mm (0.0614 in)
1.62 mm (0.0638 in)
1.68 mm (0.0661 in)
1.74 mm (0.0685 in)
1.80 mm (0.0709 in)
Part No.
Shim thickness
For left side of ring gear (
:
4-21)
27407-05820
(Shim set: 10 pcs)
