ELECTRICAL SYSTEM 8-15

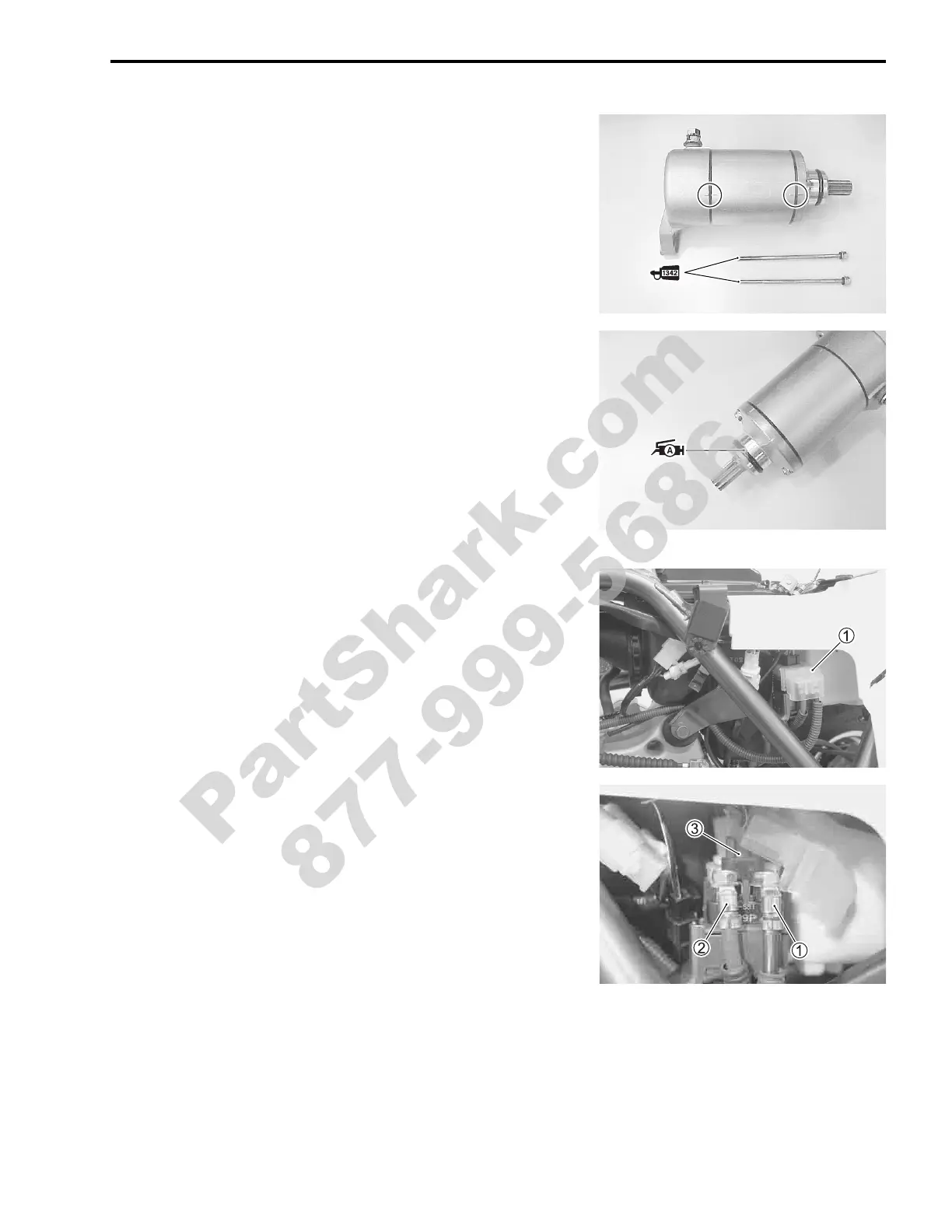

 Align the match marks on the starter motor case with the
match mark on the housing end.
 Apply a small quantity of THREAD LOCK to the starter motor
housing bolts and tighten it securely.
0 99000-32050: THREAD LOCK îš“ 1342îš”
 Apply SUZUKI SUPER GREASE to the O-ring.
. 99000-25030: SUZUKI SUPER GREASE îš“ Aîš” (USA)
99000-25010: SUZUKI SUPER GREASE îš“ Aîš” (Others)
STARTER RELAY INSPECTION
 Remove the left fuel tank side cover. (!7-5)
 Disconnect the
- battery lead wire from the battery terminal.
(!8-8)
 Open the starter relay cover
1.
 Disconnect the starter motor lead wire
1 and battery lead
wire
2 from the starter relay.
 Remove the starter relay from the frame.
 Disconnect the starter relay coupler
3.
