Suzuki LT-Z250 User Manual

CHASSIS 7-11
REMOVAL
FRONT AND REAR WHEELS
 Place the vehicle on the level ground.
 Support the vehicle with a jack or wooden block.
 Remove the wheel.

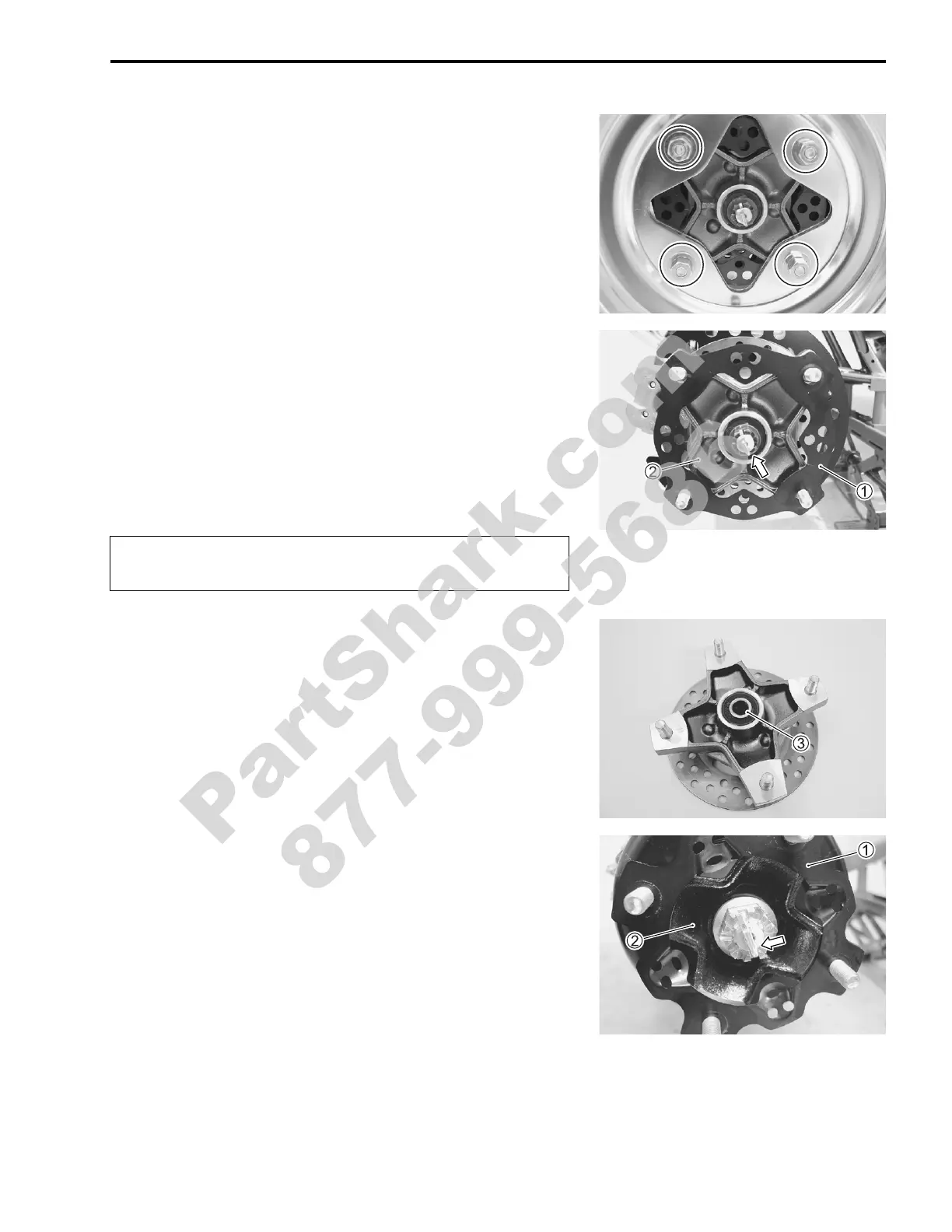

FRONT WHEEL HUB
 Remove the front wheel. (!Above)
 Remove the front hub plate
1.
 Remove the cotter pin and loosen the wheel hub nut with
applying the front brake.
 Remove the wheel hub nut and washer.
 Remove the front brake caliper. (!7-20)
 Remove the front wheel hub
2.
$
 Remove the spacer
3.
 Remove the brake disc. (!7-24)
REAR WHEEL HUB
 Remove the rear wheel. (!7-11)
 Remove the rear hub plate
1. (RH only)
 Remove the cotter pin and loosen the wheel hub nut with
applying the rear brake.
 Remove the wheel hub nut and washer.
 Remove the wheel hub
2.
Do not operate the front brake lever while the caliper
is removed.
