7-54 CHASSIS

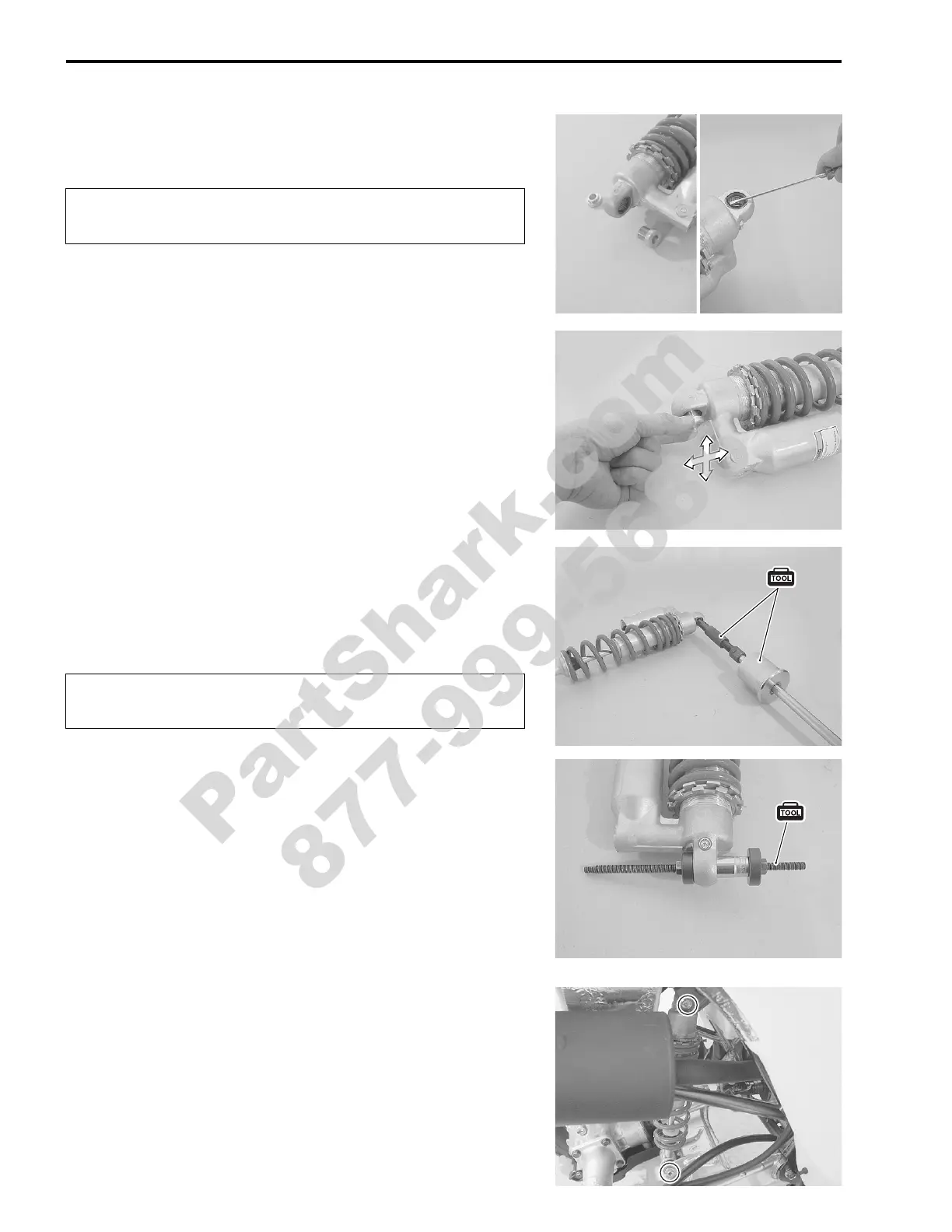

REAR SHOCK ABSORBER SPACER AND BEARING
 Remove the spacers and dust seals.
$
Inspect the spacers for any flaws or other damage. If any dam-
ages are found, replace the spacers with new ones.
 Insert the spacer into the rear shock absorber bearing and
then check the play by moving the spacer up and down.
If excessive play is noted, replace the bearing with a new one.
 Remove the rear shock absorber bearing with the special
tools.
% 09923-73210: Bearing remover
09930-30104: Sliding shaft
$
REASSEMBLY
REAR SHOCK ABSORBER
 Press the bearing into the rear shock absorber to the depth of
4 mm (0.157 in) with the special tool and suitable socket
wrench.
NOTE:
When installing the rear shock absorber bearing, make sure that
the stamped mark faces right side.
% 09924-84521: Bearing installer set
REMOUNTING
 Tighten the upper and lower shock absorber mounting nuts to
the specified torque of each.
" Rear shock absorber mounting nut (Upper):
78 N•m (7.8 kgf-m, 55 lb-ft)
Rear shock absorber mounting nut (Lower):
60 N•m (6.0 kgf-m, 43.0 lb-ft)
The removed dust seals must be replaced with new
ones.
The removed bearing must be replaced with a new
one.
