PERIODIC MAINTENANCE 2-11

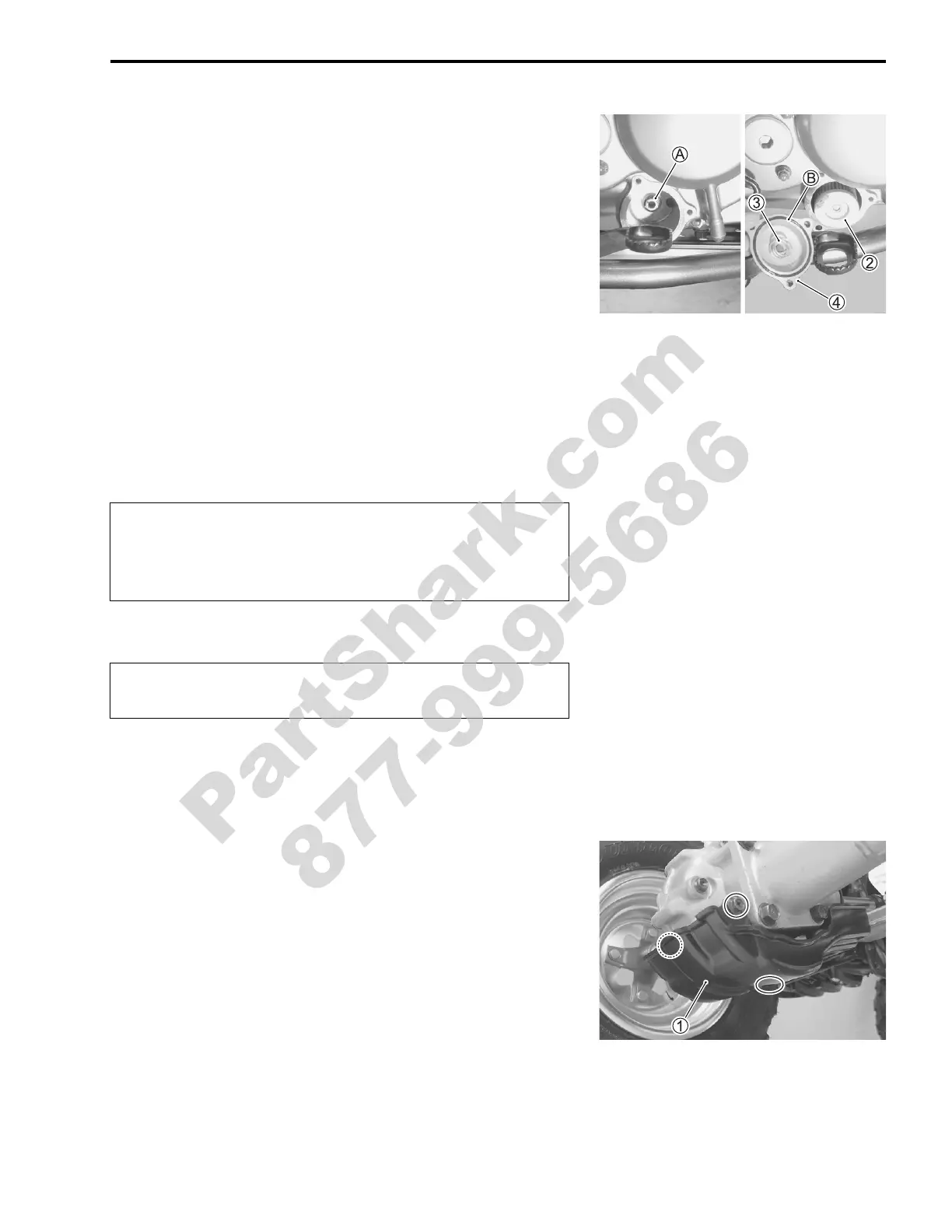

 Apply engine oil lightly to new O-rings
A and
B before install-
ing the oil filter cap.
 Install the new O-ring
A onto the oil filter fitting boss of the
clutch cover.
 Install the new O-ring
B to the groove of the oil filter cap.
 Install new oil filter
2.
 Install the spring
3 and oil filter cap
4.
 Pour new engine oil through the oil filler. When performing the
oil filter change, the engine will hold about 2.3 L (2.4 US qt,
2.0 Imp qt) of oil.

After three minutes of engine idling, check the oil level.
(!2-10)
% Engine oil capacity
Oil change: 2.2 L (2.3 US qt, 1.9 lmp qt)
Oil and filter change: 2.3 L (2.4 US qt, 2.0 lmp qt)
Engine overhaul: 2.5 L (2.6 US qt, 2.2 lmp qt)
"
FINAL GEAR OIL
To change the final gear oil, locate the vehicle on a level position
and carry out the following steps. Use SAE #90 hypoid gear oil
which is rated GL-5 under the API classification system. Use
hypoid gear oil SAE #80, API grade GL-5, if the vehicle is ridden
where the ambient temperature is below 0 îš°C or 32 îš°F.
 Remove the final gear case under cover
1 by removing three
bolts.
When reassembling the oil filter, make sure that the oil
filter is installed as shown above. If the filter is
installed improperly, serious engine damage may
result.
Inspect every 6 months.
Replace every 2 years.
