5-14 FUEL SYSTEM

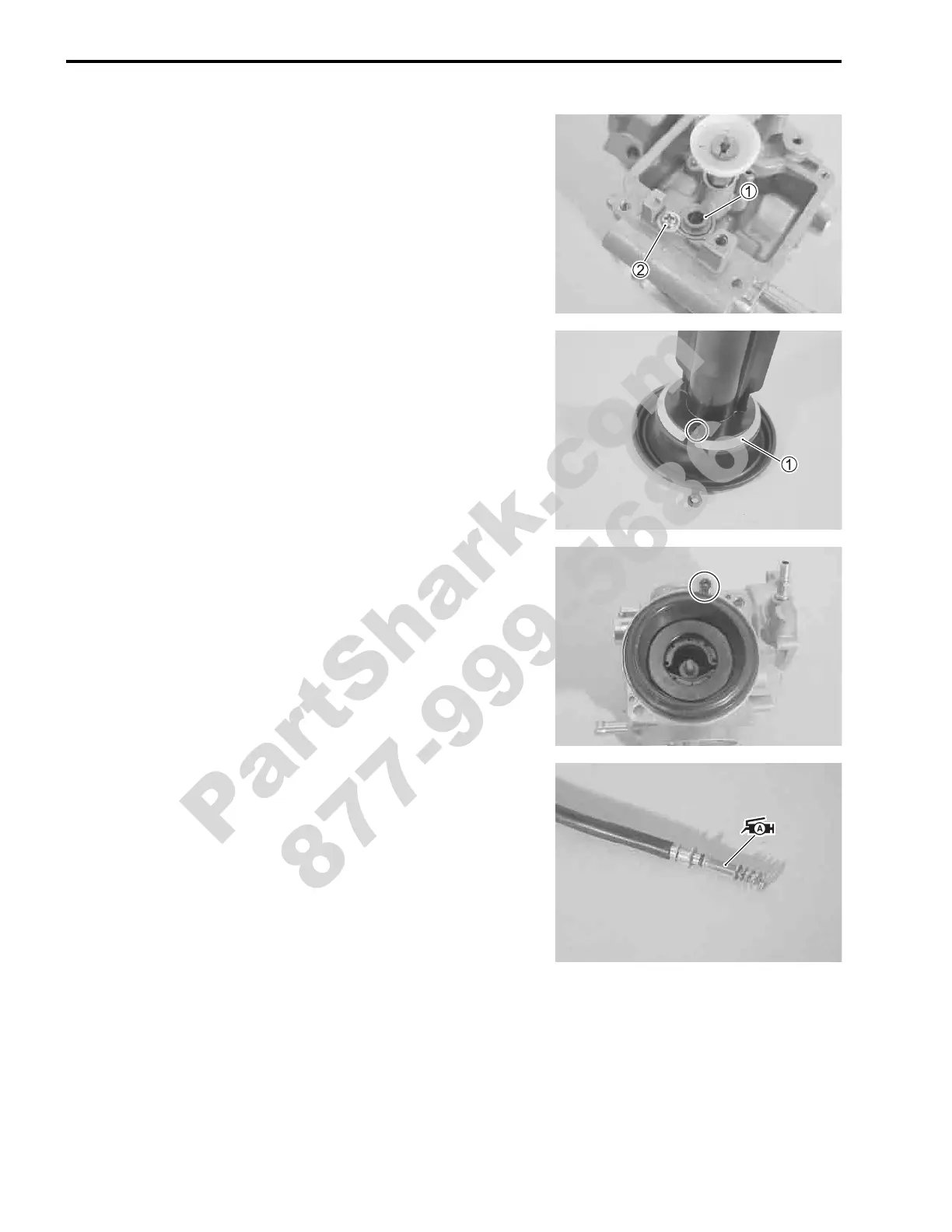

VALVE SEAT
 Install the valve seat
1 into the carburetor body, and then
tighten the screw
2.
NOTE:
Make sure that the collar of the screw
2 holds the step of the
valve seat
1 securely.
DIAPHRAGM
 Install the diaphragm to the piston valve with the lug on the
diaphragm aligned with the cutout on the piston valve.
 Install the ring
1 to the piston valve.
 Install the diaphragm assembly.
NOTE:
When installing the diaphragm, make sure the tab of the dia-
phragm is aligned with the concave section of the carburetor
bodyîš’s rim.
THROTTLE STOP SCREW
 Apply SUZUKI SUPER GREASE to thread part of the throttle
stop screw, then install the throttle stop screw to the carbure-
tor.
& 99000-25030: SUZUKI SUPER GREASE îš“A îš” ( USA)
99000-25010: SUZUKI SUPER GREASE îš“ Aîš” (Others)
