Suzuki LT-Z250 User Manual

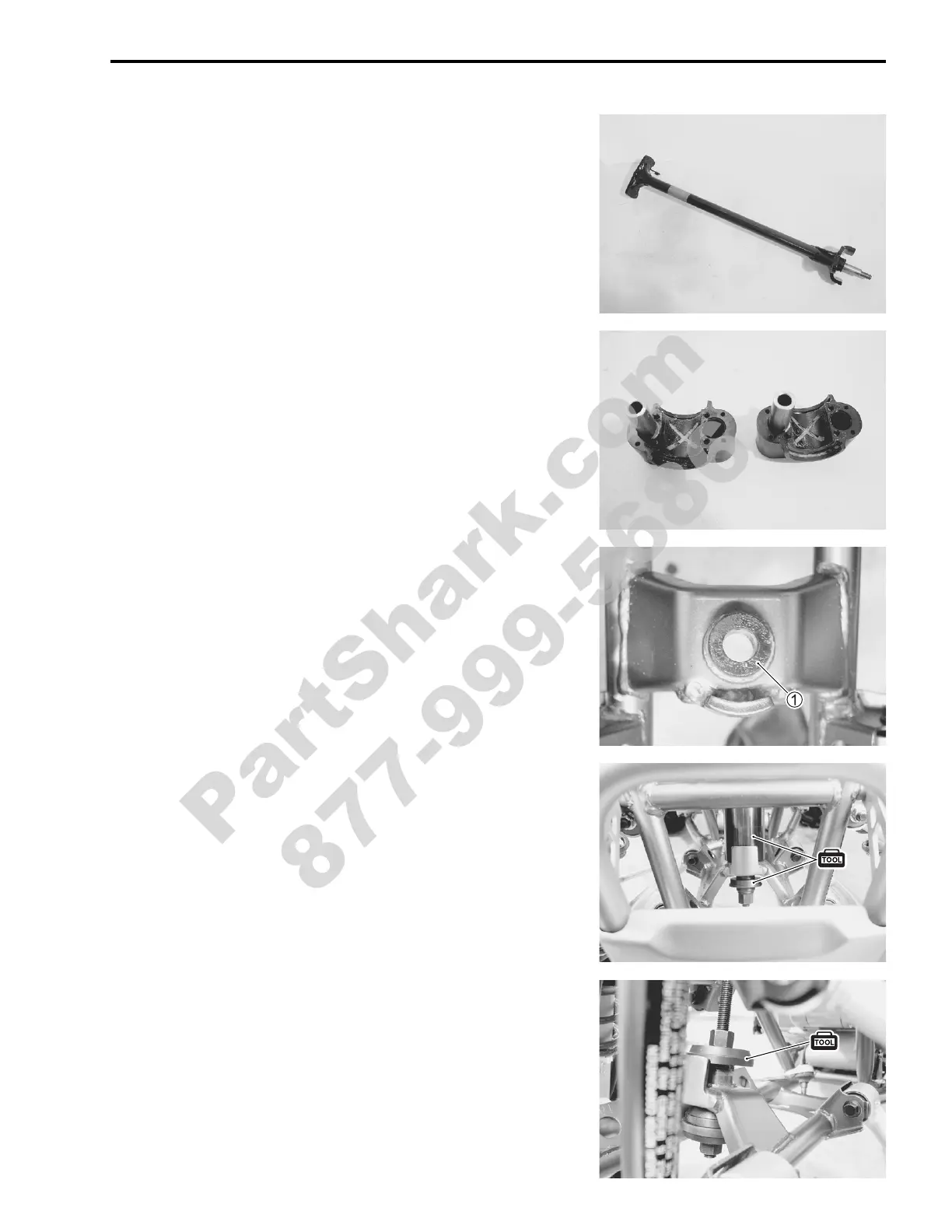

CHASSIS 7-39
STEERING SHAFT
Inspect the steering shaft for distortion or bends. If any damages
are found, replace the steering shaft with a new one.
STEERING SHAFT HOLDER
Inspect the two steering shaft holders for wear or damage. If any
damages are found, replace the steering shaft holders with new
ones.
STEERING SHAFT BUSHING
Inspect the steering shaft bushing
1 for wear and damage. If
any damages are found, replace it with a new one.
 Remove the steering shaft bushing with the special tools.
% 09924-84510: Bearing installer set
09930-30721: Rotor remover
 Install the steering shaft bushing with the special tool.
% 09924-84510: Bearing installer set
PartShark.com
877-999-5686

Suzuki LT-Z250 Specifications

General

Displacement	249 cc
Starting System	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Tires Rear	20 x 10-9
Fuel Capacity	9.5 L
Ignition	CDI
Front Suspension	Independent double-wishbone, coil spring, oil damped
Front Brakes	Hydraulic disc
Tires Front	21x7-10
Length	1, 830mm
Wheelbase	1270 mm
Engine Type	4-stroke, single cylinder
