ENGINE 3-43
REASSEMBLY
Assemble the transfer in the reverse order of disassembly. Pay
attention to the following points:
NOTE:
* Always use new snap rings.
* Before installing the gears, coat lightly engine oil to the shafts
and gears.
'

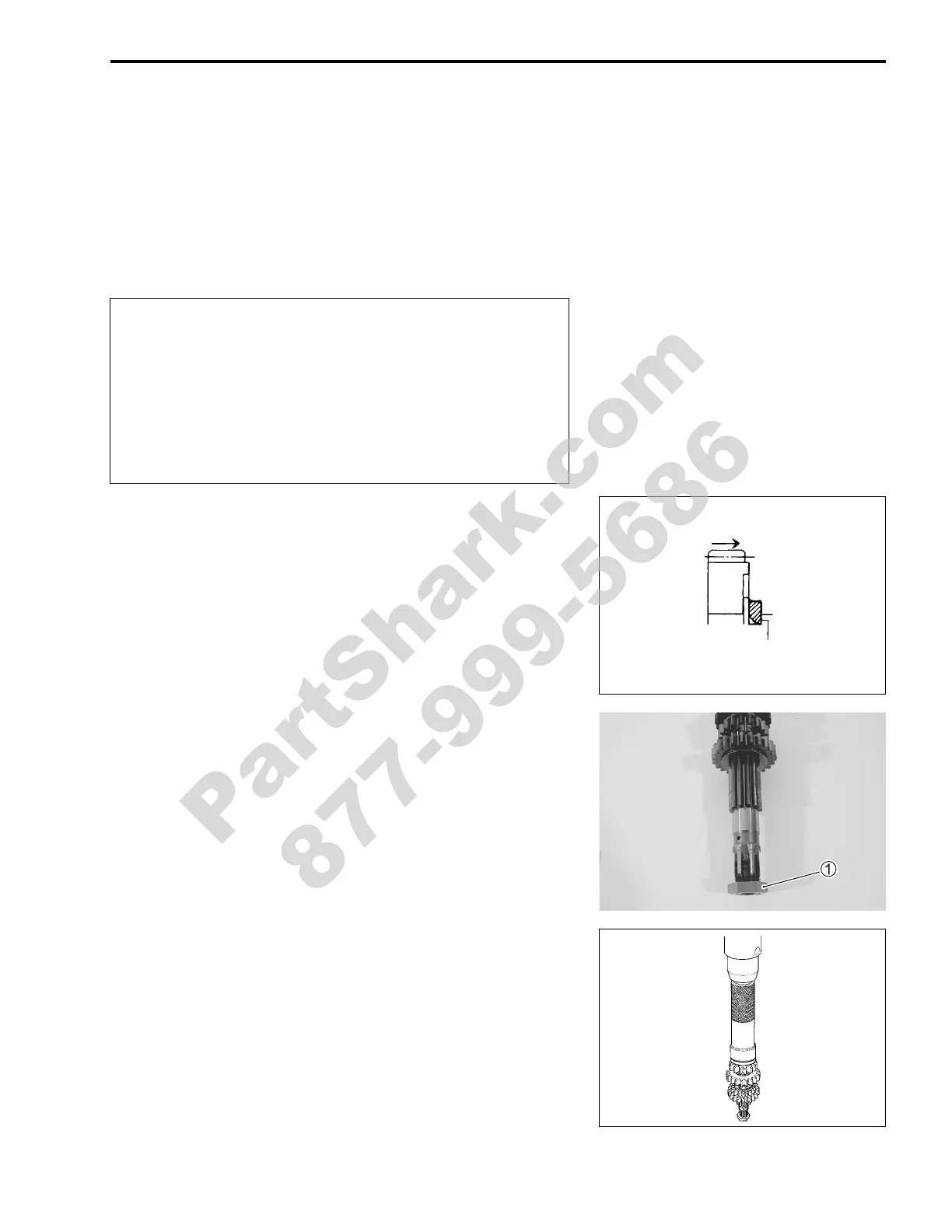

 When installing a new snap ring, pay attention to the direction
of the snap ring. Fit it to the side where the thrust is as shown
in the figure.
 Install the clutch sleeve hub nut
1 onto the right end of the
countershaft.
 Apply THREAD LOCK SUPER to the internal face of the 2nd
drive gear.
 Install the 2nd drive gear by a hydraulic press and special
tool.
* 99000-32030: THREAD LOCK SUPER îš“ 1303îš”
& 09913-70210: Bearing installer set
NOTE:
After installing the 2nd drive gear, check the 4th drive gear spins
smoothly with your fingers.
* Never reuse a snap ring. After a snap ring has been
removed from a shaft, it should be discarded and a
new snap ring must be installed.
* When installing a new snap ring, care must be taken
not to expand the end gap larger than required to slip
the snap ring over the shaft.
* After installing a snap ring, always ensure that it is
completely seated in its groove and securely fitted.
Thrust
Sharp edge
