Suzuki LT-Z250 User Manual

3-52 ENGINE
SECONDARY DRIVEN BEVEL GEAR REMOVAL
The following components must be removed in the described
order before removing the secondary driven bevel gear.
NOTE:
Refer to the following pages for the details of each step.
 Remove the rear wheel. (!7-11)
 Remove the swingarm. (!7-56)
 Remove the universal joint.
 Remove the secondary driven bevel gear.

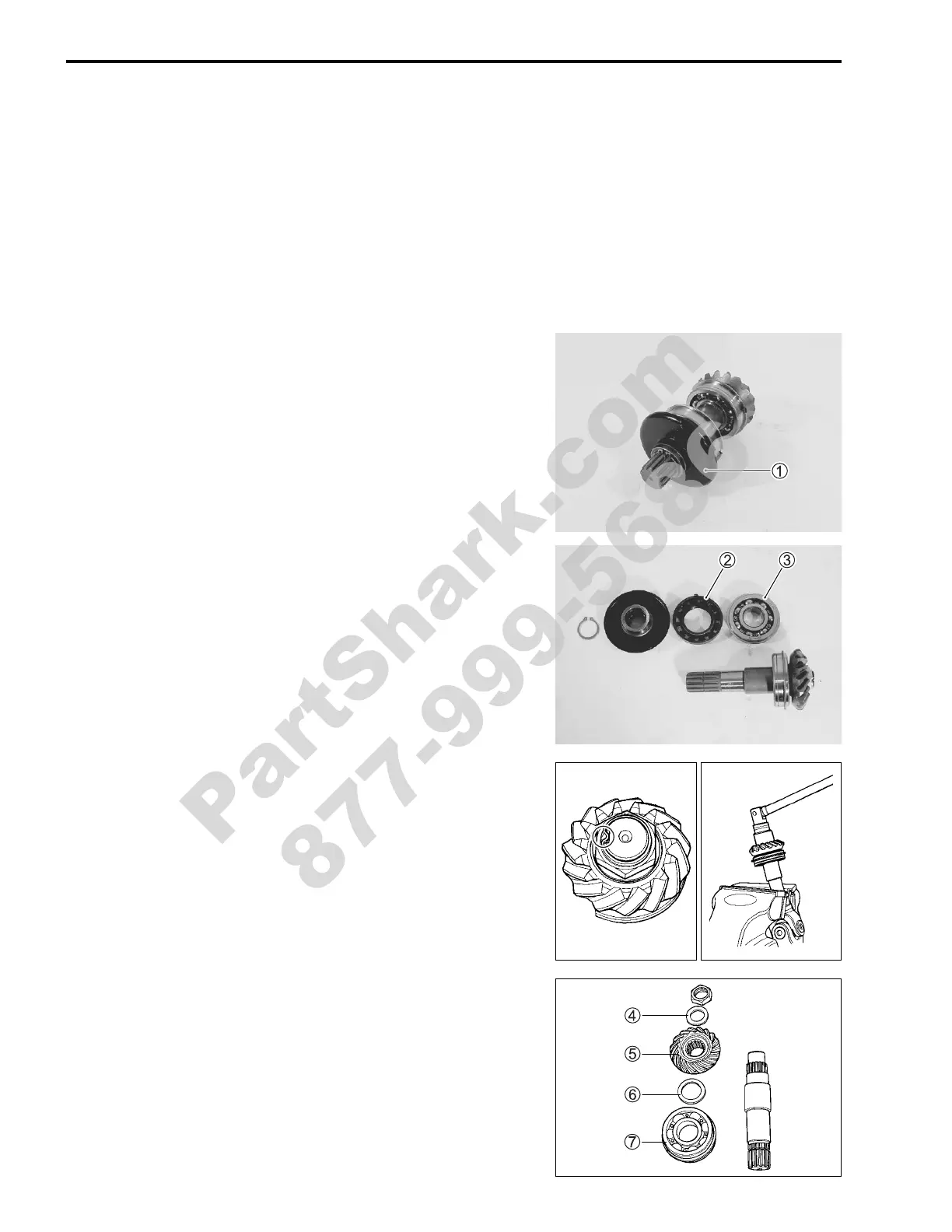

SECONDARY DRIVEN BEVEL GEAR DISASSEMBLY
 Remove the water proof cover
1 by removing the snap ring.
& 09900-06107: Snap ring pliers
 Remove the oil seal
2 and bearing 3.
 Using a chisel, unlock the nut.
 Fit the universal joint onto the driven bevel gear shaft.
 Remove the driven bevel gear shaft by holding the universal
joint with a vise.
 Remove the washer
4, bevel gear 5, shim 6 and bearing
7.
