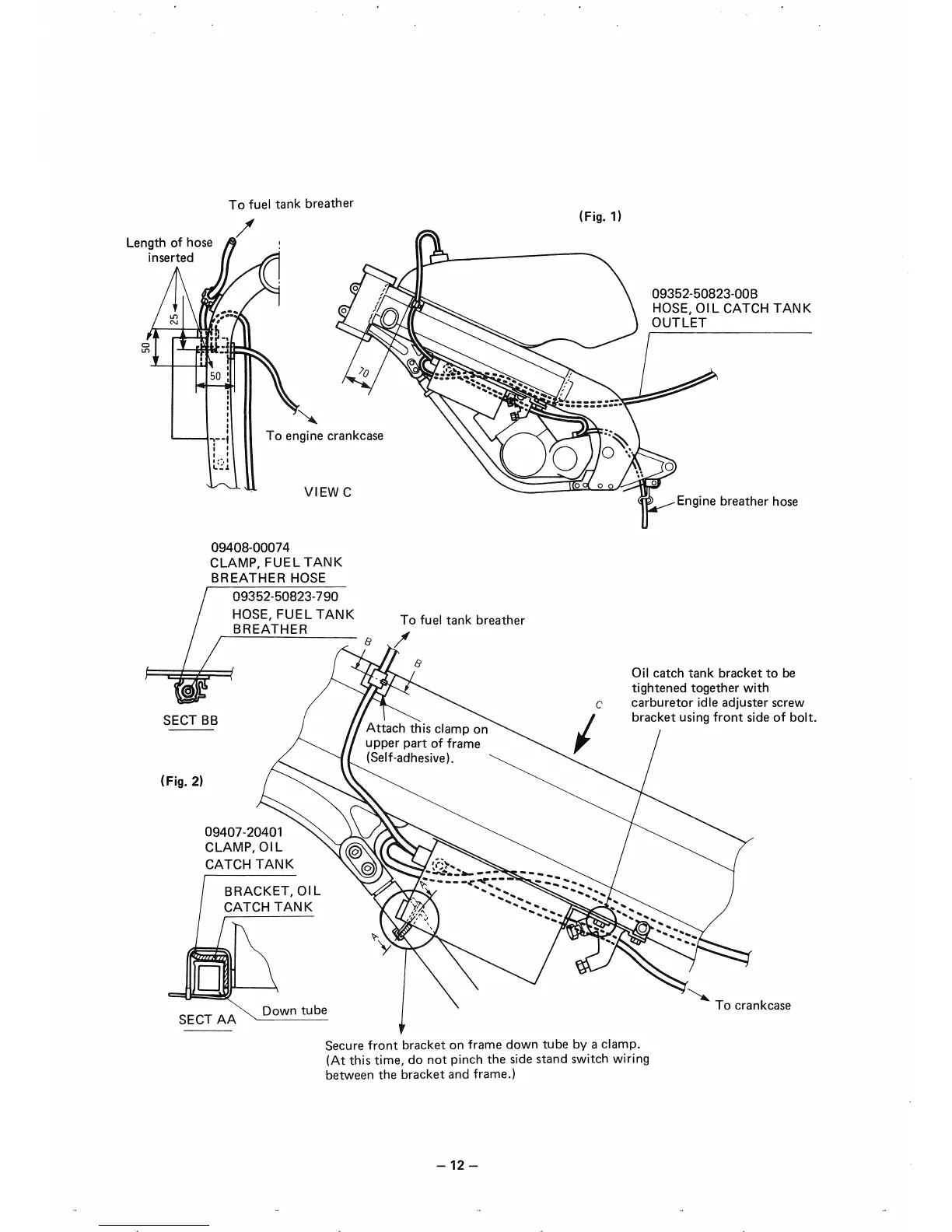

Length of hose
inserted
To fuel tank breather
/
(Fig. 1)
To engine crankcase
VIEWC
09352-50823-00B
HOSE, OIL CATCH TANK
OUTLET
Engine breather hose
09408-00074
CLAMP, FUEL TANK
BREATHER HOSE
To fuel tank breather
Oil catch tank bracket to be
tightened together with
carburetor idle adjuster screw
bracket using front side of bolt.
To crankcase
Secure front bracket on frame down tube by a clamp.
(At this time, do not pinch the side stand switch wiring
between the bracket and frame.)
-12-

Suzuki RGV250 1989 Specifications

General

Compression Ratio	7.4:1
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brakes	Dual discs
Rear Brakes	Single disc
Wheelbase	1, 370 mm
Ignition	Electronic
Frame	Aluminum twin spar
Rear Suspension	Mono-shock
Dry Weight	128 kg
Dry Weight Alternative	282 lbs
Engine Type	249cc liquid-cooled two-stroke V-twin
