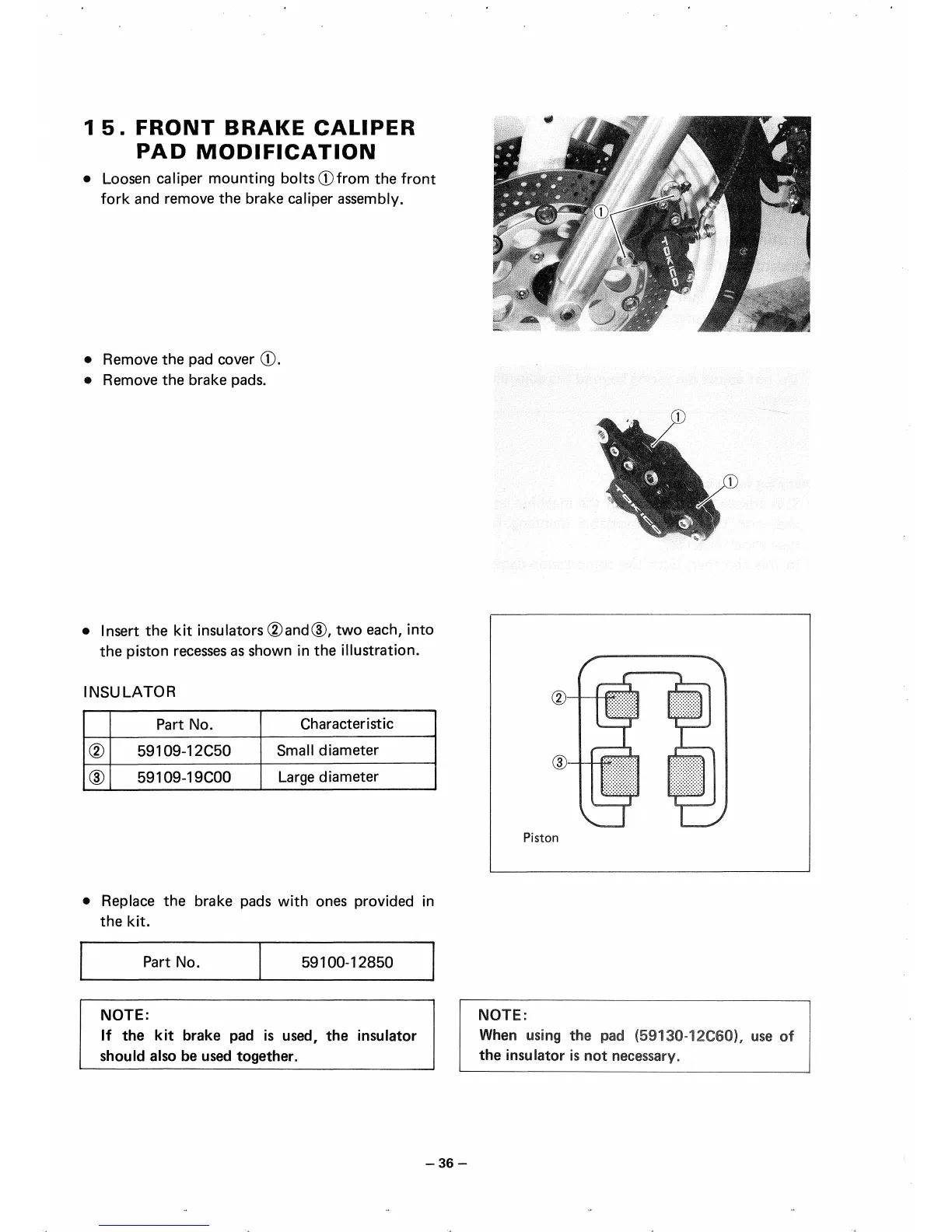

1 5. FRONT BRAKE CALIPER
PAD MODIFICATION
• Loosen caliper mounting bolts 0from the front
fork and remove the brake caliper assembly.
• Remove the pad cover 0.
® Remove the brake pads.
• Insert the kit insulators ©and®, two each, into
the piston recesses as shown in the illustration.
INSULATOR
®
\®_
Part No.
59109-12C50
59109-19C00
Characteristic
Small diameter
Large diameter
©4
®4
\
Piston
r.—i,
i—P*"
\\\
v» 1 1—*
\
/
Replace the brake pads with ones provided in
the kit.
Part No.
59100-12850
NOTE:
If the kit brake pad is used, the insulator
should also be used together.
NOTE:
When using the pad (59130-12C60)
f
use of
the insulator is not necessary.
-36

Suzuki RGV250 1989 Specifications

General

Compression Ratio	7.4:1
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brakes	Dual discs
Rear Brakes	Single disc
Wheelbase	1, 370 mm
Ignition	Electronic
Frame	Aluminum twin spar
Rear Suspension	Mono-shock
Dry Weight	128 kg
Dry Weight Alternative	282 lbs
Engine Type	249cc liquid-cooled two-stroke V-twin
