REF.
NO.
1.
2.
3.
4.
5.
PART NUMBER
11111-12C60
11141-12C50
11200-12C60
04211-11129
11241-12C50
DESCRIPTION
HEAD,
CYLINDER
GASKET, CYLINDER HEAD
CYLINDER ASSY
PIN,
CYLINDER HEAD
KNOCK
GASKET, CYLINDER
QTY/UNIT
2
2
2
4
2
REMARKS
t = 0.7
t = 0.6
2.

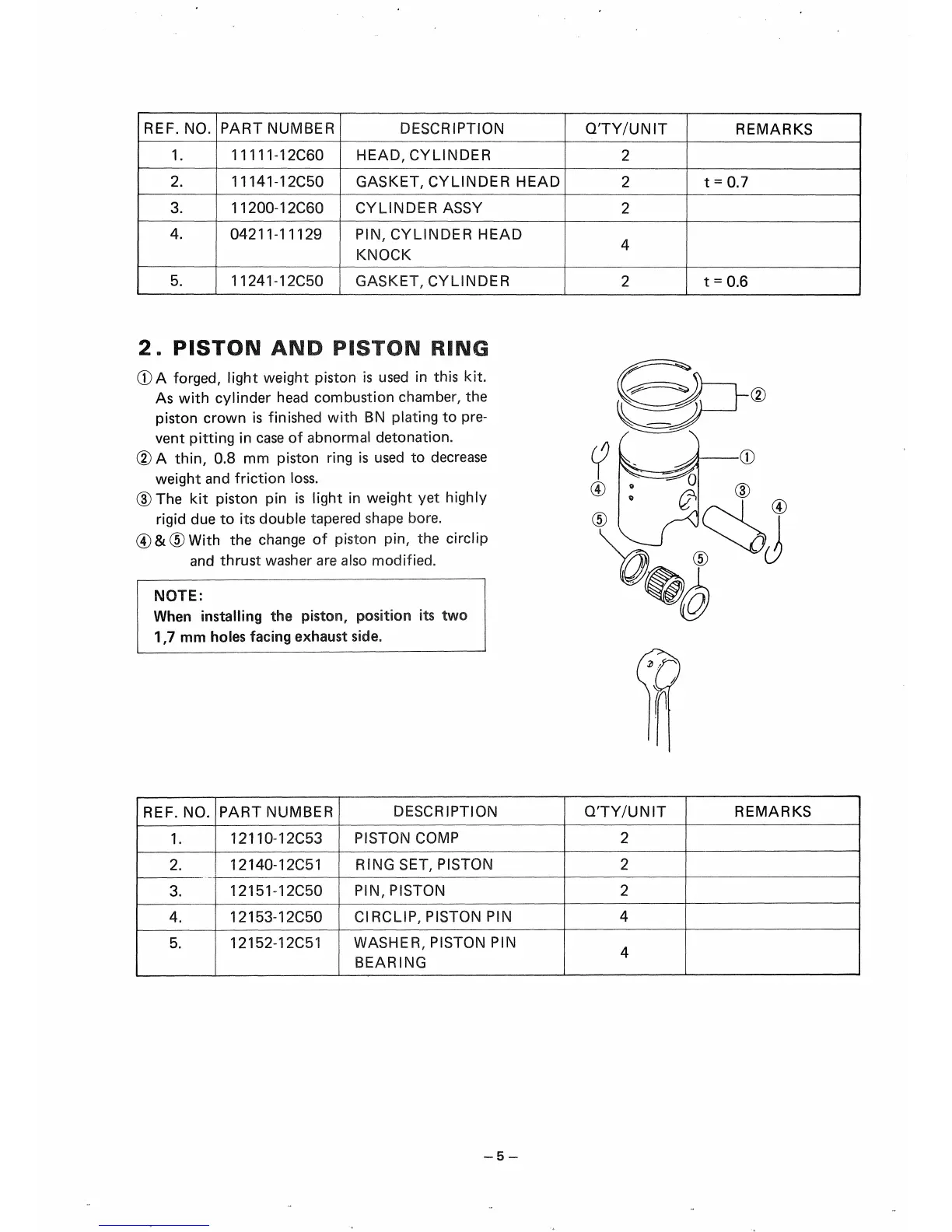

PISTON AND PISTON RING
® A forged, light weight piston is used in this kit.
As with cylinder head combustion chamber, the
piston crown is finished with BN plating to pre-
vent pitting in case of abnormal detonation.
©A
thin,
0.8 mm piston ring is used to decrease
weight and friction loss.
@The kit piston pin is light in weight yet highly
rigid due to its double tapered shape bore.
®&®With the change of piston pin, the circlip
and thrust washer are also modified.
NOTE:
When
installing the piston,
position
1,7 mm holes facing exhaust side.
its
two
[REF.
NO.
1.
2.
3.
4.
5.
PART NUMBER
12110-12C53
12140-12C51
12151-12C50
12153-12C50
12152-12C51
DESCRIPTION
PISTON COMP
RING SET, PISTON
PIN,
PISTON
CIRCLIP, PISTON PIN
WASHER, PISTON PIN
BEARING
Q'TY/UNIT
2
2
2
4
4
REMARKS
«5_
To Next Page
