Suzuki RGV250 1989 User Manual

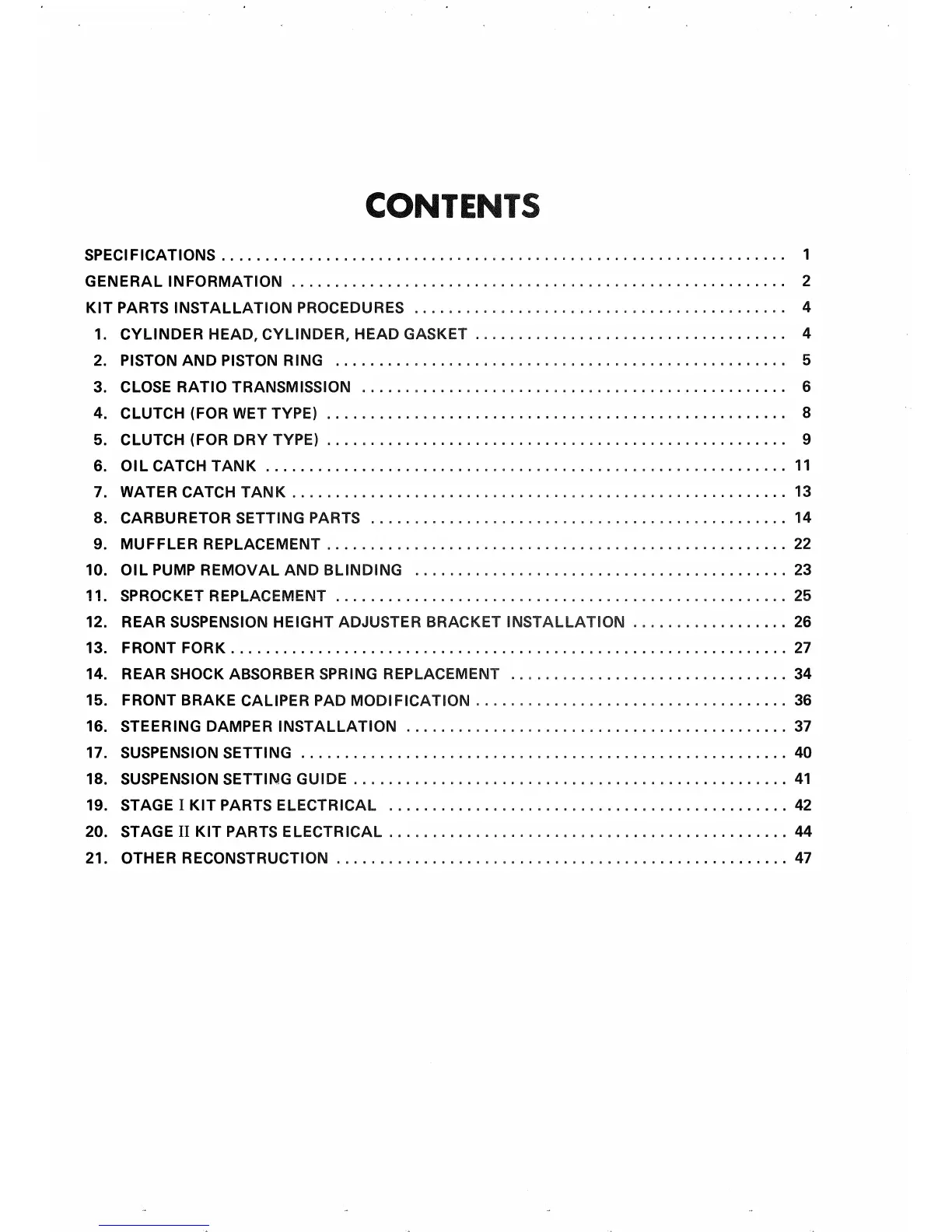

CONTENTS
SPECIFICATIONS 1
GENERAL INFORMATION 2
KIT PARTS INSTALLATION PROCEDURES 4
1. CYLINDER HEAD, CYLINDER, HEAD GASKET 4
2. PISTON AND PISTON RING 5
3. CLOSE RATIO TRANSMISSION 6
4. CLUTCH (FOR WET TYPE) 8
5. CLUTCH (FOR DRY TYPE) 9
6. OIL CATCH TANK 11
7. WATER CATCH TANK 13
8. CARBURETOR SETTING PARTS 14
9. MUFFLER REPLACEMENT 22
10. OIL PUMP REMOVAL AND BLINDING 23
11. SPROCKET REPLACEMENT 25
12. REAR SUSPENSION HEIGHT ADJUSTER BRACKET INSTALLATION 26
13. FRONT FORK 27
14. REAR SHOCK ABSORBER SPRING REPLACEMENT 34
15. FRONT BRAKE CALIPER PAD MODIFICATION 36
16. STEERING DAMPER INSTALLATION 37
17. SUSPENSION SETTING 40
18. SUSPENSION SETTING GUIDE 41
19. STAGE I KIT PARTS ELECTRICAL 42
20. STAGE II KIT PARTS ELECTRICAL 44
21. OTHER RECONSTRUCTION 47

Suzuki RGV250 1989 Specifications

General

Compression Ratio	7.4:1
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brakes	Dual discs
Rear Brakes	Single disc
Wheelbase	1, 370 mm
Ignition	Electronic
Frame	Aluminum twin spar
Rear Suspension	Mono-shock
Dry Weight	128 kg
Dry Weight Alternative	282 lbs
Engine Type	249cc liquid-cooled two-stroke V-twin
