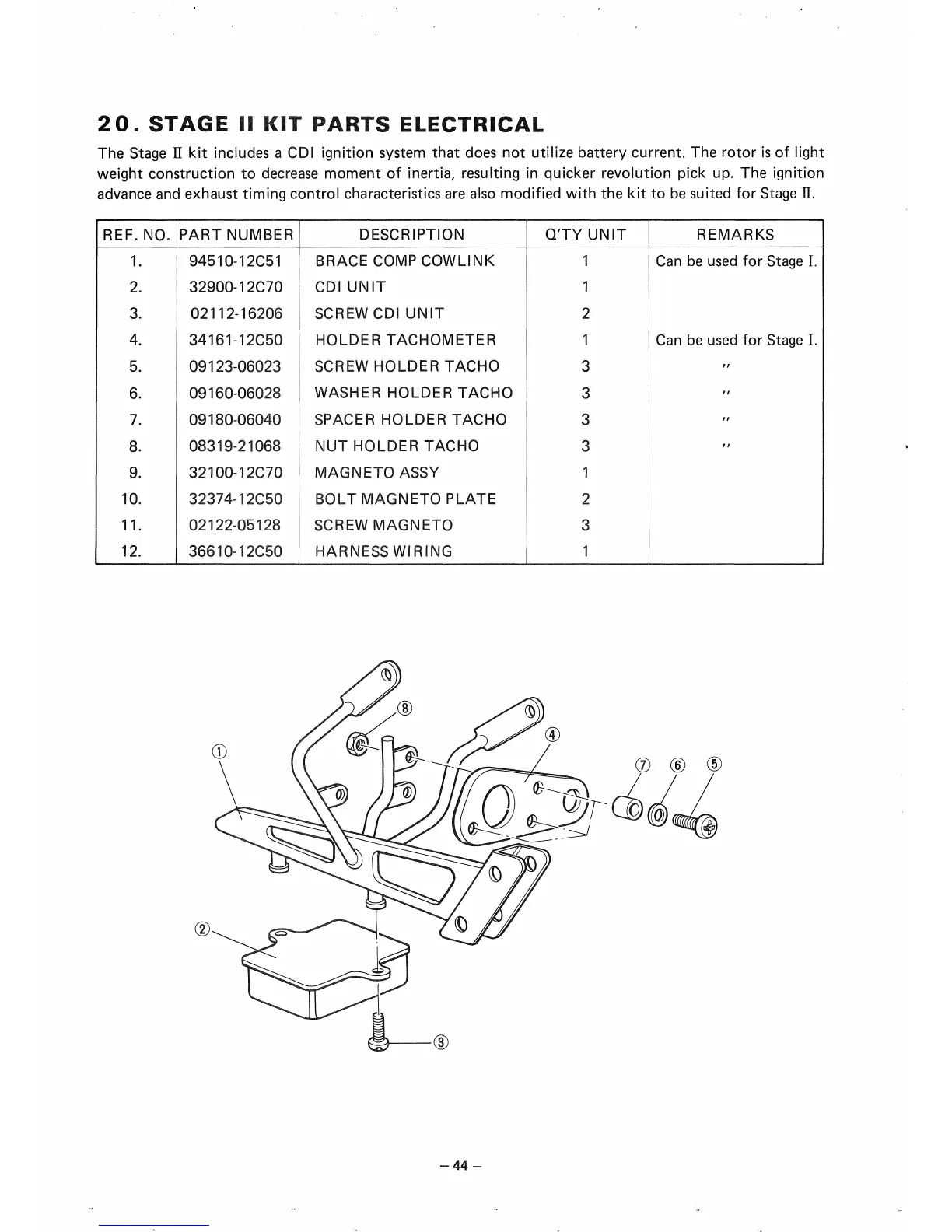

20. STAGE II KIT PARTS ELECTRICAL
The Stage II kit includes a GDI ignition system that does not utilize battery current. The rotor is of light
weight construction to decrease moment of inertia, resulting in quicker revolution pick up. The ignition
advance and exhaust timing control characteristics are also modified with the kit to be suited for Stage n.
1REF.NO.
^
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
PART NUMBER
94510-12C51
32900-12C70
02112-16206
34161-12C50
09123-06023
09160-06028
09180-06040
08319-21068
32100-12C70
32374-12C50
02122-05128
36610-12C50
DESCRIPTION
BRACE COMPCOWLINK
GDI UNIT
SCREW CDI UNIT
HOLDER TACHOMETER
SCREW HOLDER TACHO
WASHER HOLDER TACHO
SPACER HOLDER TACHO
NUT HOLDER TACHO
MAGNETO ASSY
BOLT MAGNETO PLATE
SCREW MAGNETO
HARNESS WIRING
Q'TYUNIT
1
1
2
1
3
3
3
3
1
2
3
1
REMARKS
Can be used for Stage I.
Can be used for Stage I.
//
11
••
II
-44-

Suzuki RGV250 1989 Specifications

General

Compression Ratio	7.4:1
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brakes	Dual discs
Rear Brakes	Single disc
Wheelbase	1, 370 mm
Ignition	Electronic
Frame	Aluminum twin spar
Rear Suspension	Mono-shock
Dry Weight	128 kg
Dry Weight Alternative	282 lbs
Engine Type	249cc liquid-cooled two-stroke V-twin
