SERVICES
58
WATER TANKS
Internal Water tank
(UK Caravans)

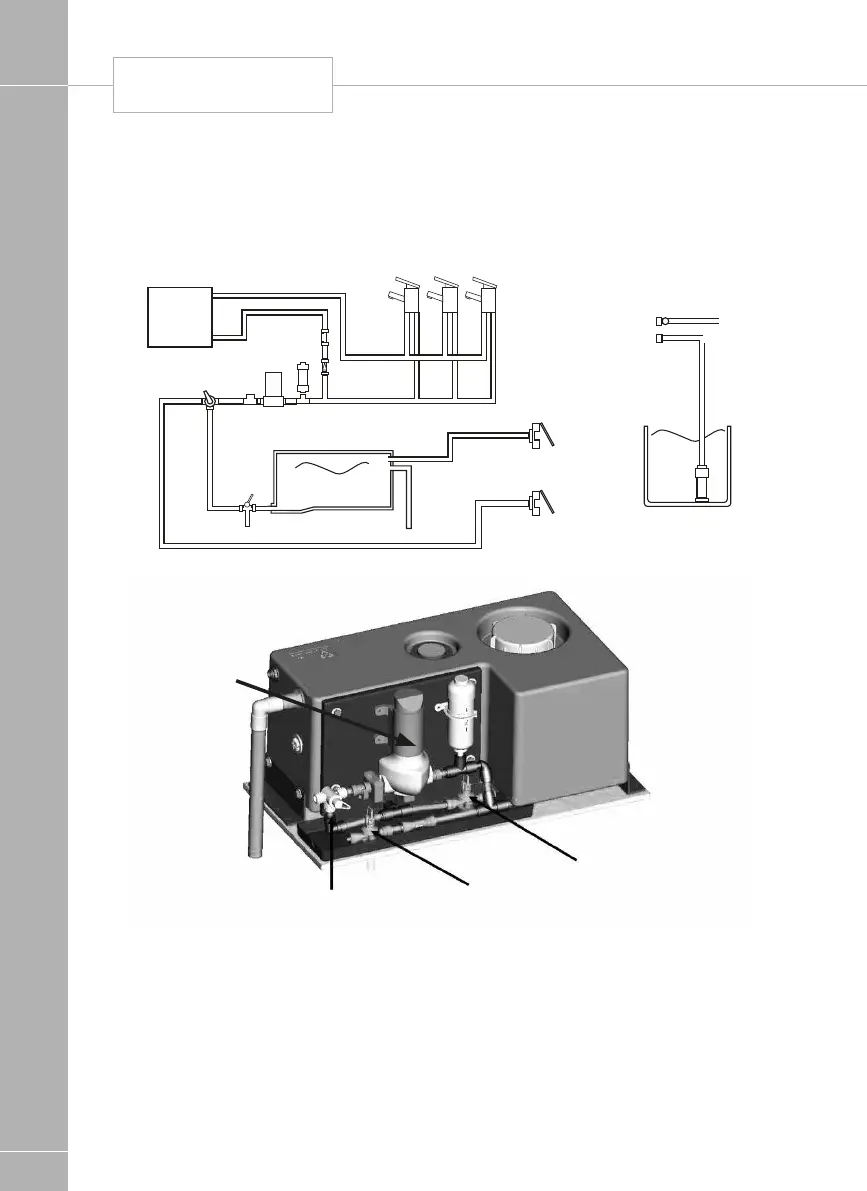

The following arrangement is used for a
caravan with internal water tank:
COMBI /
ALDE
BOILER
H
C
SELECTOR
VALVE
PUMP
TAPS
DRAIN
VALVE
TANK
OVERFLOW
WATER
INLET
(INC. 12v)
WATER
INLET
WATER
CARRIER
PUMP &
HOSE
WATERLINE
WATER TANK
ATER SYSTEM SCHEMATIC
2011 T6D WITH INTERNAL
Tank drain
valve
Water heater
drain valve
White selector
valve
Pump
• Two water inlets are fitted on the outside of
the caravan, on the offside. The upper inlet
is used to fill the internal water tank, and the
lower inlet is used to bypass the tank
• The inboard pump draws water from
whichever water source is in use.
• A White selector valve located close to the
pump is used to select the water supply from
the external source or the internal tank (see
valve positions on the next page).
• An external pump is supplied with
the caravan, this can be used with the lower
inlet when the onboard pump is being used
to draw water from an external source.
