Geniox Air Handling Unit - User Manual | 3060386
H Start-up, adjustments, use and commissioning
H.1 Print-outs on paper
The documents listed below are always printed on paper and delivered together with the units.
This User Manual with:
•Declarationofincorporation–Annex1
•Theuniquetechnicaldataforthisunit-Annex2
•Wiringdiagrams-Annex16
•Operator’sguidefortheSystemaircontrolpanel-Annex17
H.2 Start-up by installer
All protection and safety measures must be met before start-up of the unit. The main supply voltage must also be checked. The main
supply voltage must be measured at the supply terminals in the cabinet.
24 | Star-up, adjustments, use and commissioning

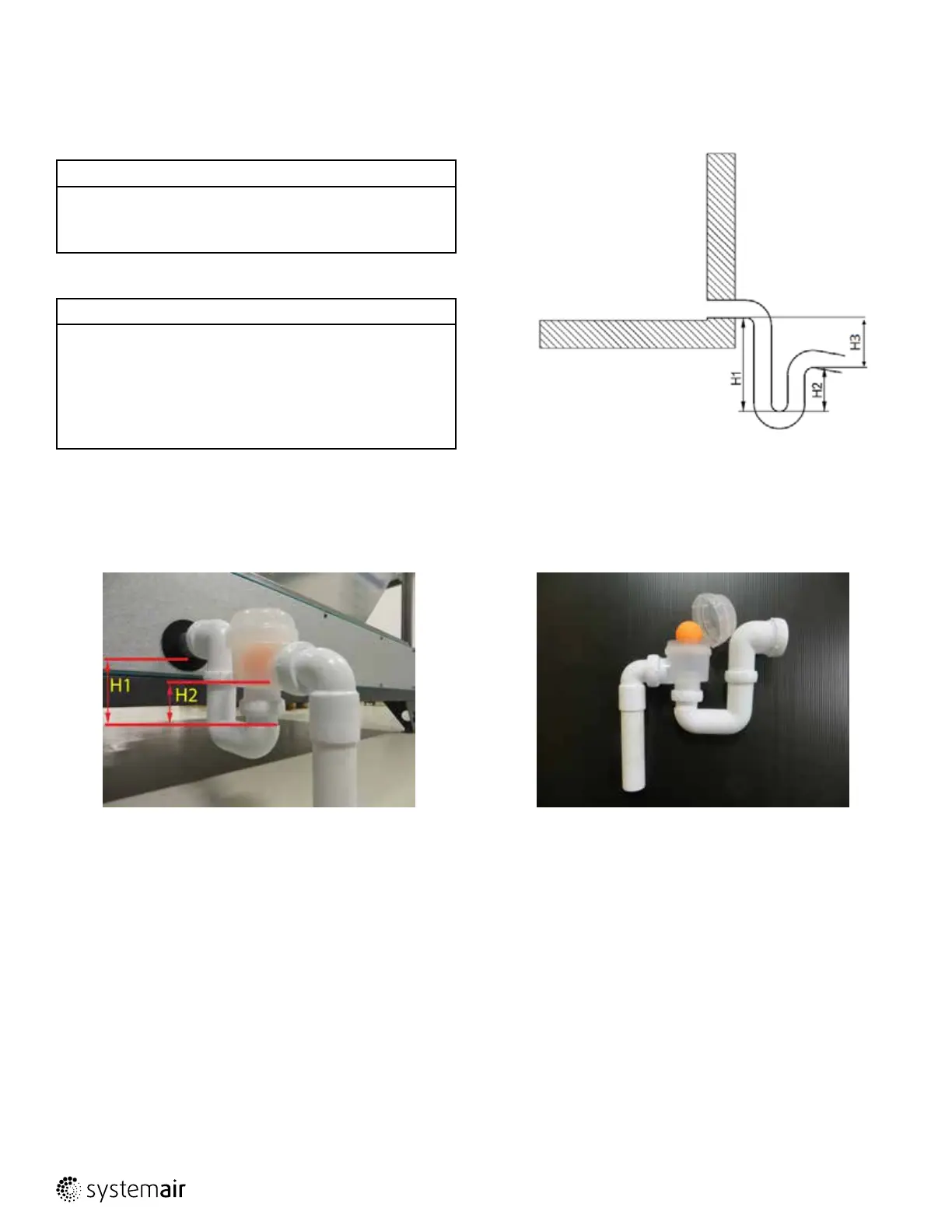

H1 = H2 + H3
Where,
H3 = 1 inch for each inch of negative pressure + 1 inch
H2 = ½ *H3
Table 2 Positive pressure P (in w.g.)
H1 = H2 + H3
Where,
H3= ½ inch (minimum)
H2 = ½ inch + unit positive static pressure at coil discharge with
loaded/dirtylters.
Notice: Installation of water trap is not included.
Remember to check that there is water in the water trap.
Table 1 Negative pressure P (in w.g.)
