TRANSPORT
HOISTING THE MACHINE
• Know and use the correct crane signals.
• Check the hoisting equipment for
damaged or missing parts on a daily
basis and replace as necessary.
• When hoisting, use a wire rope capable
of lifting the machine mass.
•
Hoist the machine in such a manner
described in the procedure below. Do
not do it in any other manner. Doing so
is dangerous as it may result in the
machine losing its balance.
•
Do not hoist the machine with an
operator on it.
•
When hoisting, hoist slowly so that the
machine does not tip.
•
Keep everyone out of the area when
hoisting. Do not move the machine over
the heads of the persons.
IMPOR
TANT: This hoisting method
applies to machines with standard
specifications. The center of gravity
differs according to the attachments and
optional equipment installed.
Contact your T
akeuchi service agent for
details.
HOISTING THE MACHINE
Hoisting
1. Slew the upperstructure so that the dozer
blade is at the rear of the machine (set the
upperstructure parallel to the track frame).
2. Raise the dozer blade fully.
3. Extend the bucket cylinder and arm
cylinder fully to raise the boom to its
uppermost position.
4.
If the boom is swung to either the left or
right side, set it in the neutral position.
5. Raise the safety lock lever to the locked
position.
6.
Stop the engine, remove the starter key
and get off the machine.

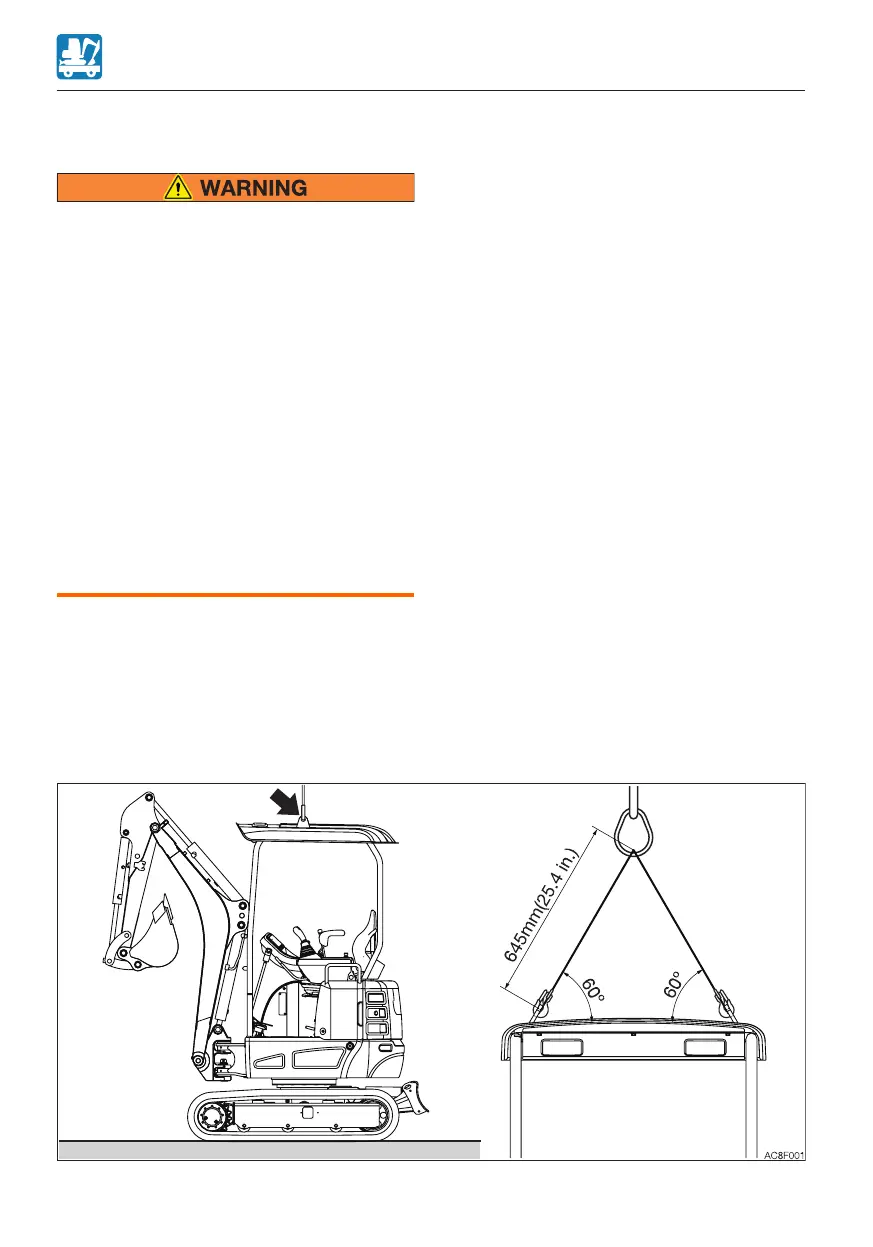

7. Install the wire ropes as shown on the
figure below. The hoisting angle must be
60°; otherwise, the hook may be
damaged.
8.
Hoist the machine slowly until it leaves the
ground.
9. Stop hoisting until the machine becomes
stable, and then start hoisting the machine
slowly again.
