CONTROLS

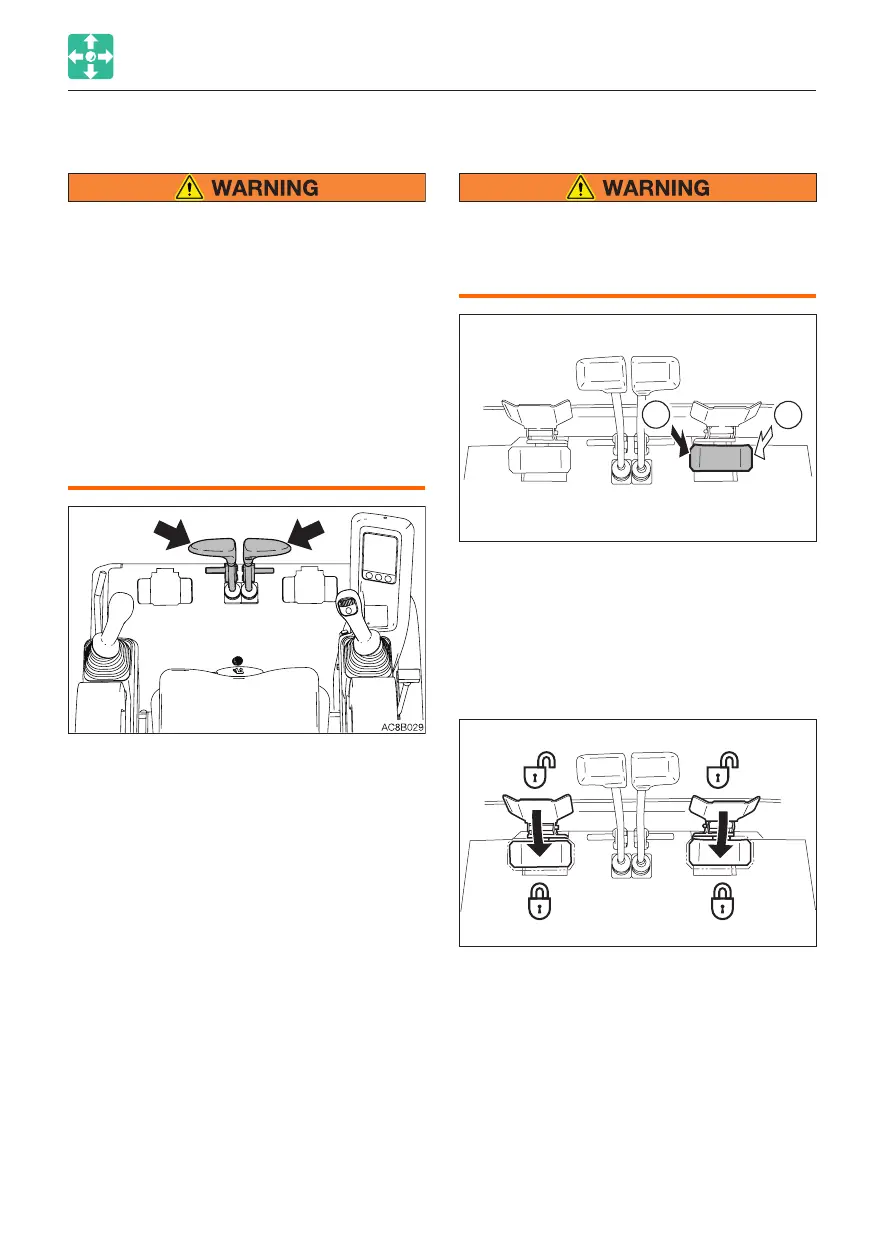

TRAVEL LEVERS/PEDALS
• Before operating the travel levers/
pedals, make sure that the dozer blade
is to the front of the operator’s seat.
Remember that when the dozer blade is
to the rear of the operator’s seat, the
travel levers/pedals must be operated in
the reverse direction from when it is to
the front.
• Do not rest your foot on the pedal
unless operating it for traveling. If the
pedal is accidentally stepped while
working, the machine may suddenly
move and cause serious injury or death.
Use these levers/pedals to move forward or
backward and to change directions. Fold the
pedals when not being used.
Refer to “Operating the travel levers” on
page 3-12.
LEVERS AND PEDALS
BOOM SWING PEDAL
Keep the pedal cover to the locked
position when not using the pedal.
Stepping on a pedal accidentally when it
is not locked may cause accidents.
Use this pedal to operate the boom swing.
(A) ...... Boom swing right
(B) ..... Boom swing left
Refer to “Operating the boom swing” on
page 3-17.
Pedal lock
Set the pedal cover over the pedal to lock it.
Open the pedal cover fr
om the pedal to
unlock it.
