Takeuchi TB215R User Manual

2-8
CONTROLS

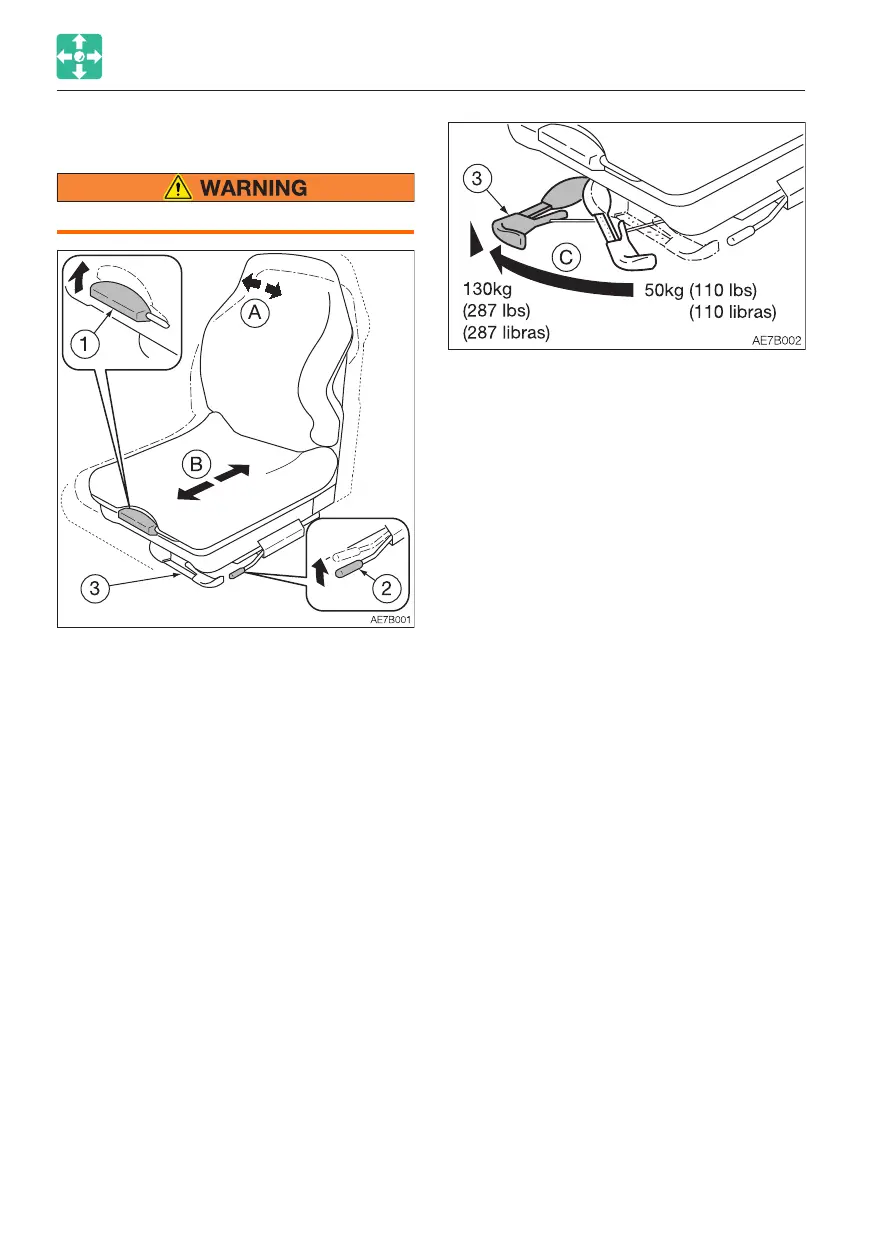

HIGH-BACK SEAT (IF EQUIPPED)
Adjust and secure the seat.
(A) Adjusting the backrest
1. Sit up and sit back in the chair.
2. Pull up the lever (1), recline the backrest
by using the spring force. Release the
lever (1) at the desired angle to secure the
backrest.
(B) Fore-and-aft adjustment
1. Pull up the lever (2) and slide the seat
backward or forward to the desired
position for operation of machine.
2.
Release the lever (2) at the desired
position to secure the seat.
Adjustment range: 10 positions, in 150mm
(5.9in.)
(C) Adjusting accor
ding to operator’s
weight
1.
Turn the handle (3) until the display
indicates the weight of operator.
Adjustment range: 50 to 130 kg (110 to
287 lbs)
2.
When adjusting for a weight lower than
the currently set weight, first turn the
handle (3) as far as it goes to cancel the
setting, then readjust.
