2-12
CONTROLS
MULTI-DATA DISPLAY
10. LCD (liquid crystal display)
It displays various data on hour meter, trip
meter and the machine.

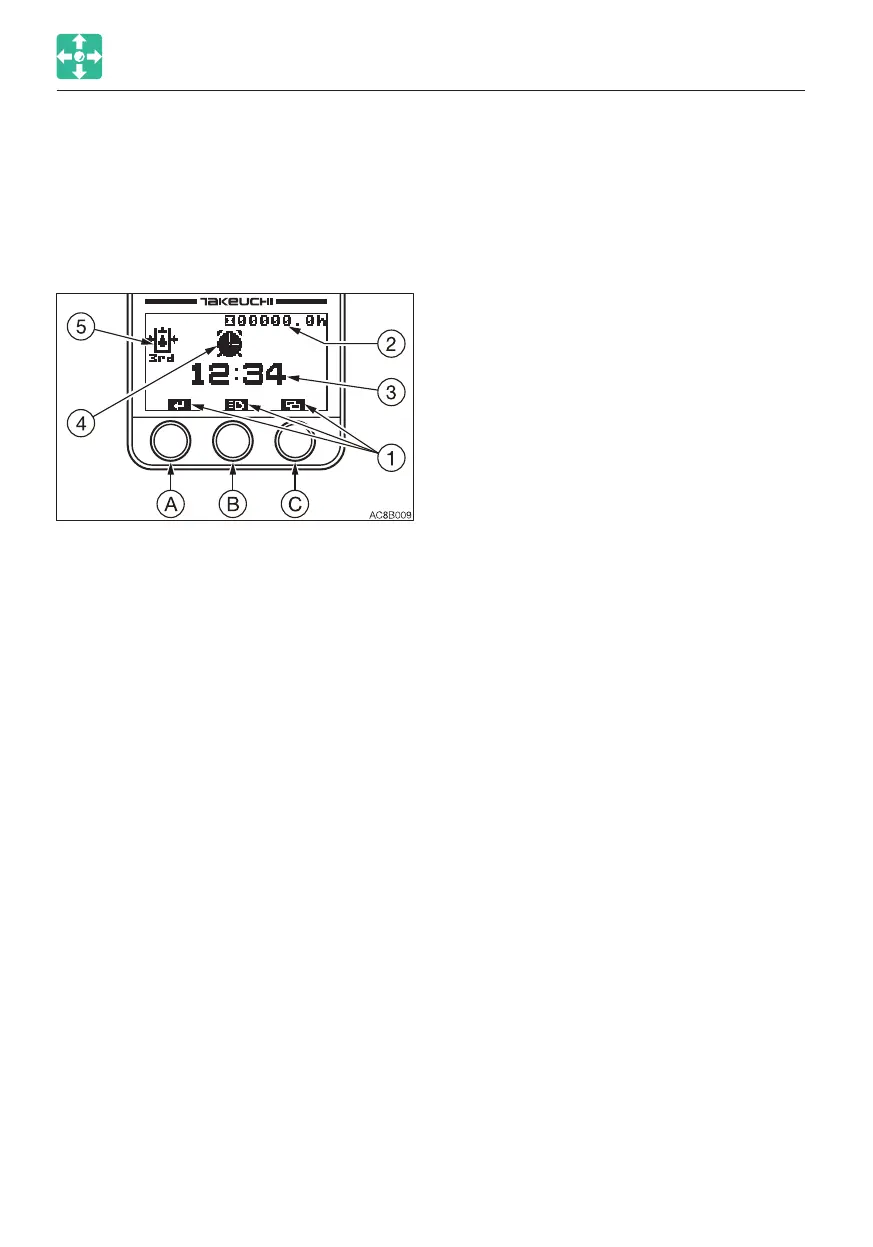

Home scr
een
1. Key function display
The key function display changes
depending on the screens (Home, Menu
and each setting)
For actual operation, use the buttons,
“A”, “B” and “C”, located beneath each
symbol. Refer to “Operating each key” on
page 2-12 to 2-17.
2. Hour meter/T
rip meter
• Hour meter
Displays the total engine running time in
hours.
The rightmost digit indicates tenths of
hours (6 minutes).
Set the inspection and maintenance
intervals according to the time displayed
on the hour meter.
• Trip meter
Three patterns of desired operating hours
can be displayed.
Refer to “Trip meter display” on page 2-
13.
3. Time display
Displays the time set.
Refer to “Time setting” on page 2-16.
INSTRUMENT CLUSTER
4. Alarm indicator lamp
The clock symbol appears when the
alarm function is turned on.
Refer to “Alarm setting” on page 2-16.
5. Auxiliary 3rd hydraulic pressure
warning lamp (If equipped)
This lamp lights up and an alarm sounds
if the fixed side (left “e”) pressure of the
auxiliary 3rd drops abnormally while the
engine is running or if the quick-hitch is
being removed or installed.
To Next Page
