MAINTENANCE
WHEN REQUIRED
REPLACING THE BUCKET TEETH
Replace the bucket teeth if the tooth points
are worn. Do not wait until the bucket is
damaged.
• Before performing maintenance or
repairs under the machine, lower all
moveable working equipment to the
ground or in the lowermost position.
• To prevent unexpected movement,
firmly secure the working equipment
when repairing or replacing the bucket
teeth or side cutter.
• When using a hammer, pins may fly out
or metal particles may be scattered.
This may lead to serious injury.
· If hard metal parts such as pins,
bucket teeth, side cutter or bearings
are hit with a hammer, wear protective
gear such as safety goggles and
gloves.
·
When hitting pins or bucket teeth,
always check that there is no one in
the surrounding area.
• Do not allow unauthorized personnel in
the work area while working.
WHEN REQUIRED

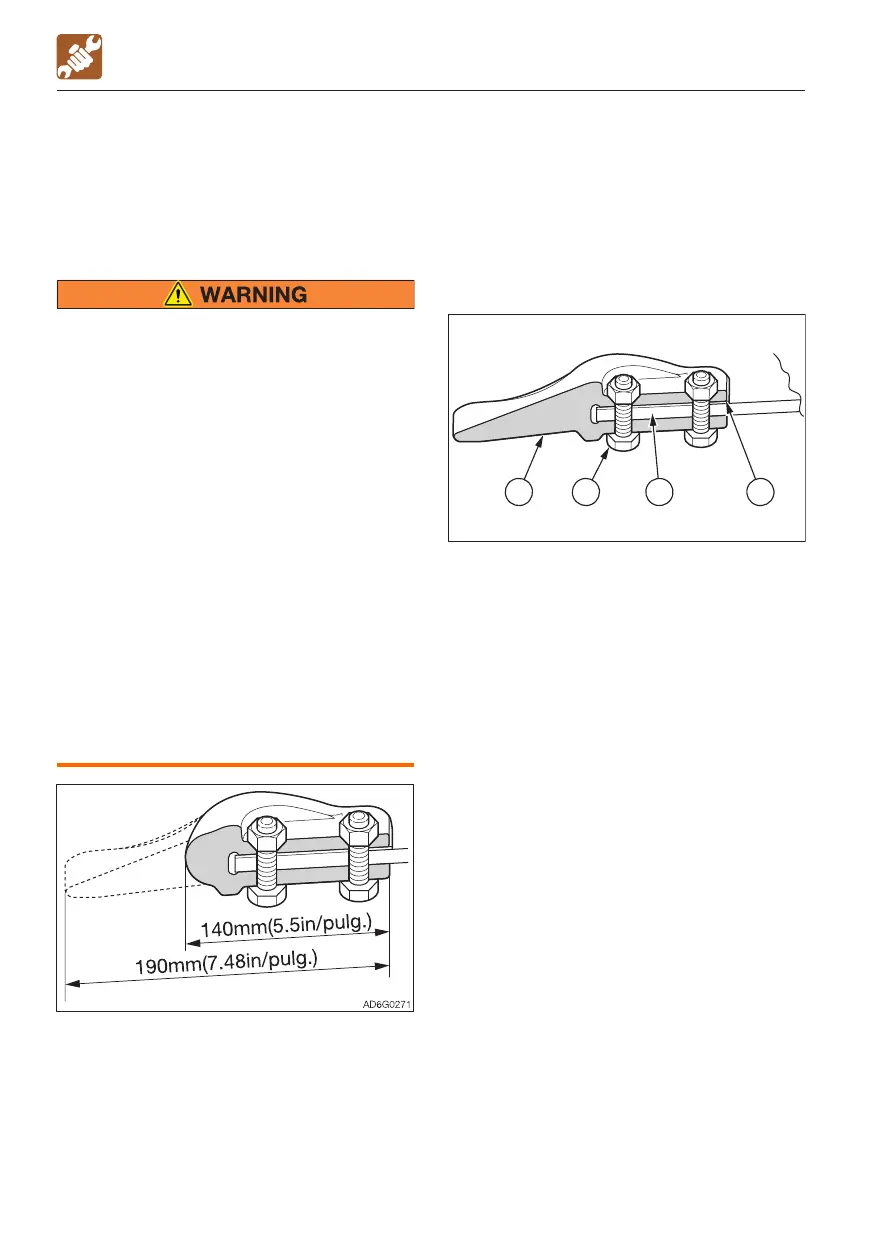

Replace the teeth if they are worn to 140
mm (5.5 in.).
Removal
1.
Clean the bucket and park the machine in
a flat, safe place where the ground is hard.
2. Set the bottom surface of the bucket flat
and lower it on a block so that the bolt (1)
can be taken out.
3.
Remove the starter key, and then check
that the bucket is stable.
4.
Remove the bolt (1).
5. Remove the teeth (2) and the shim (3).
To Next Page
