5-49
MAINTENANCE
Installation
1. Clean the section where the teeth are to
be installed. If there is gravel or mud on
the section, the tooth point may not go in
all the way.
2.
Put the teeth into the bucket.
3. If the teeth are not secured, insert a shim
to reduce the clearance.
4. Insert the bolt from the outside of the
bucket and tighten it with the nut.
·
Tightening torque: 102 N·m (75.2 ft-lb)

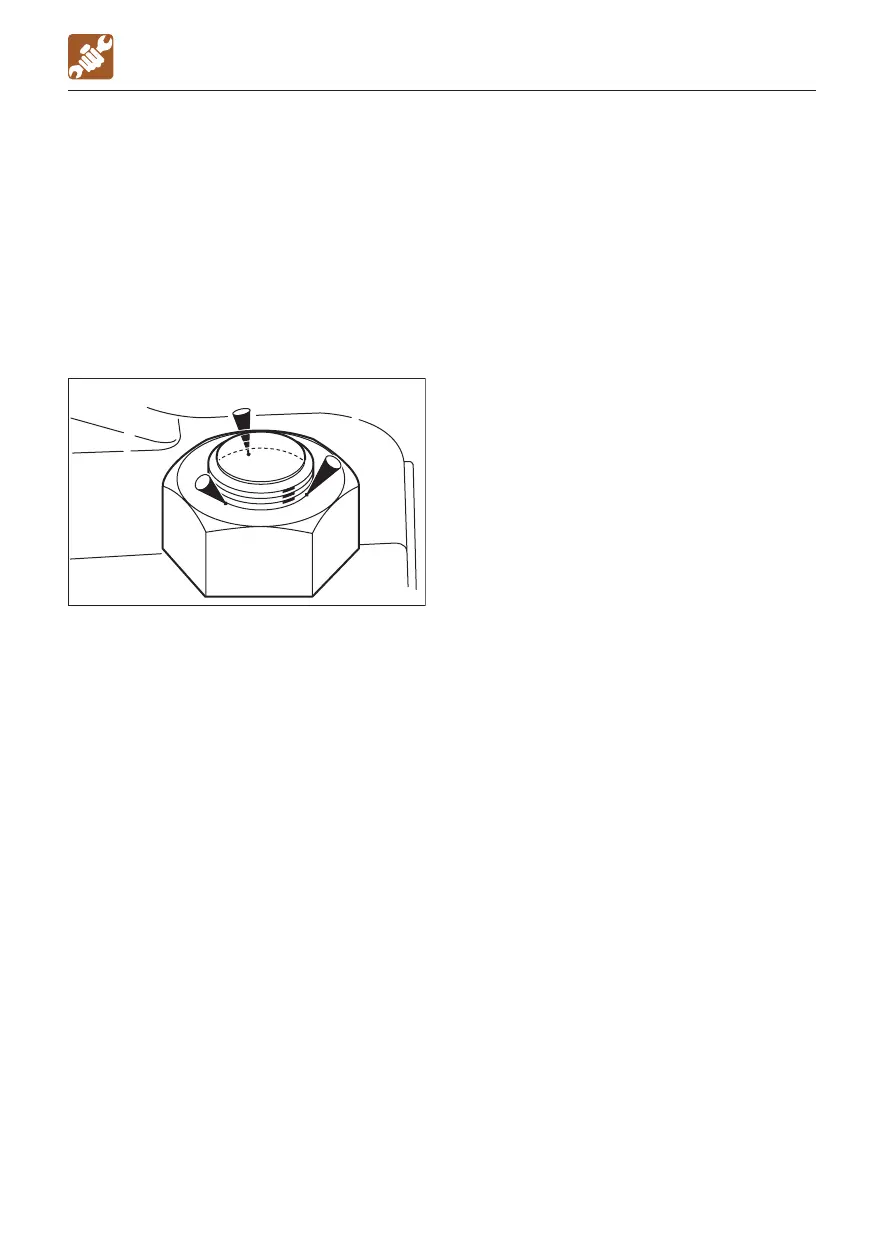

5. Caulk the bolt with a punch or weld it at
three spots on the threaded portion (nut
side).
WHEN REQUIRED
To Next Page
