9.6 RJ45-to-DB9 Pinout
Introduction
If you plan to use another RJ45-to-DB9 adaptor than the one that you can purchase at your service provider, make sure that
the adaptor is using the pinout described below.

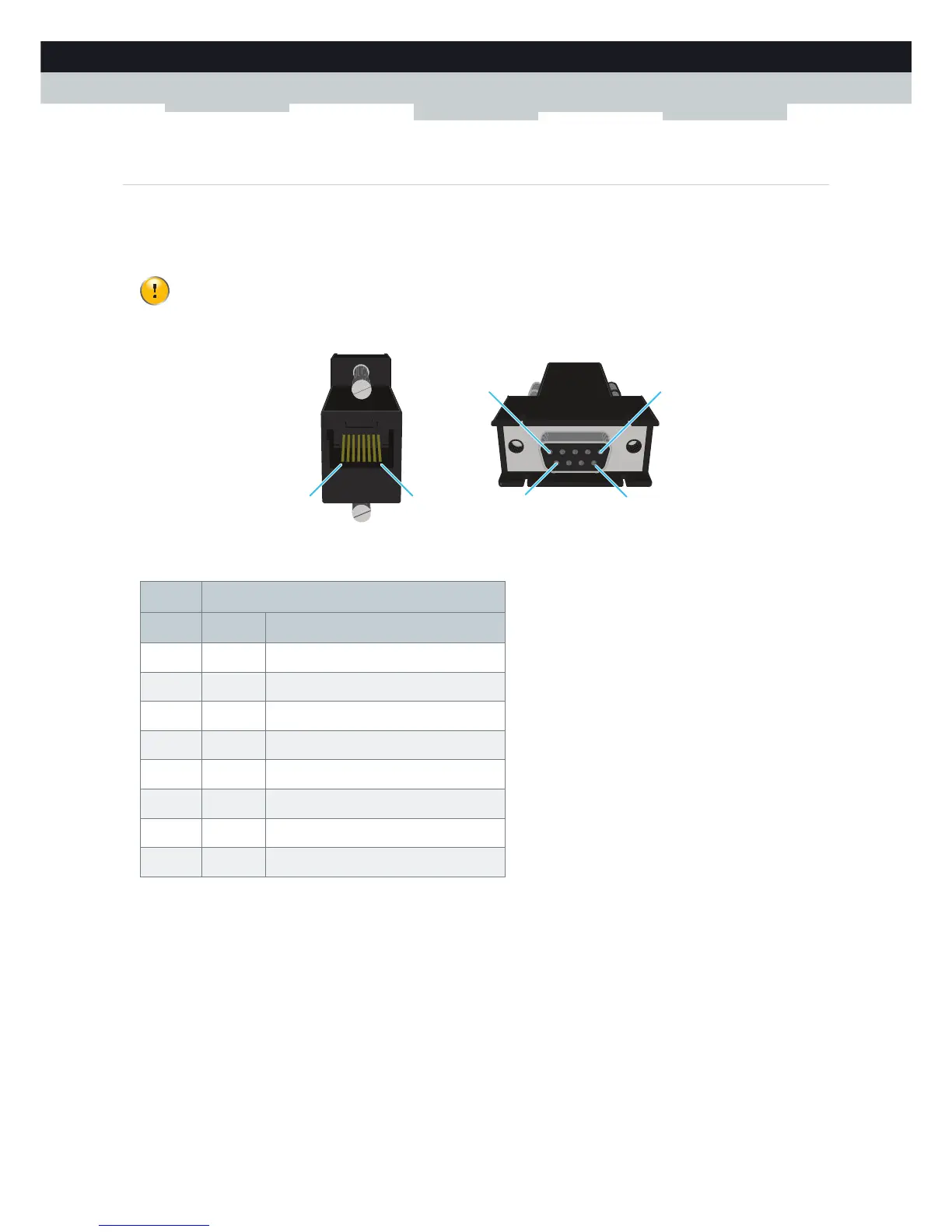

Pin layout
Internal wiring
Using other cables than provided by your service provider, may damage your equipment.
RJ45 DB-9
Pin Pin Wire Colour
18Black
2 6 Brown
32 Red
4 5 Orange
5 5 Yellow
6 3 Green
74Blue
8 7 White
8
1
9
6
51
