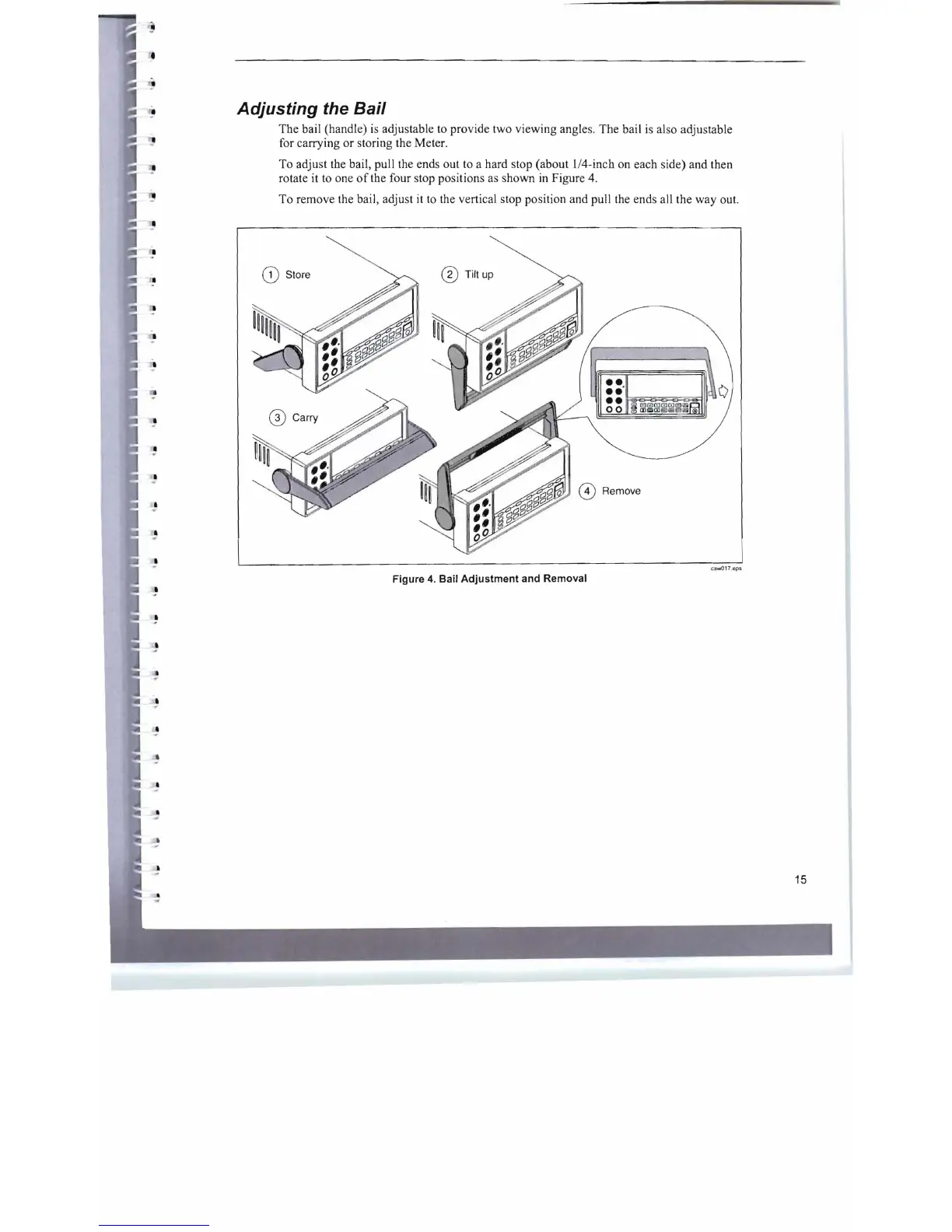

Adjusting the Bail
The bail (handle)
is
adjustable to provide two viewing angles.
The
bail is also adjustable
for carrying
or
storing the Meter.
To adjust the bail, pull the ends out to a hard stop (about 1!4-inch on each side) and then
rotate
it
to one
of
the four stop positions as shown
in
Figure 4.
To
remove the bail, adjust it to the vertical stop position and pull the ends all the way out.
CD
Store
® Tilt up
0
Carry
caw0
17
.
eps
Figure
4.
Bail Adjustment and Removal
15
