Tektronix DMM4020 Safety And Installation Instructions

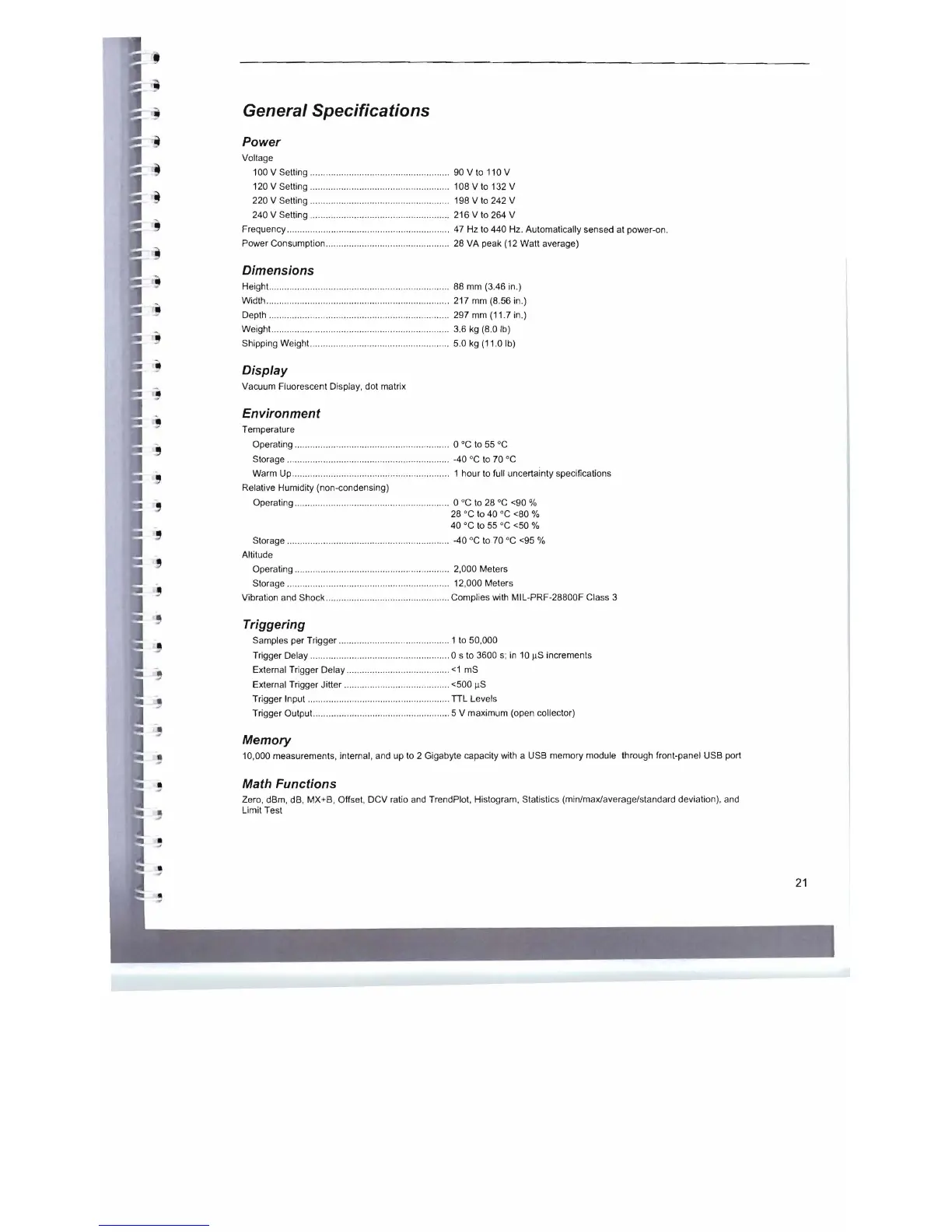

General Specifications
Power
Voltage
100 V Setting ............
.. " ... ..... .. ........... ........... .. ... 90Vto 110V
120 V Setting ......................................... .. .......... 108 V to 132 V
220 V Setting ............................ "
.. ... ...... .. . .. ....... 198 V to 242 V
240 V Setting ...........................................
.. ........ 216 V to 264 V
Frequency..............
.. ................... .. ..... .. ..... 47 Hz to 440 Hz. Automatically sensed at power-on.
Power Consumption
..... .. ....................... .. ............... 28 VA peak (12 Watt average)
Dimensions
Height.. ................ ...... .... .. .. .. .............. .. ........... .. .... 88 mm (3.46 in.)
Width .................
.. .... ................. .... ... ....................... 217 mm (8.56 in.)
Depth ....................................................
.. .............. 297 mm (11.7 in.)
Weight.. .....................
.... ........................... .. .. .. 3.6 kg (8.0 Ib)
Shipping Weight ...................
.. ................... .. .. ..... 5.0 kg (11 .0 Ib)
Display
Vacuum Fluorescent Display, dot matrix
Environment
Temperature
Operating..............
.. ... ...... .................. . .. ............. . 0 °C to 55 °C
Storage .............................................................. -40 °C
to 70°C
Warm Up ........ .... .... .... .... .............. .. ...... 1 hour to full uncertainty specifications
Relative Humidity (non-condensing)
Operating
.. ........ .. .......... .................. ..... .. ..... .... .. 0 °C to 28°C <90 %
28 °C to 40°C <80 %
40 °C to 55 °C <50 %
Storage ........ .
.. ................. .......... .... ..... ... .. ...... ... -40°C to 70 °C <95 %
Altitude
Operating ............
.. .. ............. .. ............ .... . .. ........ 2,000 Meters
Storage
.. ..................... .. .. ........................... 12 .000 Meters
Vibration and
Shock ..................
.. ................. .. .. .... .. Complies with MIL-PRF-28800F Class 3
Triggering
Samples per Trigger ........................................ 1 to 50,000
Trigger Delay ....
.. ......... ... .................. .. .. .......... .. 0 s to 3600 s; in 10 !is increments
External Trigger Delay .
.. .. ............... .... ... .. ........... <1 mS
External Trigger Jitter ......................................... <500
/-IS
Trigger Input ... .................... .. ....... .. ....... .. ......... .. TIL Levels
Trigger Output. ..........
.. .. . .. .. ........... ......... .. ....... ... 5 V maximum (open collector)
Memory
10,000 measurements, internal, and up to 2 Gigabyte capacity with a USB memory module through front-panel USB port
Math Functions
Zero, dBm, dB, MX+B, Offset, DCV ratio and TrendPlot, Histogram, Statistics (min/max/average/standard deviation), and
Limit Test
21
