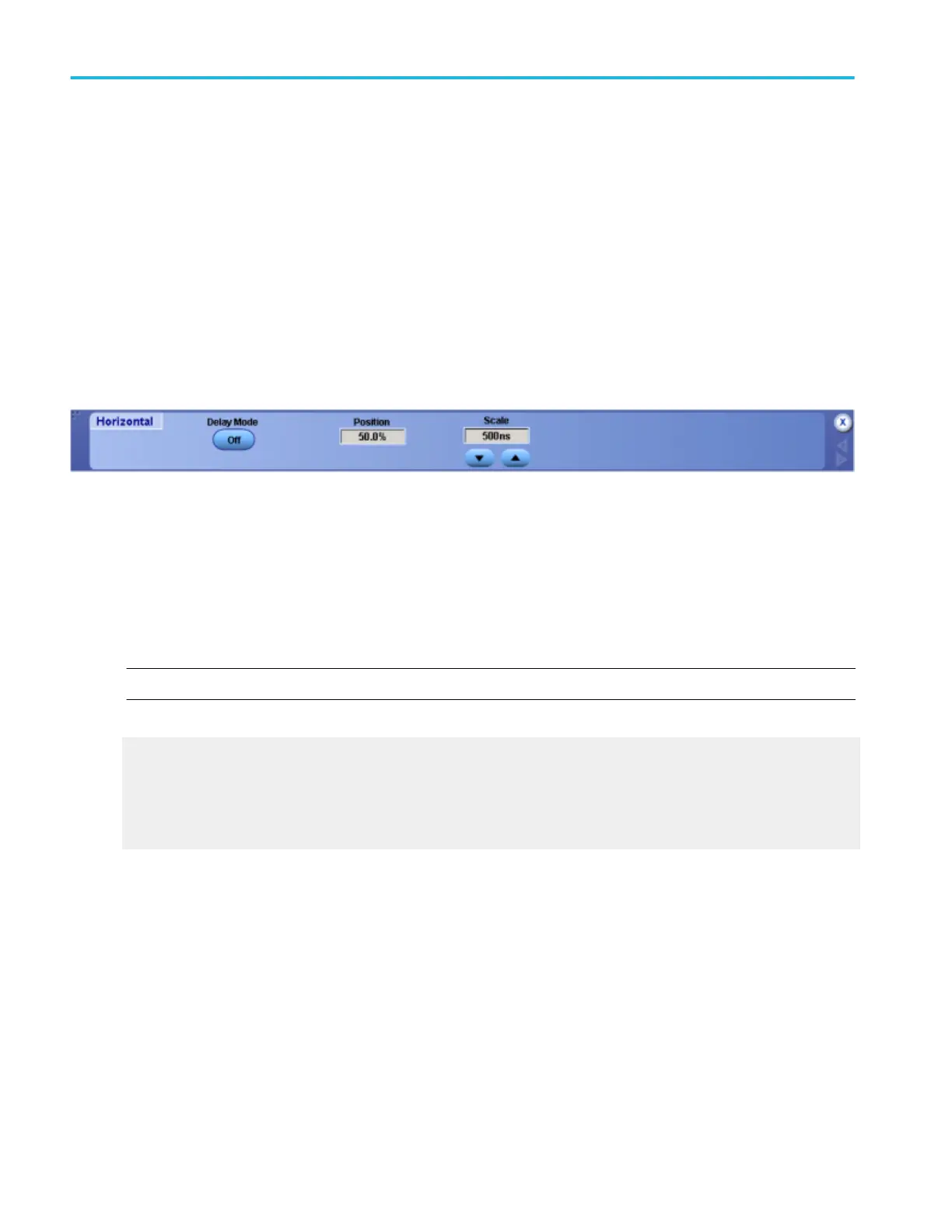

Horizontal Position-Scale control window

From the Horiz /Acq menu, select Position/Scale.

Overview

Use the Horizontal control window to set the horizontal position and scale of displayed waveforms.

For information on the controls, click the buttons.

■

Delay Mode

■

Position

■

Scale

To use

■

Click the Delay Mode button to toggle the horizontal delay on.

Behavior

You can use this control window to turn on horizontal delay so the acquisition window can be focused on events that occur at a

fixed delay after the trigger point.

NOTE. The dedicated Horizontal controls on the front panel also perform the same functions.

What do you want to do next?

Learn more about the Horizontal Position controls.

Learn more about the Horizontal Scale controls.

Learn more about the Horizontal Delay Mode.

Learn more about the Horizontal controls.

Horizontal and acquisition setups
