3. Click the D7-D0 or the D15-D8 tab, and then the desired digital channel buttons to activate the controls for the logic source.
4. From the Vertical menu, select Probe Controls, and then click the Setup button.
5. Click the Properties button to display information on the logic probe and the status of the trigger path alignment.
What do you want to do next?
Learn about setting up the digital channels.
Learn about digital setups.
Learn about setting up a bus.
Probe setup control window (Probe compensation)
From the Vertical menu, select Probe Cal.
Overview
Use the Probe Setup control window to compensate a probe; this will improve the gain and offset accuracy. Probe compensation
is specific to the channel to which it is connected.
NOTE. To compensate/calibrate a P7520A or P7600 series probe, use the procedure in the probe manual. Use the manual that
came with your probe, the manual in the documentation browser that is accessible from the instrument desktop, or download the
manual from the Tektronix Web site.

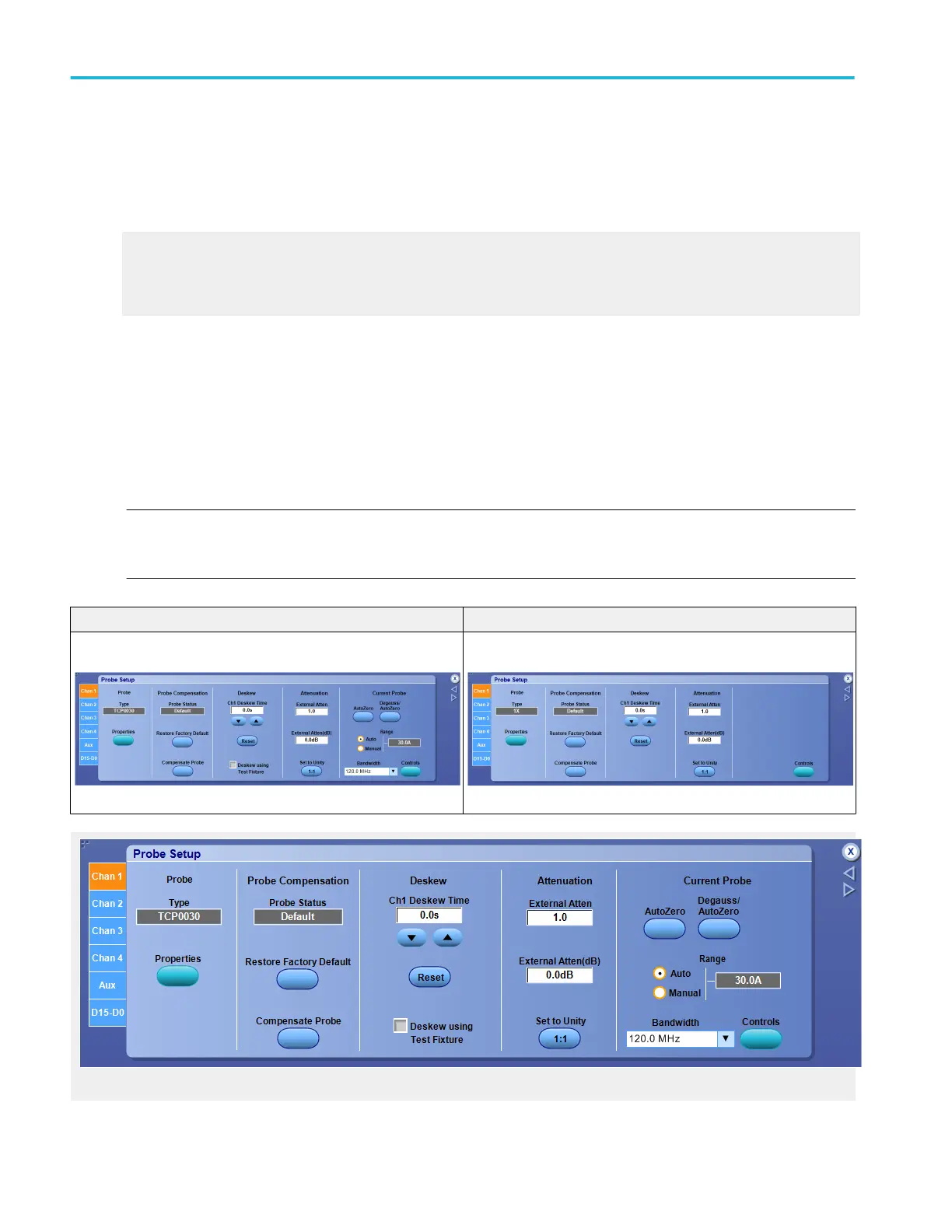

Click for DPO7000C and MSO/DPO5000B instruments: Click for MSO/DPO70000C/DX/SX instruments:
The following screen appears on MSO/DPO5000B Series instruments:
Vertical setups
502 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
