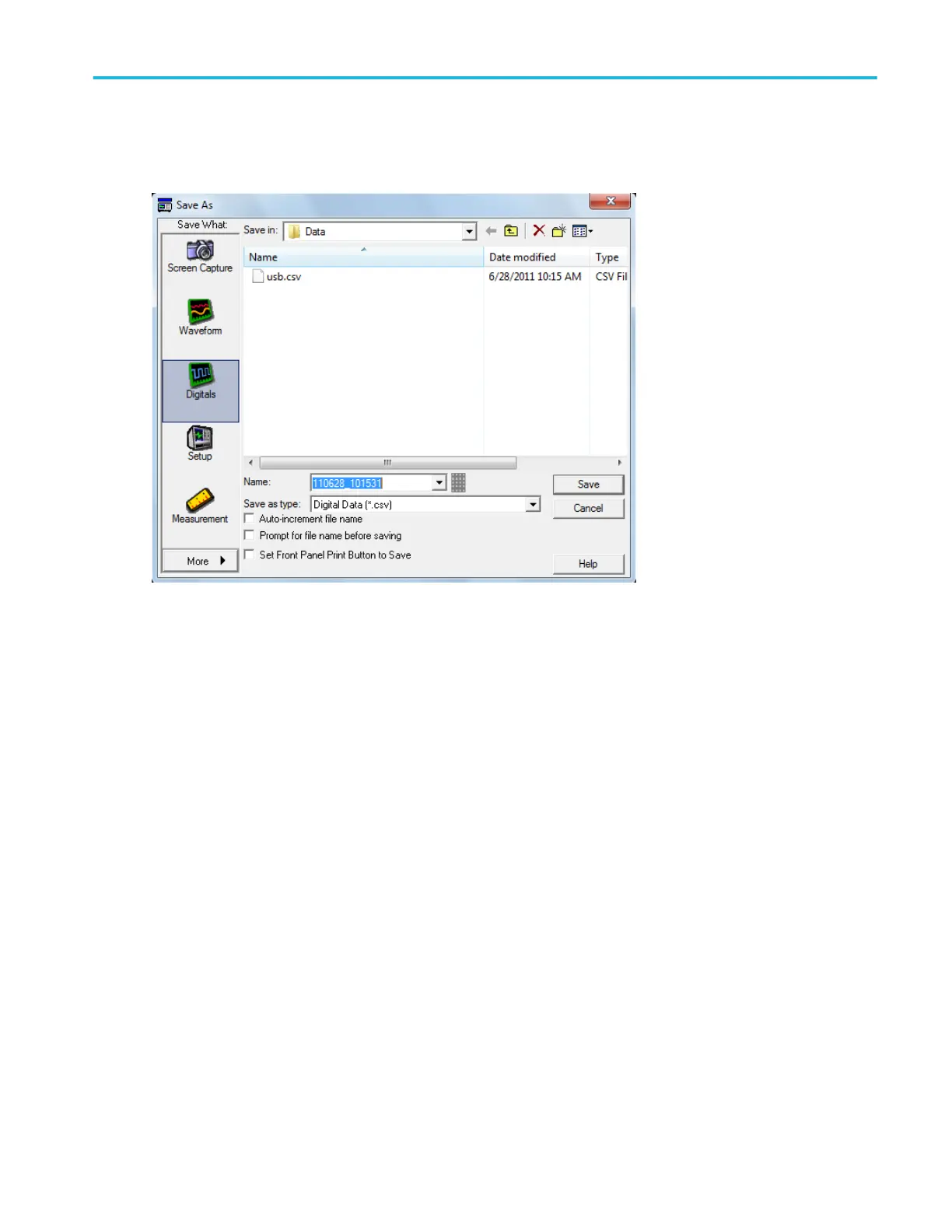

Overview. Use this dialog box to save the values of logic waveforms to a .csv file.
To use.
1. Under Save What, click Digitals.
2. Name the file and set the Save as type parameters for the digital data you want to save.
3. Click the Save button to accept any changes and close the dialog box.
Behavior. Digital data is saved in C:\Users\[Username]\Tektronix\TekScope\data unless you select a different
location.
Save as dialog box (Timestamp)
From the File menu, highlight Save As; then select Timestamp Table from the submenu.
File menu
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 545
