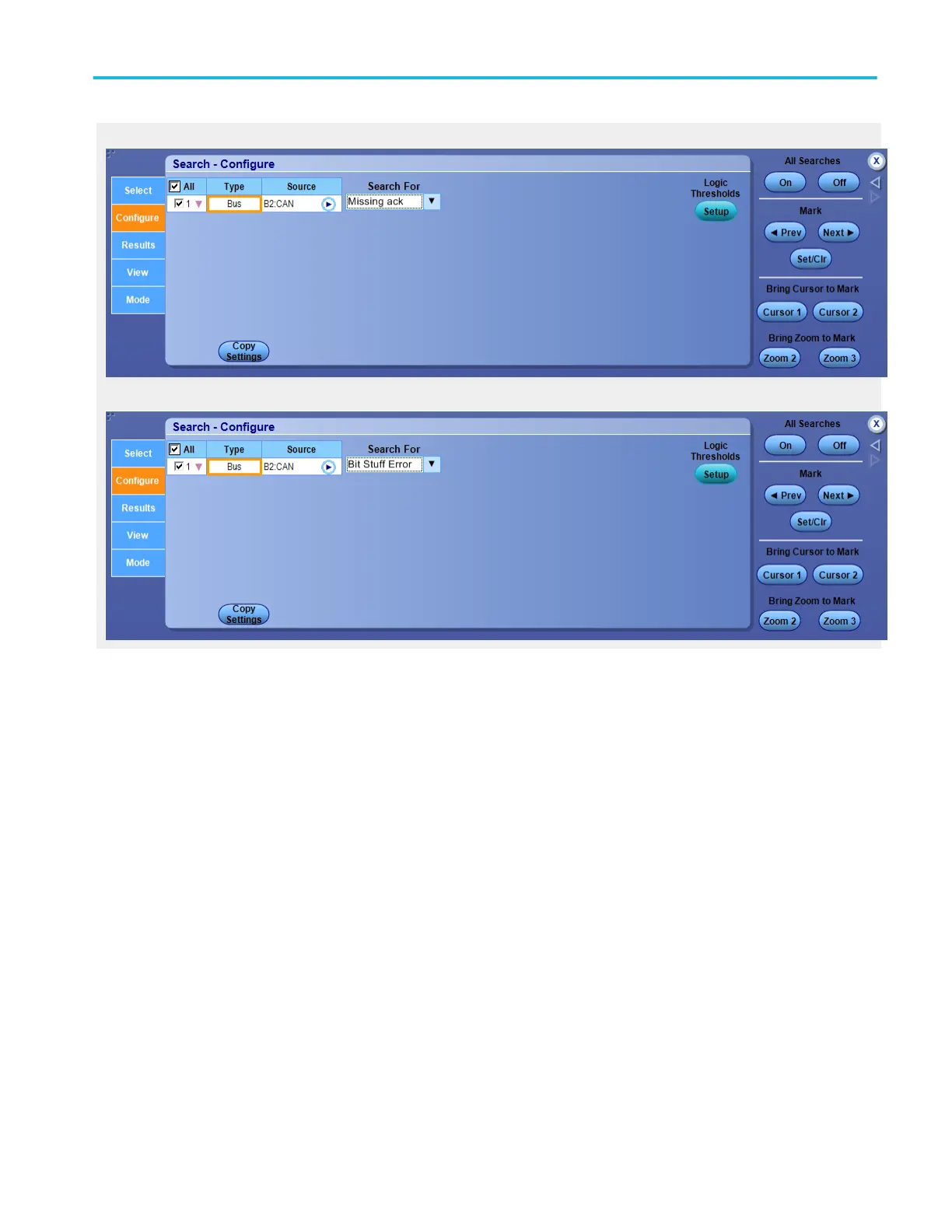

Search for missing ack

Search for bit stuff error

Set up LIN search parameters

After setting up an LIN bus, go to the Analyze menu, select Search, and then select the Bus trigger type; then open the Configure

tab.

Overview

Use the controls to set up the LIN Bus parameters.

To use

For information on the controls, click the buttons.

■

Type

■

Source

■

Copy Settings

■

Search Parameters

■

Search / Mark Controls

Analyzing waveforms
