Select the coupling
From the Vertical menu, select Vertical Setup.
Overview. Use the Coupling controls to couple the signal from the attached probe to the instrument.

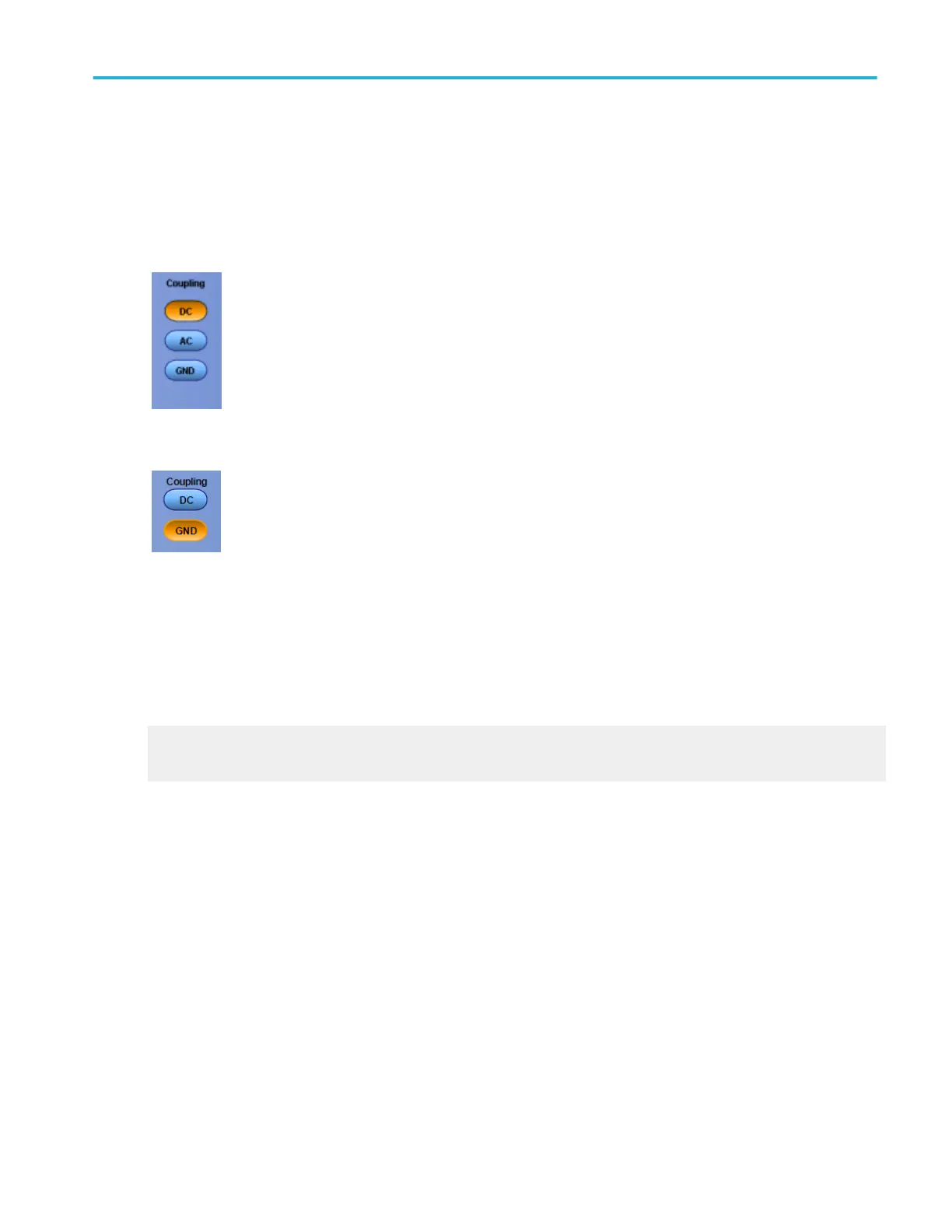

Available controls depend on the instrument model, selected termination, and attached probe. Some example control groups are
shown.
To use.
■
Select DC to display waveforms with AC and DC components.
■
Select AC to display waveforms with AC components.
■
Select GND to display a zero-volt waveform. Use this selection to establish the ground reference point on the display.
What do you want to do next?
Continue to learn about the Vertical Setup controls.
Return to the Vertical Setup control window overview.
