NOTE. The bandwidth readout displays in reverse video if the bandwidth is not what you selected. If you want the bandwidth to
be what you selected, make sure that the sample rate is high enough to enable Digital Filters (DSP). One way to enable DSP is
to select Force Constant Sample Rate.
NOTE. The features and options that are documented in this online help are available for several instrument models. Your
instrument may not have every feature discussed in this online help.
To use
Use the tabs on the side of the control window to select the channel you want to change. The controls for each channel are
independent.
What do you want to do next?
Continue to learn about the Vertical Setup controls.
Set up input channels
NOTE. iCapture is available only on MSO70000C/DX Series instruments and DPO70000DX instruments with option MSOU
installed.
From the Vertical menu, select Vertical Setup.
To use
â–
Click the Analog Input Normal button when you want the instrument to display the channel for the selected tab. Each
channel has a tab.
â–
Click the Digital Input iCapture button when you want the instrument to display analog characteristics of a digital channel.

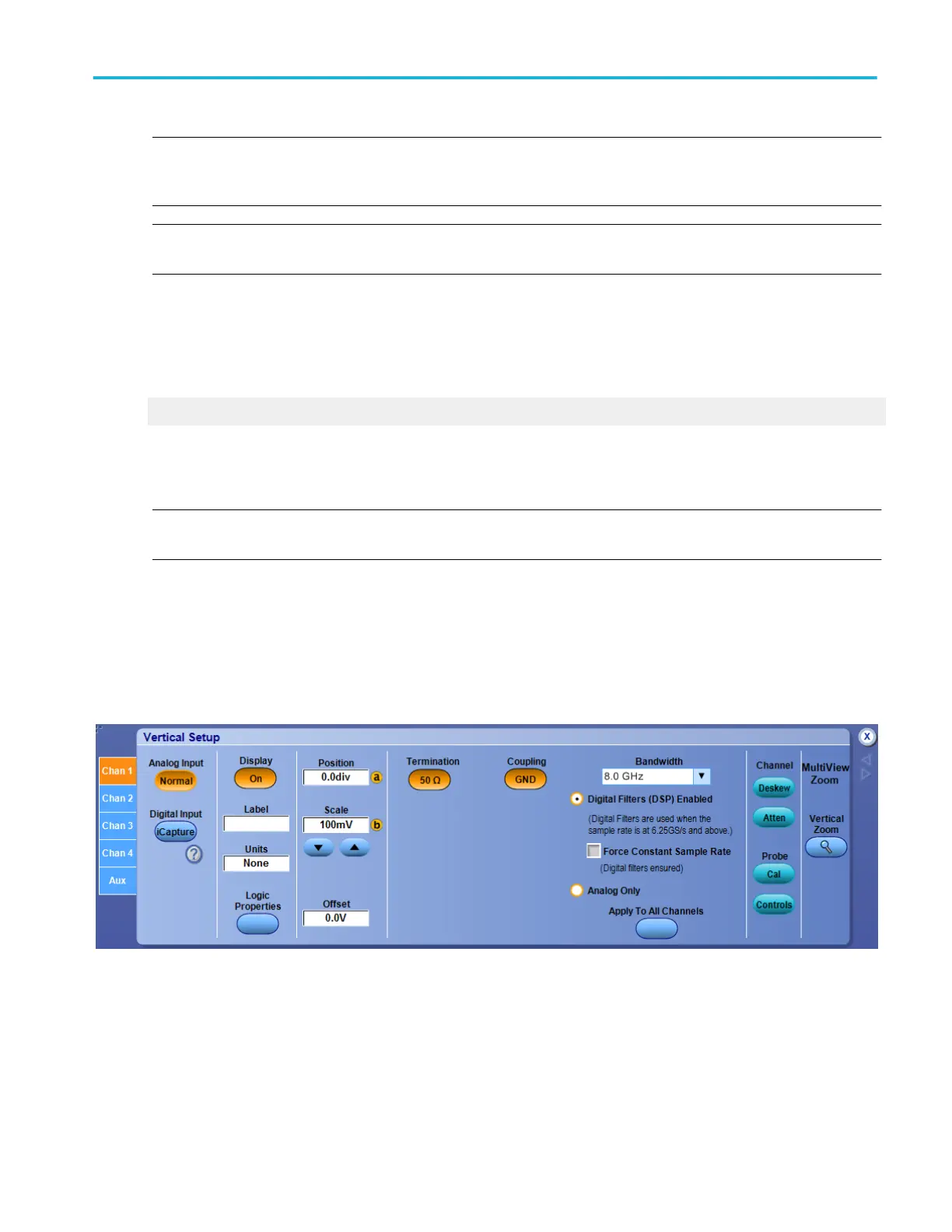

The following screen is captured on MSO70000C/DX Series instruments:
Vertical setups
