Tektronix TBS1072B User Manual

Key points

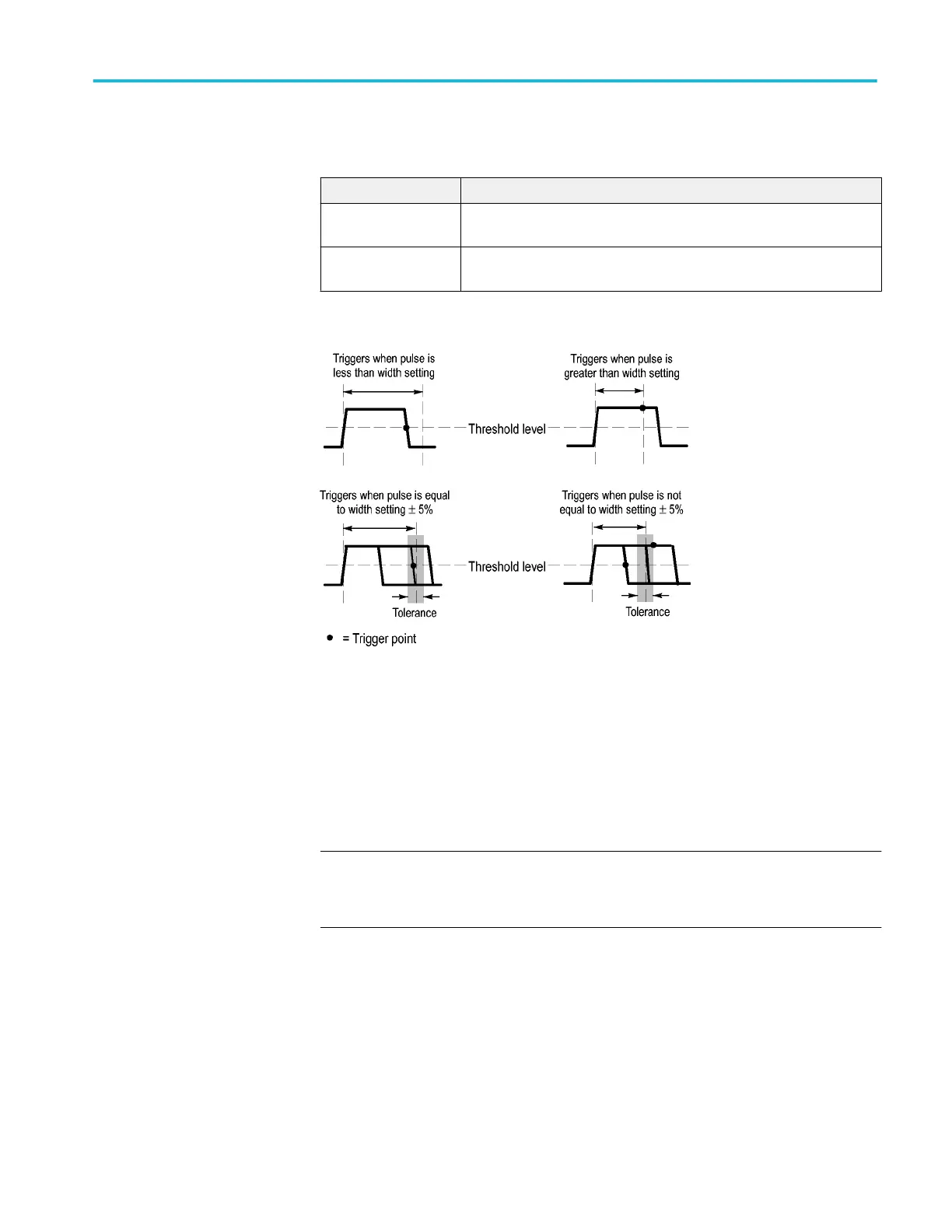

Trigger When. The pulse width of the source must be ≥5 ns for the oscilloscope
to detect the pulse.
When options Details
=
≠
Triggers the oscilloscope when the signal pulse width is equal to or not
equal to the specified pulse width within a ± 5% tolerance
<
>
Triggers the oscilloscope when the source signal pulse width is less than
or greater than the specified pulse width
Refer to the Application Examples chapter for an example of triggering on
aberrant pulses. See Triggering on a specific pulse width on page 42.
Trigger frequency readout
The oscilloscope counts the rate at which triggerable events occur to determine
trigger frequency and displays the frequency in the lower right corner of the
screen.
NOTE. The trigger frequency readout shows the frequency of events the
oscilloscope might consider to be a trigger, and may be less than the frequency of
the input signal in Pulse Width trigger mode.
Reference
TBS1000B and TBS1000B-EDU Series Oscilloscopes User Manual 105

Tektronix TBS1072B Specifications

General

Bandwidth	70 MHz
Channels	2
Sample Rate	1 GS/s
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Math Functions	Add, Subtract, Multiply, Divide, FFT
FFT	Yes
Input Coupling	AC, DC, GND
Record Length	2.5 k points
Display	7-inch WVGA (800 x 480) LCD
Trigger Modes	Edge, Pulse Width, Video
Automatic Measurements	Frequency, Period
Interfaces	USB 2.0
Rise Time	<= 5 ns
Input Impedance	1 MΩ ± 2%
Maximum Input Voltage	300 V (DC + peak AC)
Probe	1:1 and 10:1 passive probes included
Power Supply	100 to 240 V ±10%, 50/60 Hz
