Tektronix TBS1072B User Manual

TPP0051 TPP0101 and TPP0201 series 10X passive probes
information
The TPP0051, TPP0101 & TPP0201 Series 10X Passive Probes are high
impedance, passive probes with 10X attenuation. They are designed for use with
TBS1000B oscilloscopes. These oscilloscopes have 20 pF of input capacitance.
The compensation range of these probes is 15 to 25 pF.
The probes have no user- or Tektronix-serviceable parts.
WARNING. Do not float the TPP0051, TPP0101 and TPP0201 probes on any
oscilloscope.

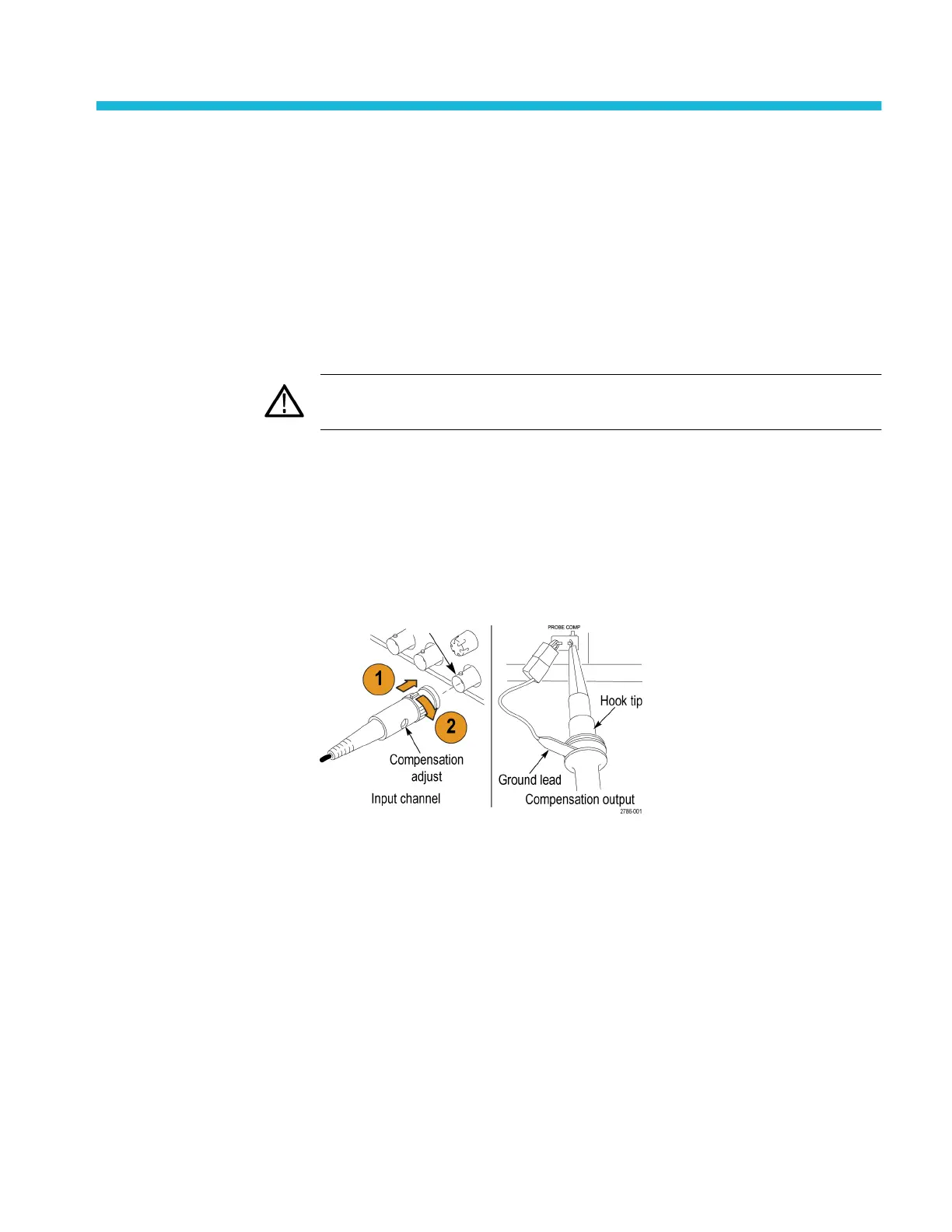

Connecting the probe to the oscilloscope
Connect the probe as shown in the illustrations below.
TBS1000B and TBS1000B-EDU Series Oscilloscopes User Manual 123

Tektronix TBS1072B Specifications

General

Bandwidth	70 MHz
Channels	2
Sample Rate	1 GS/s
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Math Functions	Add, Subtract, Multiply, Divide, FFT
FFT	Yes
Input Coupling	AC, DC, GND
Record Length	2.5 k points
Display	7-inch WVGA (800 x 480) LCD
Trigger Modes	Edge, Pulse Width, Video
Automatic Measurements	Frequency, Period
Interfaces	USB 2.0
Rise Time	<= 5 ns
Input Impedance	1 MΩ ± 2%
Maximum Input Voltage	300 V (DC + peak AC)
Probe	1:1 and 10:1 passive probes included
Power Supply	100 to 240 V ±10%, 50/60 Hz
